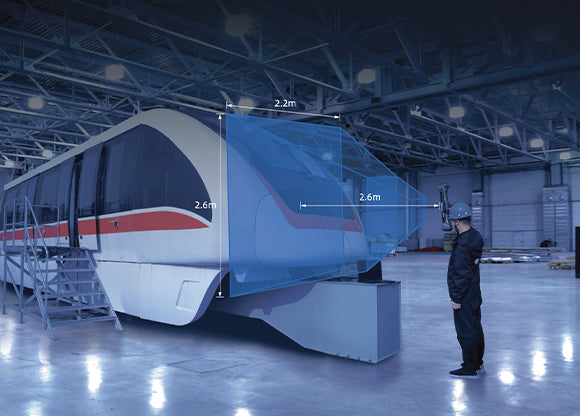

2.6 × 2.2 m field of view with scanning distance up to 2.6 m
WIRELESS METROLOGY 3D SCANNER
Wireless metrology for large parts
Wireless handheld blue-laser metrology 3D scannerScanner type
Marker-supported handheld scanningStandalone scanning workflow
50 blue laser linesLaser pattern
Up to 4,600,000 points/sMaximum scan speed
Guided configuration
Configure the scanner, software, training, and coverage together.
FreeScan UE Nova is a wireless blue-laser metrology scanner built for vehicle bodies, large castings, turbines, rail equipment, ship structures, and other assets where a conventional handheld field of view requires too many passes.
Fifty laser lines capture up to 4,600,000 points per second across a field of view as large as 2.6 × 2.2 m. Near, Standard, and Far working ranges let the operator adapt to confined areas or stand as far as 2.6 m from a large surface. Marker-supported scanning delivers 0.072 mm accuracy, while integrated video photogrammetry uses a calibration rod for real-time marker verification and volumetric accuracy of 0.072 + 0.012 mm/m without coded targets.
FreeScan Trak software is included for scan setup, intelligent resolution, data-quality review, mesh processing, and full-size inspection. The separate Trak Nova upgrade is only for eligible existing UE Nova owners and adds dynamic tracking and marker-free scanning. Upgrade contents, serial eligibility, and coverage are confirmed in the configured quote.
Select the software, training, and protection needed for the intended workflow. Your choices carry into the recommendation request for technical review.
Configuration
Build the system you need.
Select any optional protection, software, accessories, and training.
Configured total$50,400.00
Core system only
Your selected options will be prefilled on the recommendation and quote form.
Core-system comparison
Understand the differences before configuring.
Model-level differences are separated from compatible software, services, and protection.
| Decision point | For new UE Nova buyersFreeScan UE NovaNew buyers who need a wide-range wireless handheld scanner | Trak Nova Upgrade for Existing UE Nova OwnersQualified UE Nova owners who need dynamic tracking |
|---|---|---|
| Purchase purpose | New scanner system | Upgrade an existing eligible UE Nova |
| Wide-range handheld scanning | Included | Uses the existing UE Nova |
| VPG large-volume workflow | Included | Retained in the upgraded system |
| Dynamic tracking | Not included | Added after upgrade |
| Marker-free tracking scan | Not included | Added after upgrade |
| Eligibility | New system quote | Existing UE Nova serial validation required |
| Purchase route | Configure quote | Configure quote |
Package contents
The complete standard system, itemized.
Review the physical system, power and data connections, markers, software access, and documentation before requesting the configuration.
01

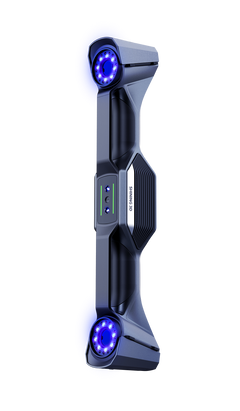

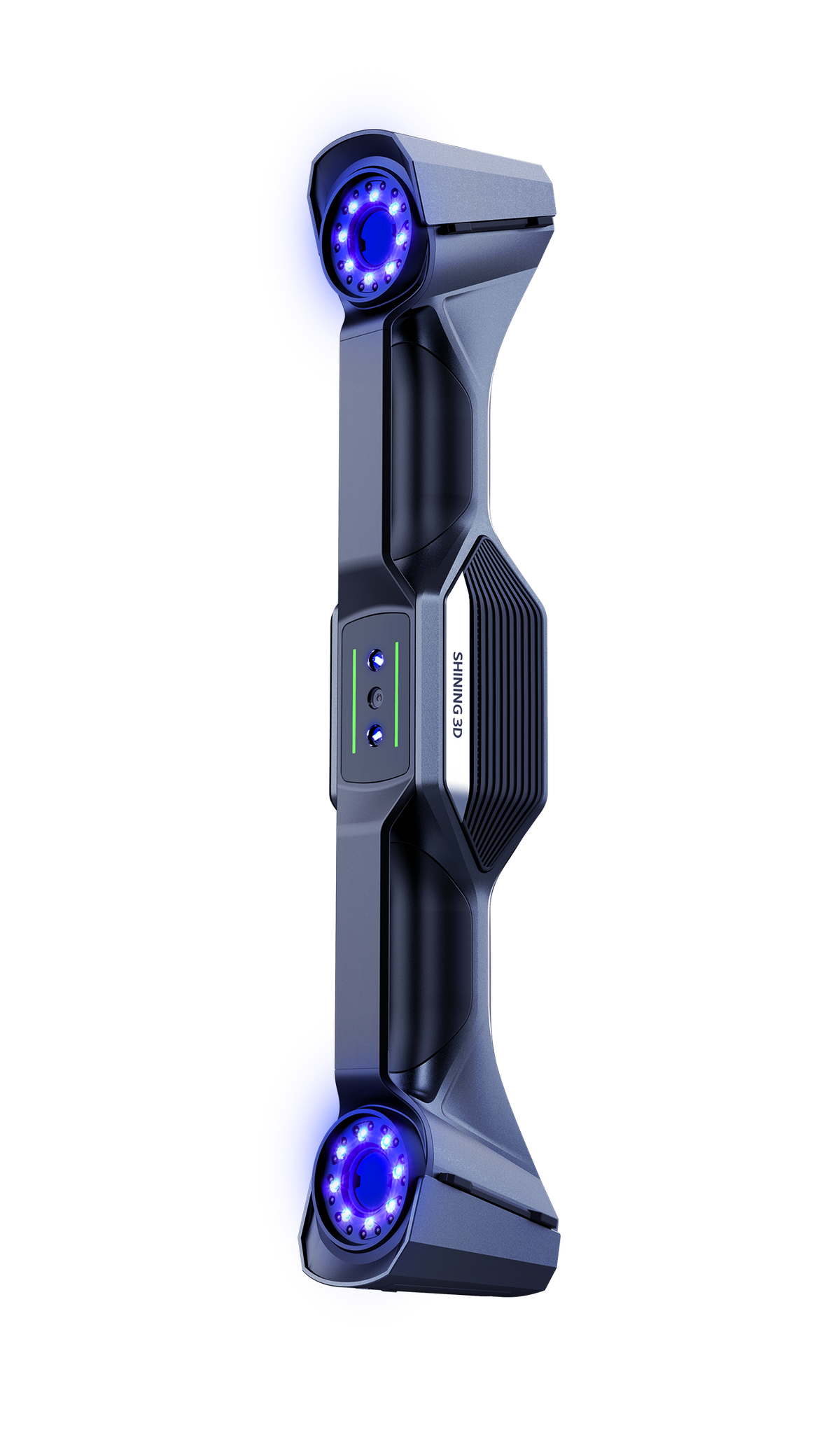

FreeScan UE Nova
Standalone wireless scanner package
- FreeScan UE Nova scanner
- Included FreeScan Trak software
- Software license dongle
- VPG calibration rod
- Calibration hardware
- Swappable battery system and charger
- Wireless router and network cable
- Fiber-optic wired connection components
- Power adapter and regional power cord
- Outdoor lens filters
02
Trak Nova Upgrade for Existing UE Nova Owners
Upgrade path for a qualified existing UE Nova system
- Trak Nova upgrade package for an eligible existing UE Nova
- Dynamic tracking and marker-free scanning capability after installation
- Serial eligibility, hardware contents, accessories, and coverage confirmed in the configured quote
Manufacturer warranty and standard shipping are included with a new scanner purchase. The base list reflects components identified in official operating documentation. Confirm the current US packing list, quantities, regional plug, calibration items, upgrade kit contents, and warranty coverage before fulfillment. Training, extended protection, markers, FreeProbe devices, and optional software are not included unless selected.
Key features
How the system performs in day-to-day use.
Review the features that affect setup time, repeatability, inspection speed, and output quality.
02

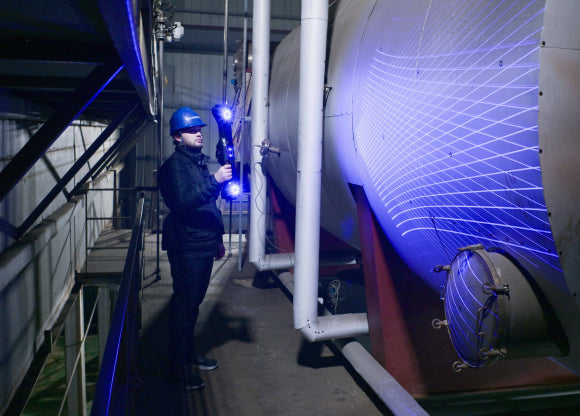

50 blue laser lines and capture speed up to 4,600,000 points/s
03

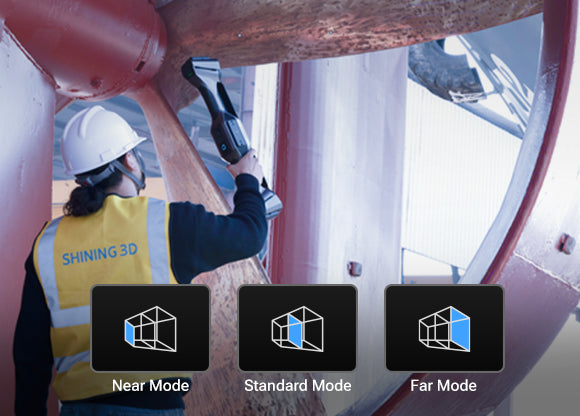

Near, Standard, and Far working ranges for changing site conditions
04

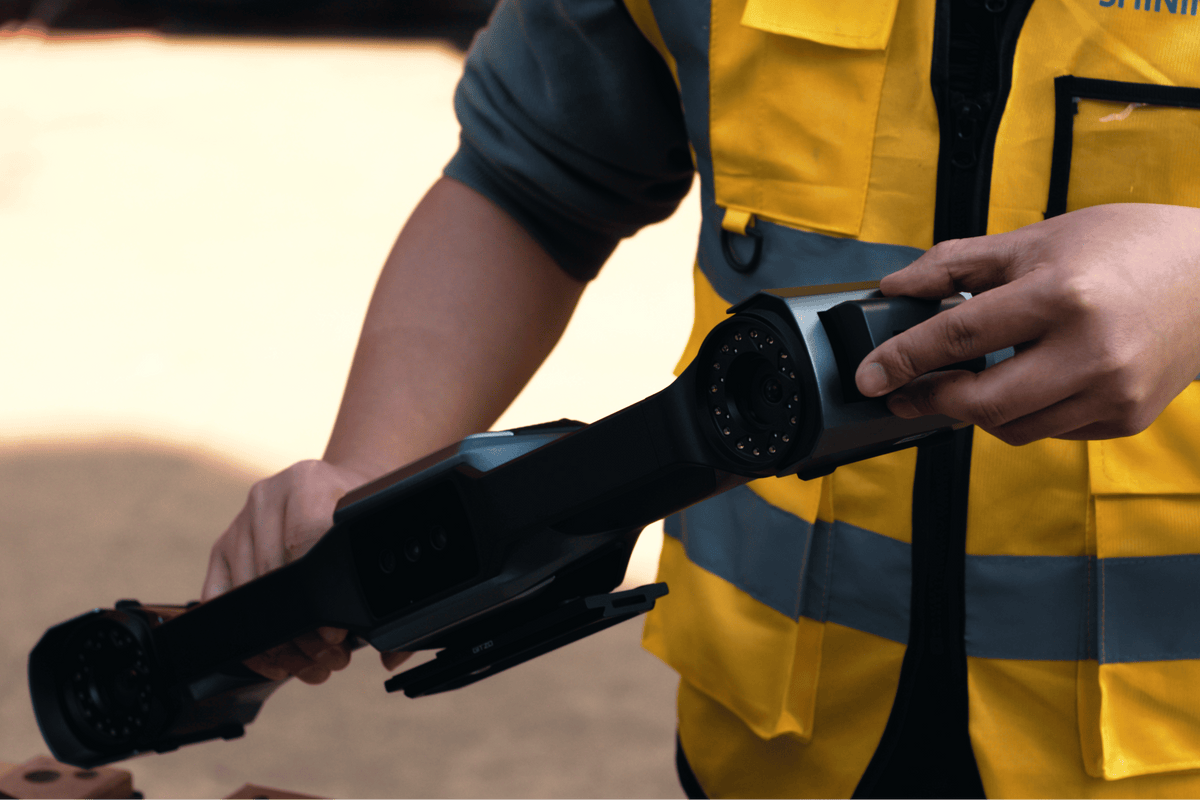

Wireless operation with swappable batteries or fiber-optic wired connection
05

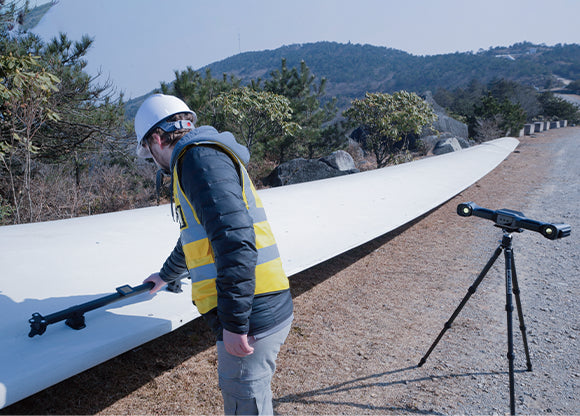

Integrated VPG with calibration-rod marker verification
06

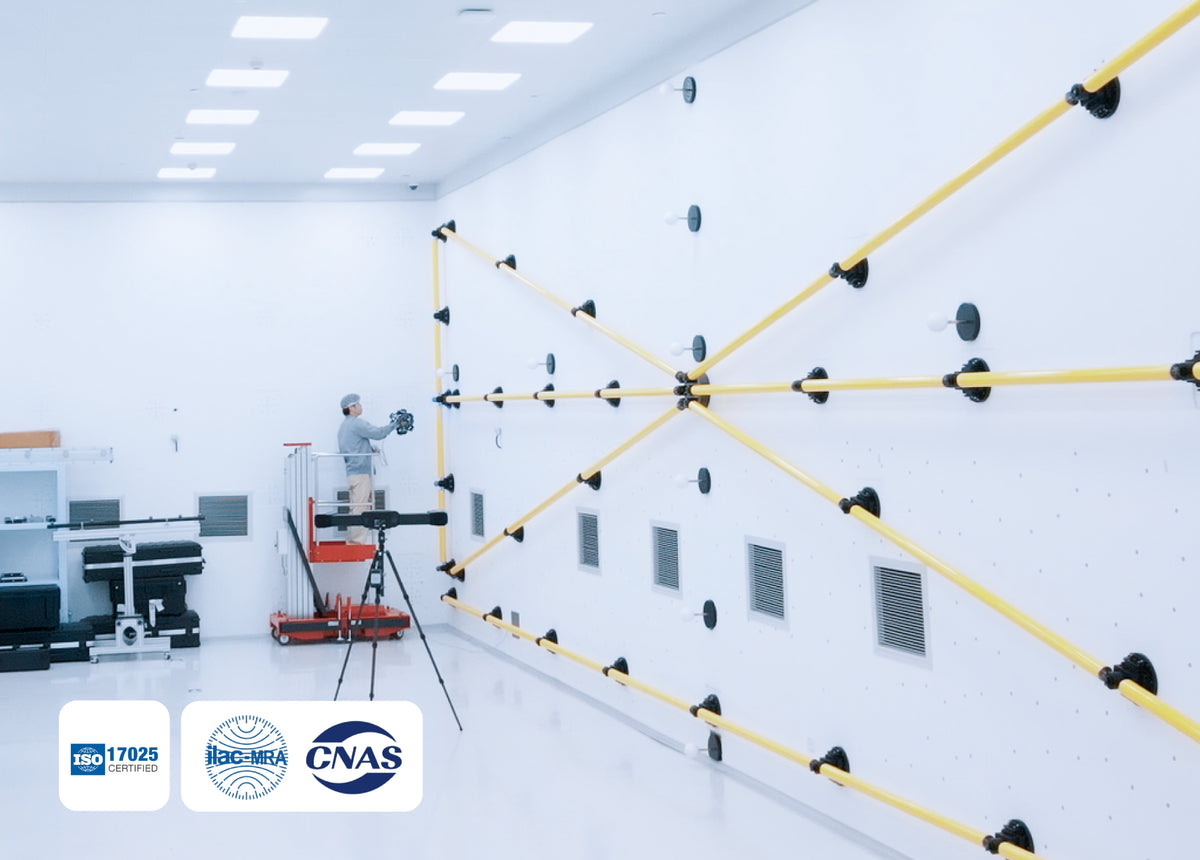

0.072 mm accuracy with traceable metrology acceptance testing
07

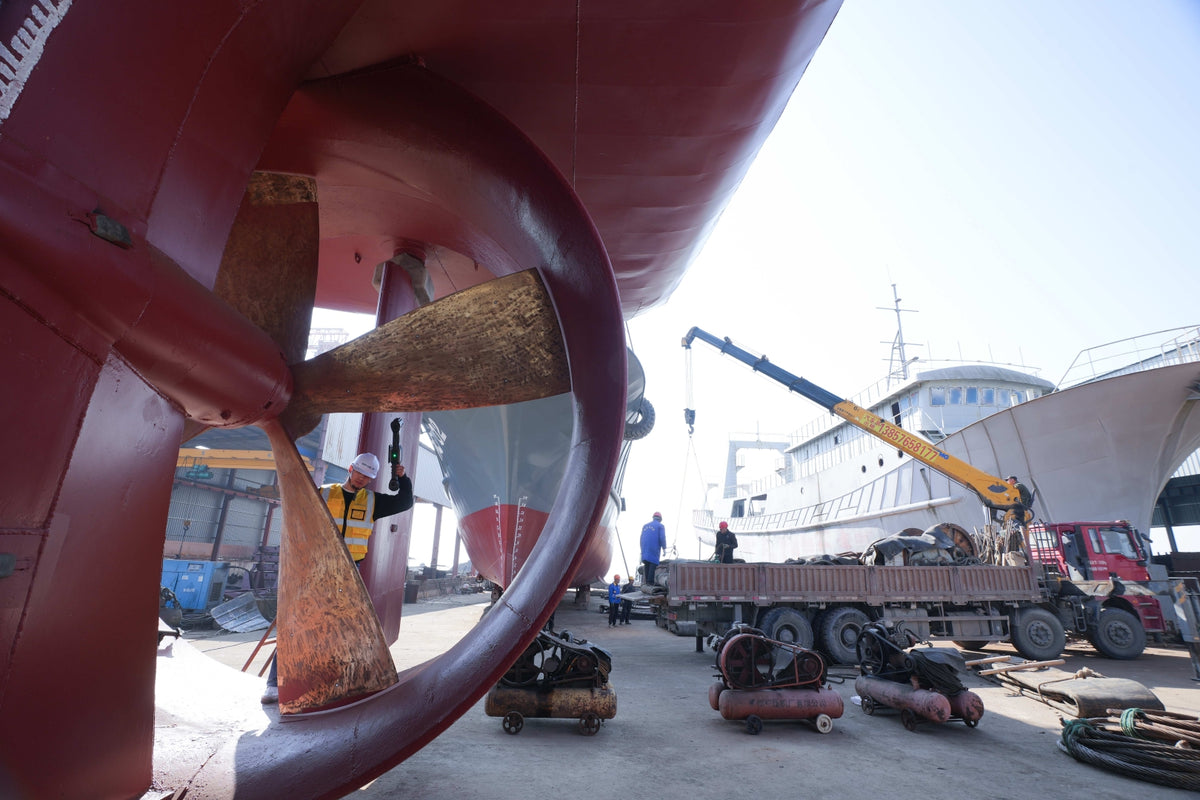

Reliable capture of normal, dark, and reflective industrial surfaces
08

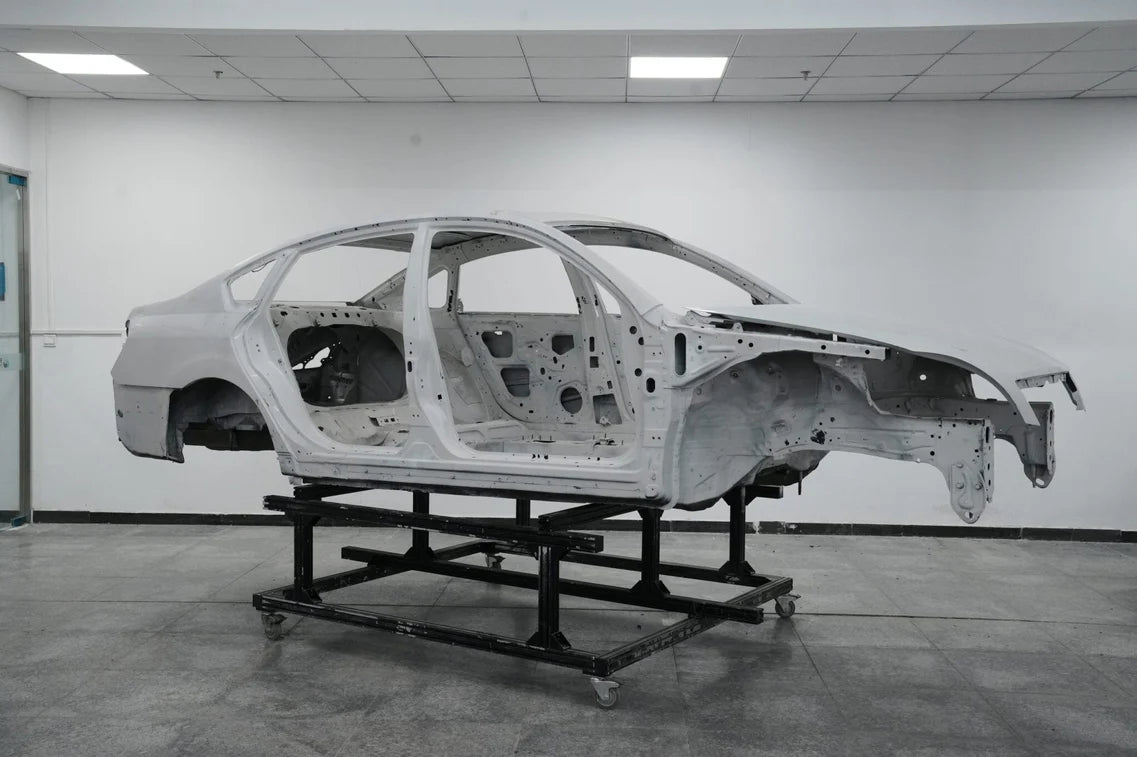

Included FreeScan Trak software with intelligent resolution and inspection tools
Complete measurement workflow
From automated capture to inspection-ready data.
Follow the workflow from repeatable capture through processing, inspection, and reporting.
Review technical specifications →Application fit
Where this system fits best.
Review the application environments where automation, accuracy, and repeatability create the clearest advantage.
01

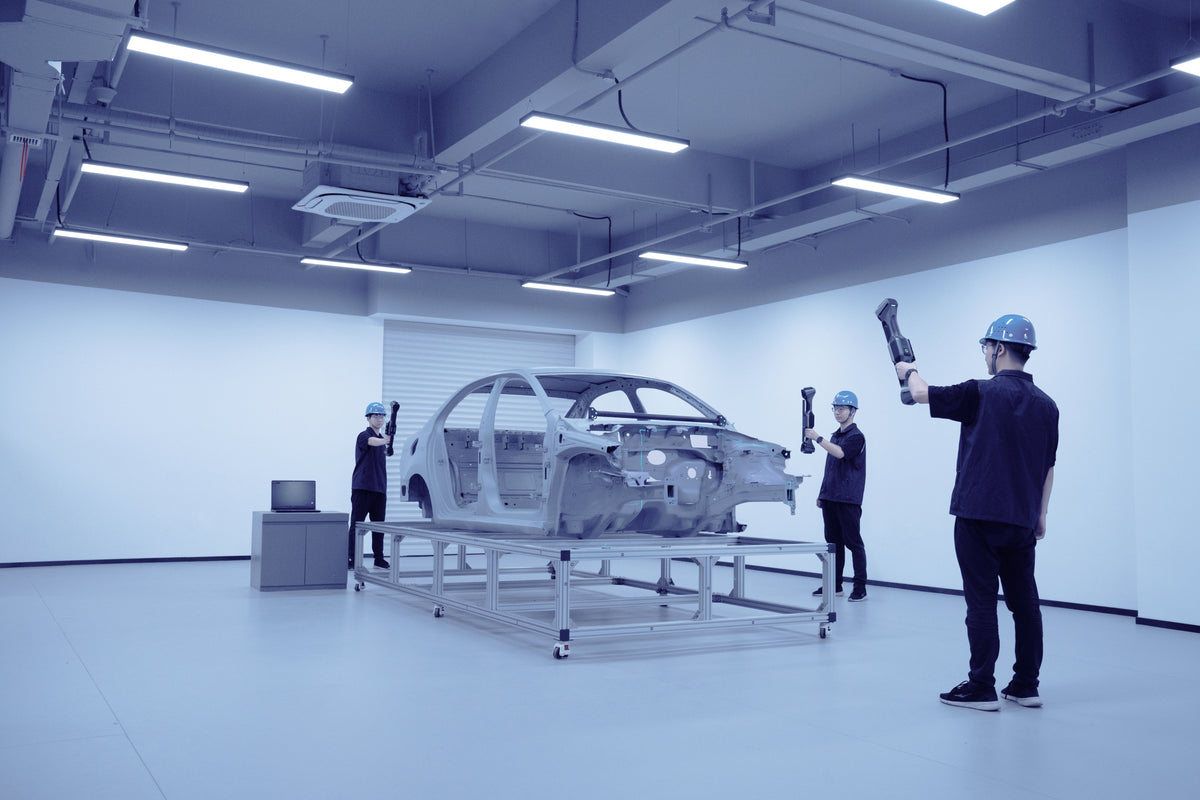

Automotive body and sheet-metal inspection
02
Rail vehicles and transportation structures
03

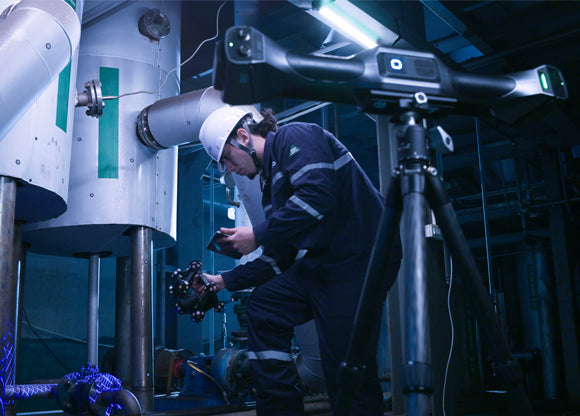

Turbines, pipelines, and energy assets
04

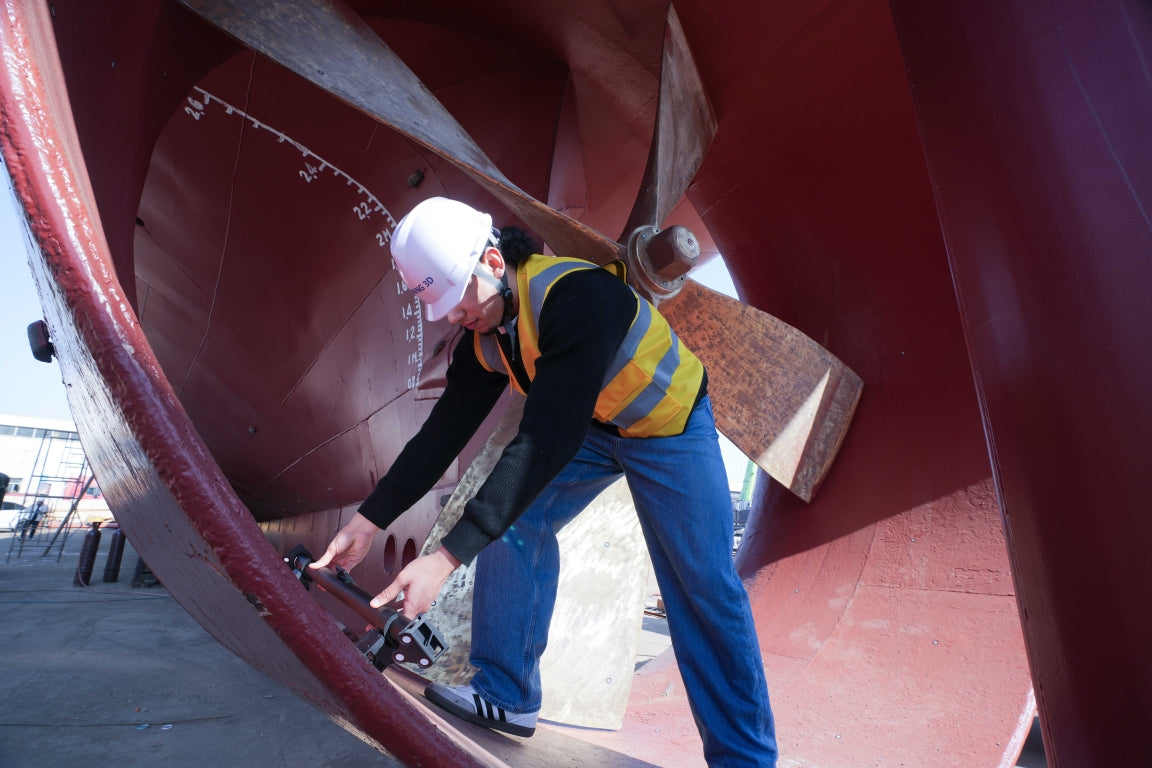

Ship structures and marine components
Product media
Inspect the equipment and included system visually.
Product detail
Examine the system from every angle.
Review the scanner, turntable, accessories, interfaces, and physical setup before selecting a configuration.

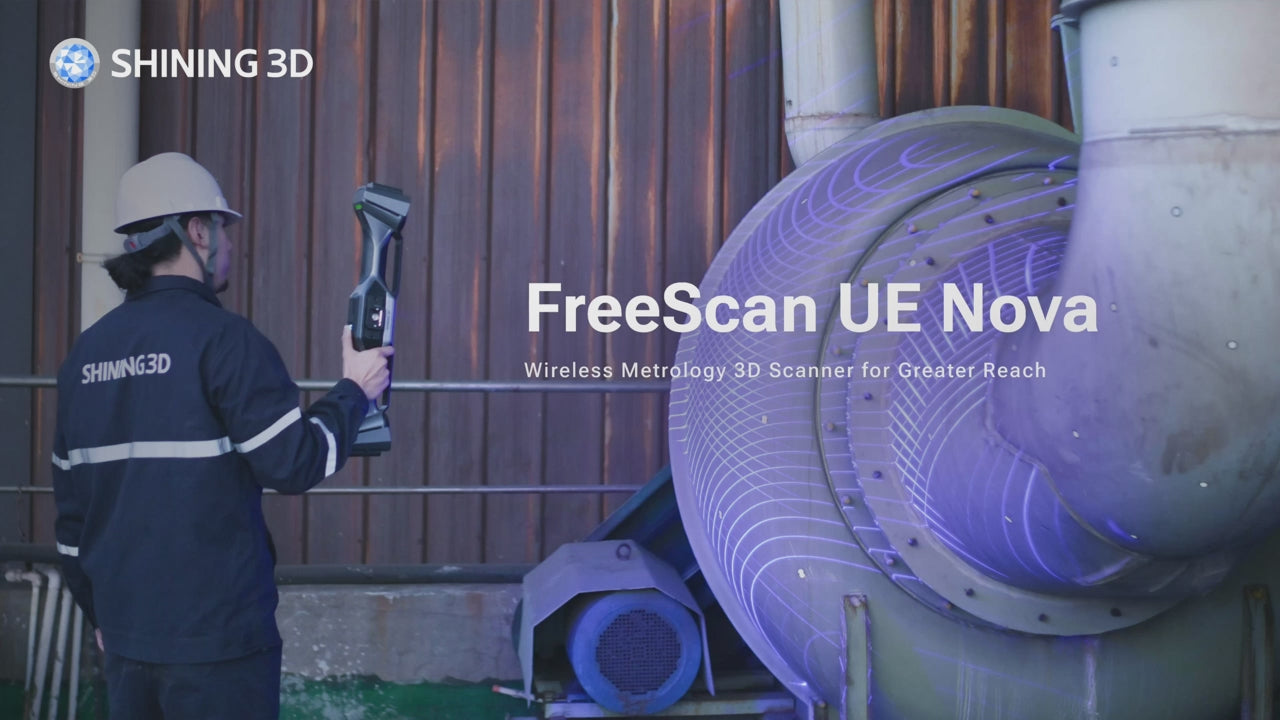

Video library
Watch real scanning and inspection workflows.
Use the case studies, demonstrations, and tutorials to review the workflow from capture through final output.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Check the specifications before purchase.
Confirm accuracy, field of view, point distance, capture system, outputs, standards, and workstation requirements.
Scanner typeWireless handheld blue-laser metrology 3D scanner
Standalone scanning workflowMarker-supported handheld scanning
Laser pattern50 blue laser lines
Maximum scan speedUp to 4,600,000 points/s
Accuracy0.072 mm
Volumetric accuracy with VPG0.072 + 0.012 mm/m
Video photogrammetryIntegrated VPG with calibration-rod marker verification; no coded targets required for VPG setup
Maximum field of view2,600 × 2,200 mm
Maximum scanning distance2,600 mm
Near working range300 to 800 mm
Standard working range600 to 1,500 mm
Far working range1,200 to 2,600 mm
Depth of field2,300 mm, from 300 to 2,600 mm
Resolution0.5 to 10 mm
High-speed scanIncluded
Detailed scanIncluded in Near mode
Surface compatibilityNormal, dark, and reflective industrial surfaces
Outdoor scanningSupported with the supplied lens-filter workflow
ConnectionWireless or fiber-optic wired operation
PowerSwappable batteries, external battery, or wired power
Weight1.6 kg
Included softwareFreeScan Trak software with intelligent resolution and full-size inspection tools
Optional Trak Nova upgradeAdds dynamic tracking and marker-free scanning for eligible existing UE Nova systems
Accuracy acceptanceVDI/VDE 2634 Part 3 and ISO 10360; tested in an ISO/IEC 17025 accredited laboratory
CertificationsCE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, and TISAX
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Not specified | Windows 11 Professional 22H2, 64-bit |
| Processor | Not specified | 13th Gen Intel Core i7-13700H or above; AVX support required |
| Memory | Not specified | 64 GB or more DDR5, dual-channel |
| Graphics | Not specified | NVIDIA GeForce RTX 4060 Laptop GPU or above |
| Graphics memory | Not specified | 8 GB or more VRAM |
| CUDA requirement | Not specified | NVIDIA GPU with at least 1,280 CUDA cores |
| Interface | Not specified | USB 3.0 |
SHINING 3D publishes these as recommended requirements and does not provide a separate minimum. Wireless operation uses a router connected to the workstation by network cable.
Interactive results
Review scanned models.
Select a model to load the interactive viewer, or open it directly on Sketchfab.
Optional interactive preview
Large Casting Part
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Truck Compartment
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
