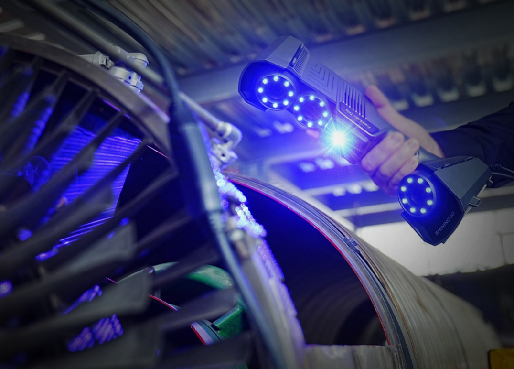

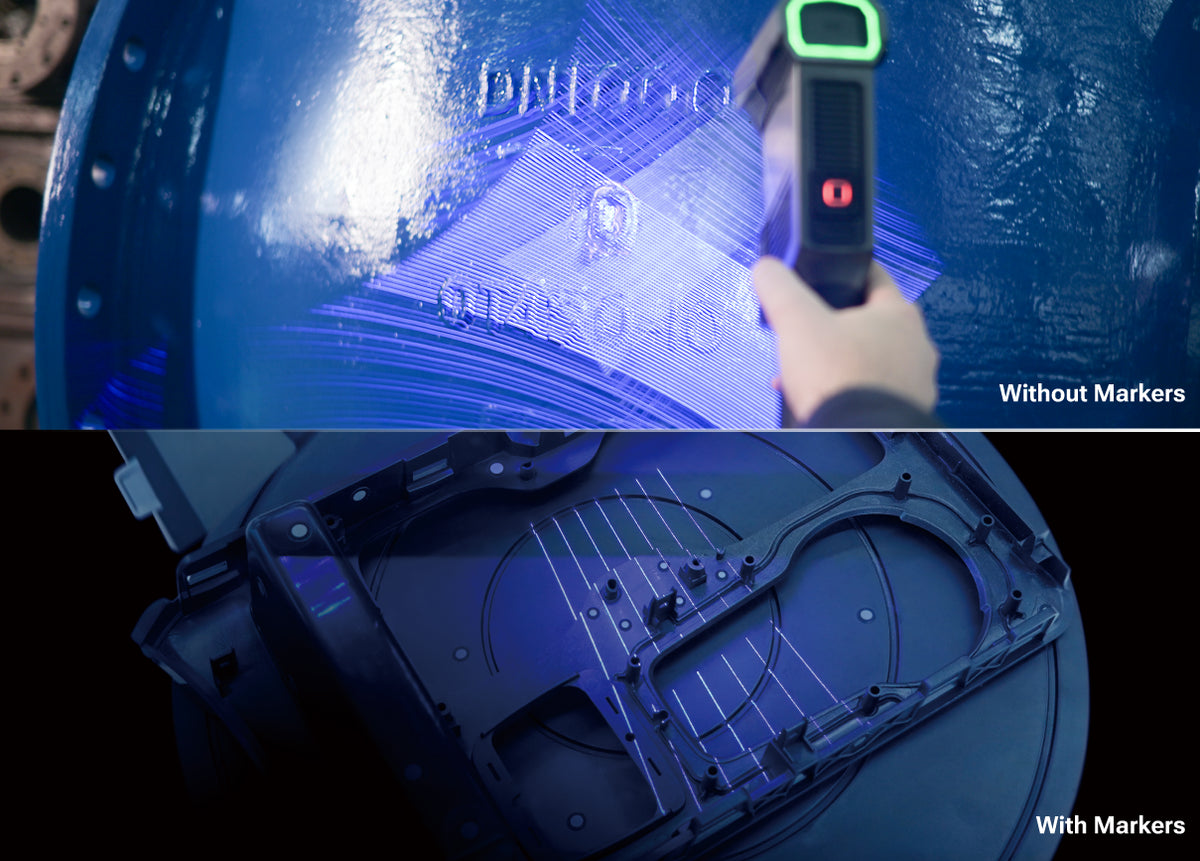

98-line marker-free scanning for feature-rich geometry
METROLOGY 3D SCANNER
Marker-free speed. Metrology-grade accuracy.
Wired handheld laser 3D metrology scannerScanner type
High Speed, Deep Hole, Detailed, and No MarkersScan modes
26 lines; 26 lines or single line; 7 parallel lines; 98 linesLaser patterns
Up to 3,010,000 points/sMaximum scan speed
System architecture
Configure the complete measurement workflow.
FreeScan Trio is a wired handheld metrology scanner built for fast capture of industrial parts, vehicle bodies, tooling, and large assemblies. Its 98-line mode can track feature-rich geometry without markers, while 26-line, 7-line, and single-line modes cover high-speed scanning, fine detail, and recessed features.
For accuracy-critical work, marker-based modes deliver up to 0.02 mm accuracy. Integrated video photogrammetry improves large-part volumetric accuracy to 0.02 + 0.015 mm/m without coded targets. Included FreeScan software supports scan setup, real-time mesh display, data-quality visualization, feature recognition, and export to ASC, OBJ, STL, and PLY.
Choose the scanner-only package, the EXModel Pro bundle for reverse engineering, or the Control X Essentials bundle for inspection. SKYLAB3D reviews the selected configuration, training, and protection plan before issuing the configured quote.
Match the system to the part, tolerance, environment, output, software stack, training need, and protection plan. Every selected option is included in the technical review.
Configuration
Build the system you need.
Select any optional protection, software, accessories, and training.
Configured total$27,999.00
Core system only
Your selected options will be prefilled on the recommendation and quote form.
System comparison
Compare the core system before adding options.
Review the core hardware first, then choose software, training, accessories, and protection.
| Decision point | Best for teams with existing softwareFreeScan TrioTeams with existing inspection or reverse-engineering software | FreeScan Trio with EXModel ProScan-to-CAD and reverse-engineering workflows | FreeScan Trio with Control X EssentialsDimensional inspection and reporting |
|---|---|---|---|
| FreeScan Trio hardware | Included | Included | Included |
| FreeScan software | Included | Included | Included |
| EXModel Pro | Not included | Included | Not included |
| Control X Essentials | Not included | Not included | Included |
| Primary workflow | Scan and export | Reverse engineering | Inspection and reporting |
| Purchase route | Configure quote | Configure quote | Configure quote |
Standard system contents
Every major component, connection, and calibration item.
High-value systems are quoted as a complete operational package; exact quantities and region-specific items are confirmed on the formal quote.
01
FreeScan Trio
Scanner-only package
- FreeScan Trio scanner
- Included FreeScan software
- Software license dongle
- 12 V, 5 A power adapter
- Regional power cord
- Combined power and USB 3.0 aviation cable
02
FreeScan Trio with EXModel Pro
Reverse-engineering package
- FreeScan Trio scanner
- Included FreeScan software
- Software license dongle
- 12 V, 5 A power adapter
- Regional power cord
- Combined power and USB 3.0 aviation cable
- EXModel Pro software entitlement under bundle SKU BD202411.000(US)
03
FreeScan Trio with Control X Essentials
Inspection package
- FreeScan Trio scanner
- Included FreeScan software
- Software license dongle
- 12 V, 5 A power adapter
- Regional power cord
- Combined power and USB 3.0 aviation cable
- Geomagic Control X Essentials software entitlement under bundle SKU BDL00109(US)
Manufacturer warranty and standard shipping are included. The exact software license term, maintenance entitlement, regional plug, calibration contents, and packing quantities must be confirmed against the current US packing list before fulfillment. Training, extended protection, additional markers, and software not named in the selected package are optional.
System advantages
High-value capability without workflow friction.
Evaluate the measurable gains in setup, coverage, portability, capture speed, and confidence across large-volume inspection work.
02

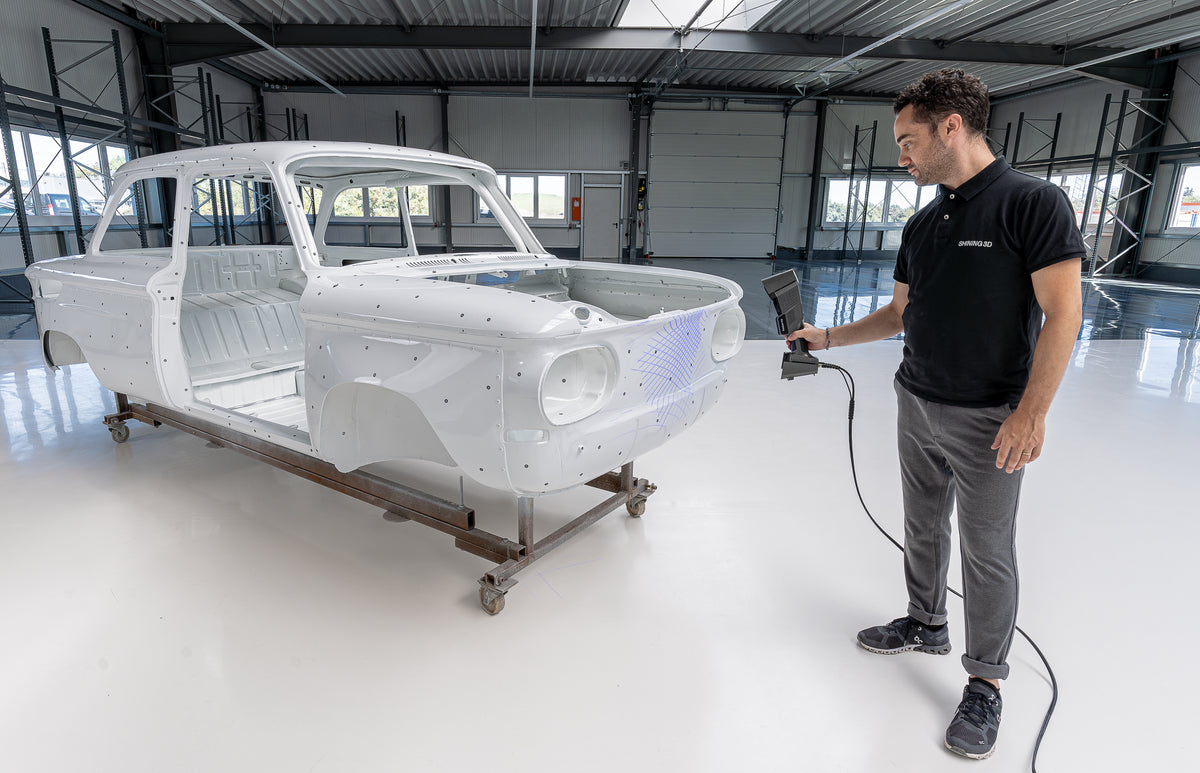

Up to 3,010,000 points per second with three 5 MP cameras
03

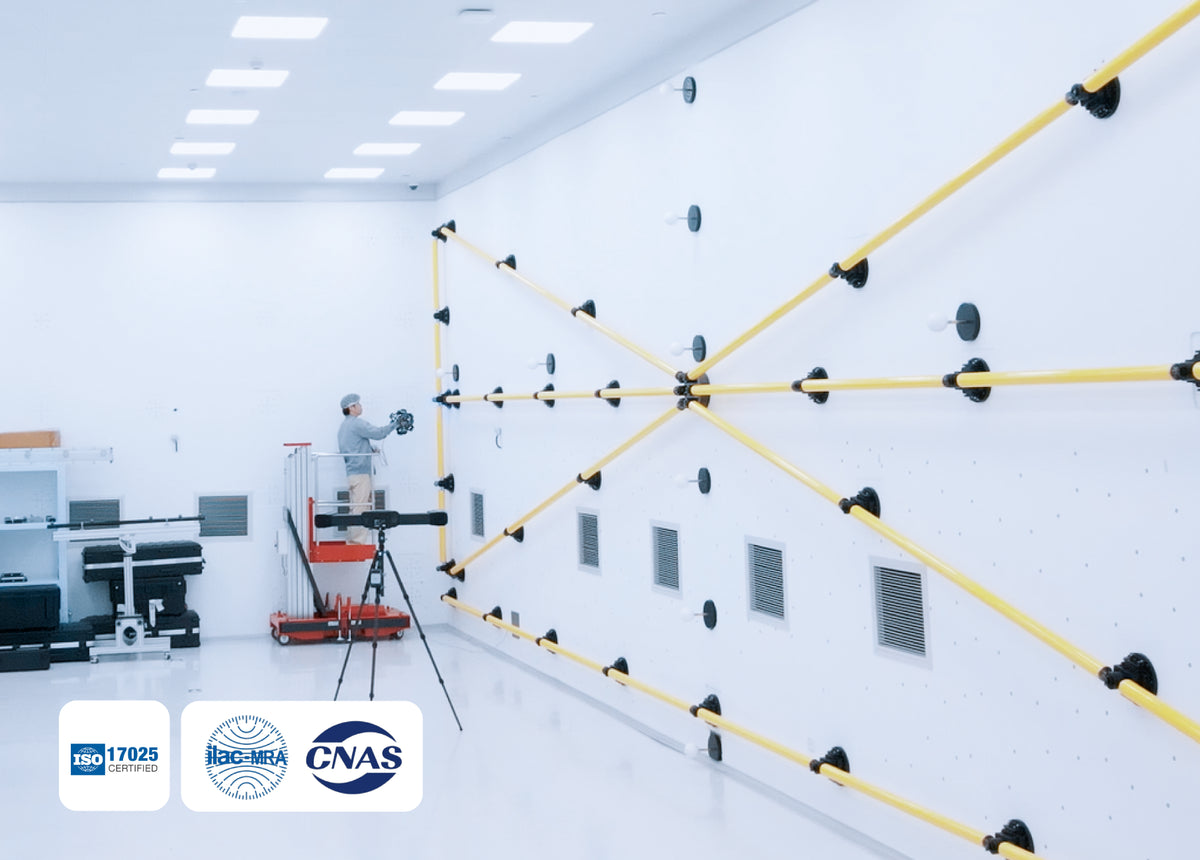

Up to 0.02 mm accuracy in marker-supported modes
04

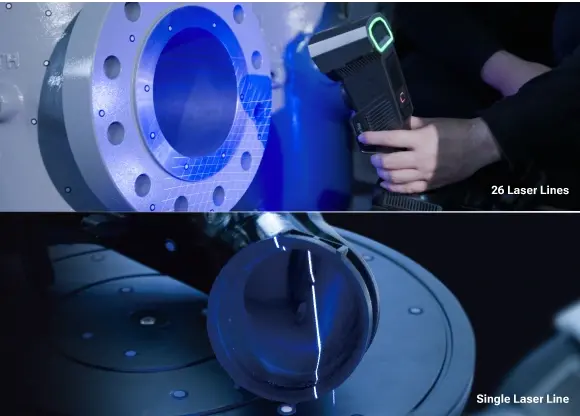

26-line, 7-line, and single-line modes for speed, detail, and deep features
05

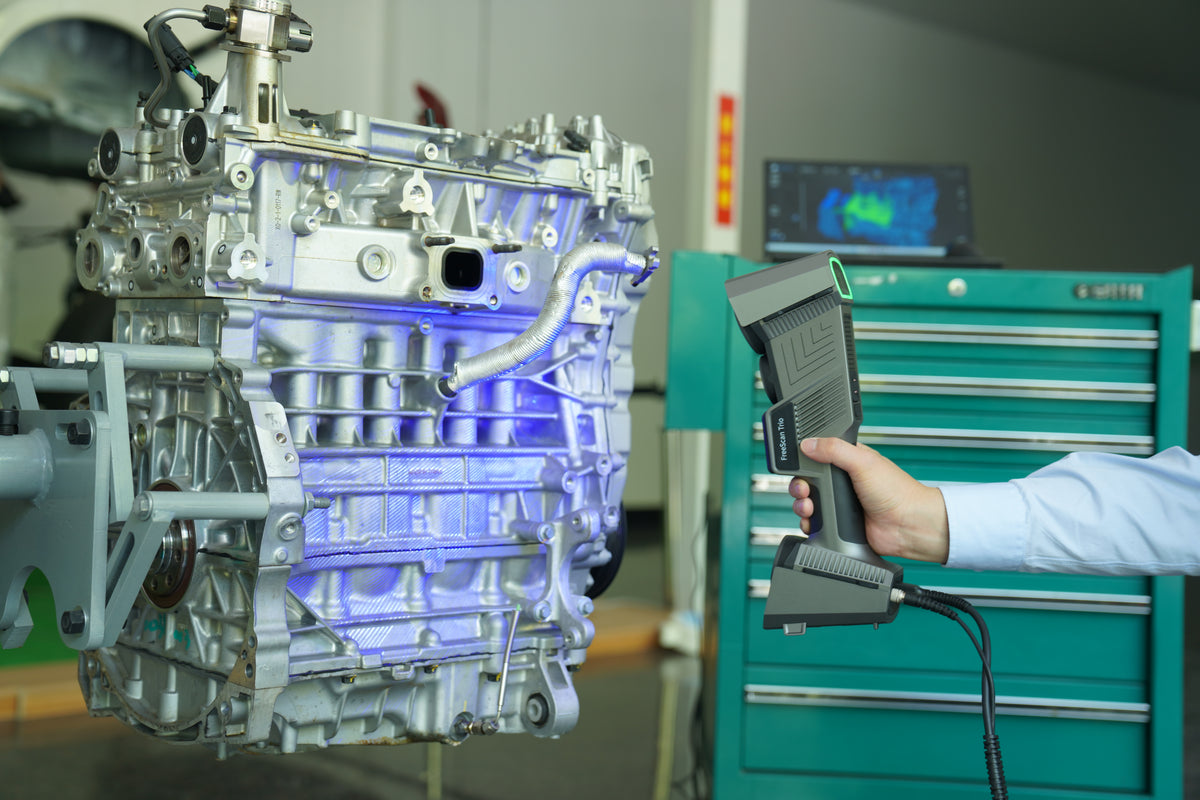

Built-in video photogrammetry for large-part accuracy
06

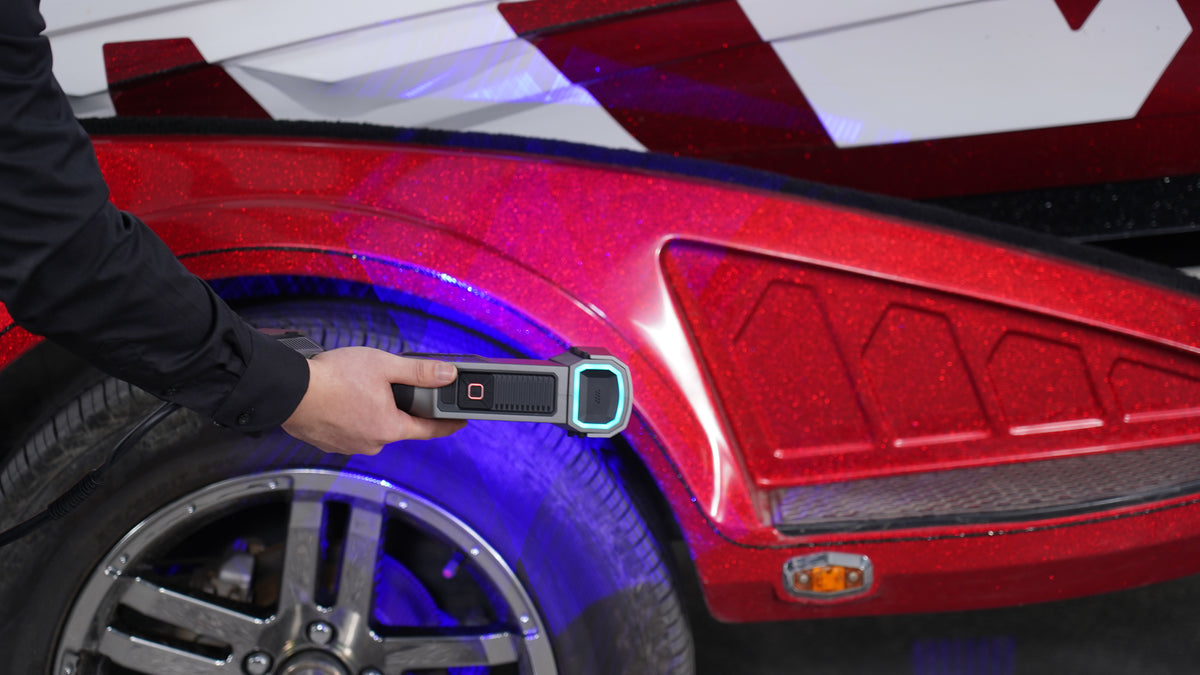

Reliable laser capture on dark and reflective industrial surfaces
07

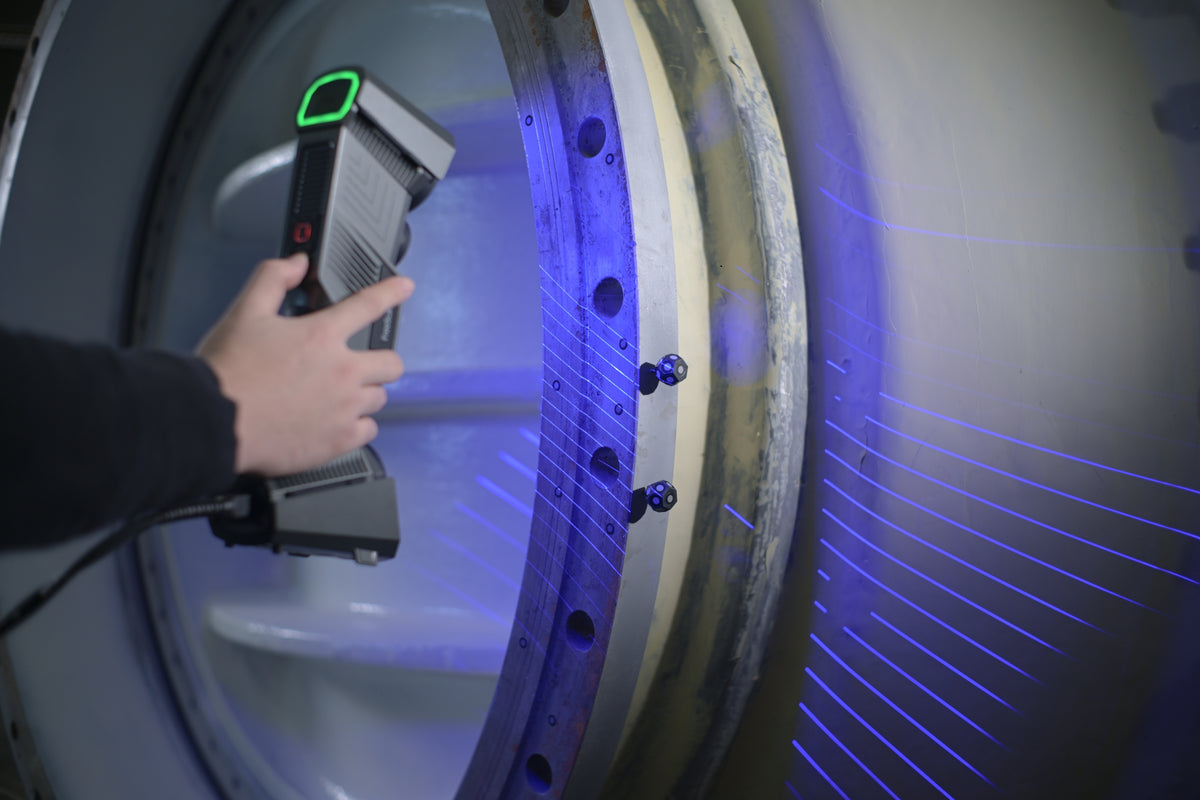

Included FreeScan software with real-time mesh and data-quality tools
Deploy where the work happens
Bring controlled measurement to the part.
Combine mobile setup, optical tracking, wide-range capture, and downstream inspection in one connected operating workflow.
Review engineering specifications →Application proof
Built for parts that do not belong on a fixed CMM.
See how the system adapts to heavy industry, transportation, aviation, energy, and other large-component inspection environments.
01

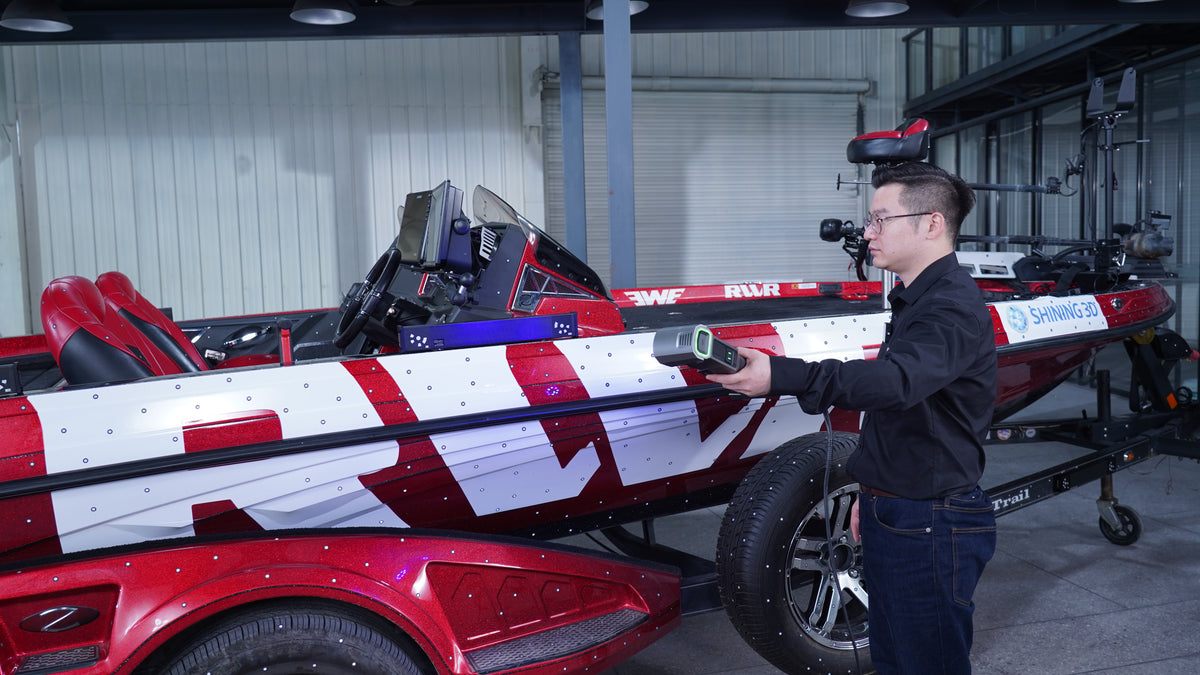

Automotive body, chassis, and component inspection
02
Aerospace structures and engine measurement
03

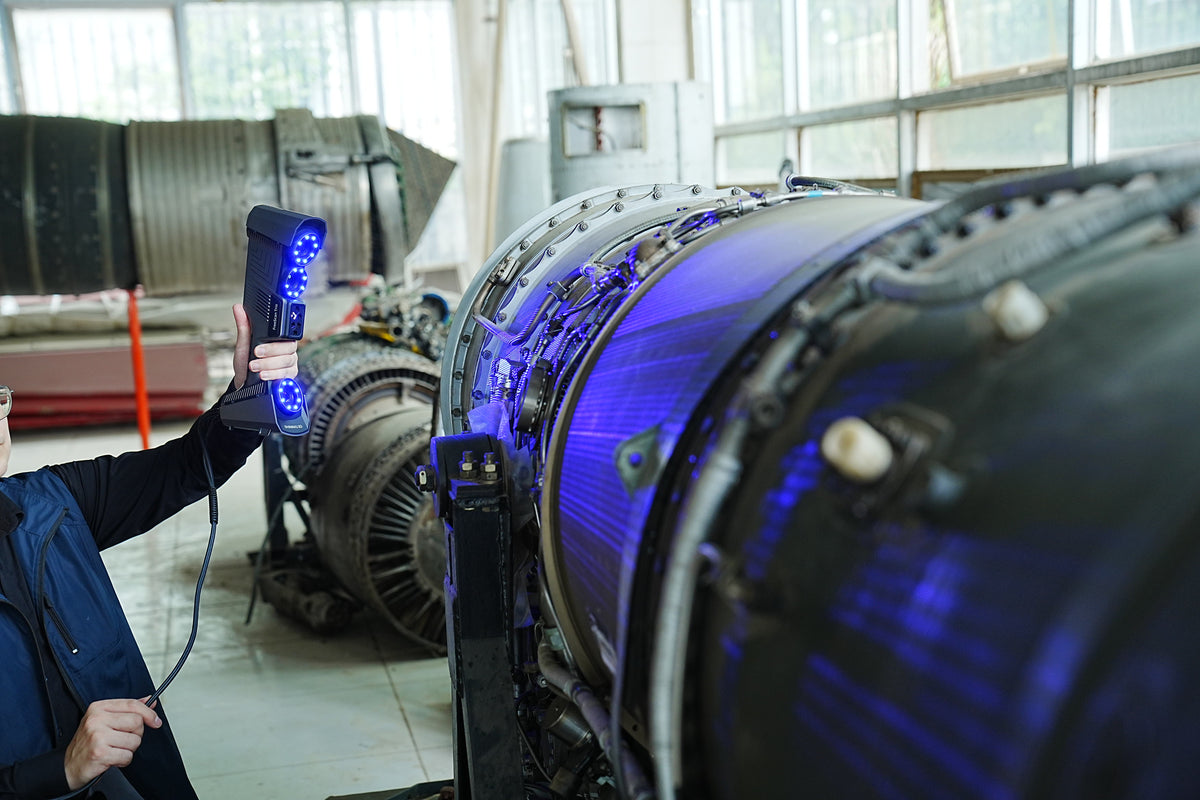

Energy and heavy-industry component inspection
04
Tooling, molds, castings, and forging analysis
Video library
Evaluate the system under real operating conditions.
Move between unboxing, tracking, handheld capture, and application footage without leaving the page.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Technical evidence for engineering and IT.
Review measurement performance, operating envelope, connectivity, and the workstation needed to process the data.
Scanner typeWired handheld laser 3D metrology scanner
Scan modesHigh Speed, Deep Hole, Detailed, and No Markers
Laser patterns26 lines; 26 lines or single line; 7 parallel lines; 98 lines
Maximum scan speedUp to 3,010,000 points/s
Camera systemThree industrial 5 MP cameras
Marker-supported accuracyUp to 0.02 mm
Volumetric accuracy0.02 + 0.03 mm/m
Volumetric accuracy with VPG0.02 + 0.015 mm/m
Maximum field of view650 × 580 mm
Scan depth360 mm
Working distance300 mm in High Speed, Deep Hole, and No Markers modes; 200 mm in Detailed mode
Point distance0.01 to 3 mm
Light sourceBlue laser
Laser safetyClass II, eye safe; less than 1 mW at 450 nm
Dark and reflective surfacesSupported
Data outputASC, OBJ, STL, and PLY
ConnectionUSB 3.0
Power12 V, 5.0 A
Dimensions331 × 120 × 76 mm
Weight985 g
Operating temperature0 to 40 °C
Operating humidity10% to 90%
Accuracy acceptanceVDI/VDE 2634 Part 3 and ISO 10360; tested in an ISO/IEC 17025 accredited laboratory
CertificationsCE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, and TISAX
| Component | Minimum | Recommended |
|---|---|---|
| Operating system | Not specified | Windows 11 Professional 22H2, 64-bit |
| Processor | Not specified | 13th Gen Intel Core i7-13700H or above; AVX support required |
| Memory | Not specified | 64 GB or more DDR5, dual-channel |
| Graphics | Not specified | NVIDIA GeForce RTX 4060 Laptop GPU or above |
| Graphics memory | Not specified | 8 GB or more VRAM |
| CUDA requirement | Not specified | NVIDIA GPU with at least 1,280 CUDA cores |
| Connection | Not specified | USB 3.0 |
SHINING 3D publishes these as the recommended FreeScan Trio workstation requirements. A compatible NVIDIA GPU is mandatory. The scanner connects to the workstation during scanning.
Interactive scan results
Inspect more than one related dataset.
Load the chosen model on demand, with a direct Sketchfab fallback for devices that cannot render the full scene.
Optional interactive preview
Stamping Die Plate
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Automotive Metal Wheel Hub
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Engine
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Casting Part
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
