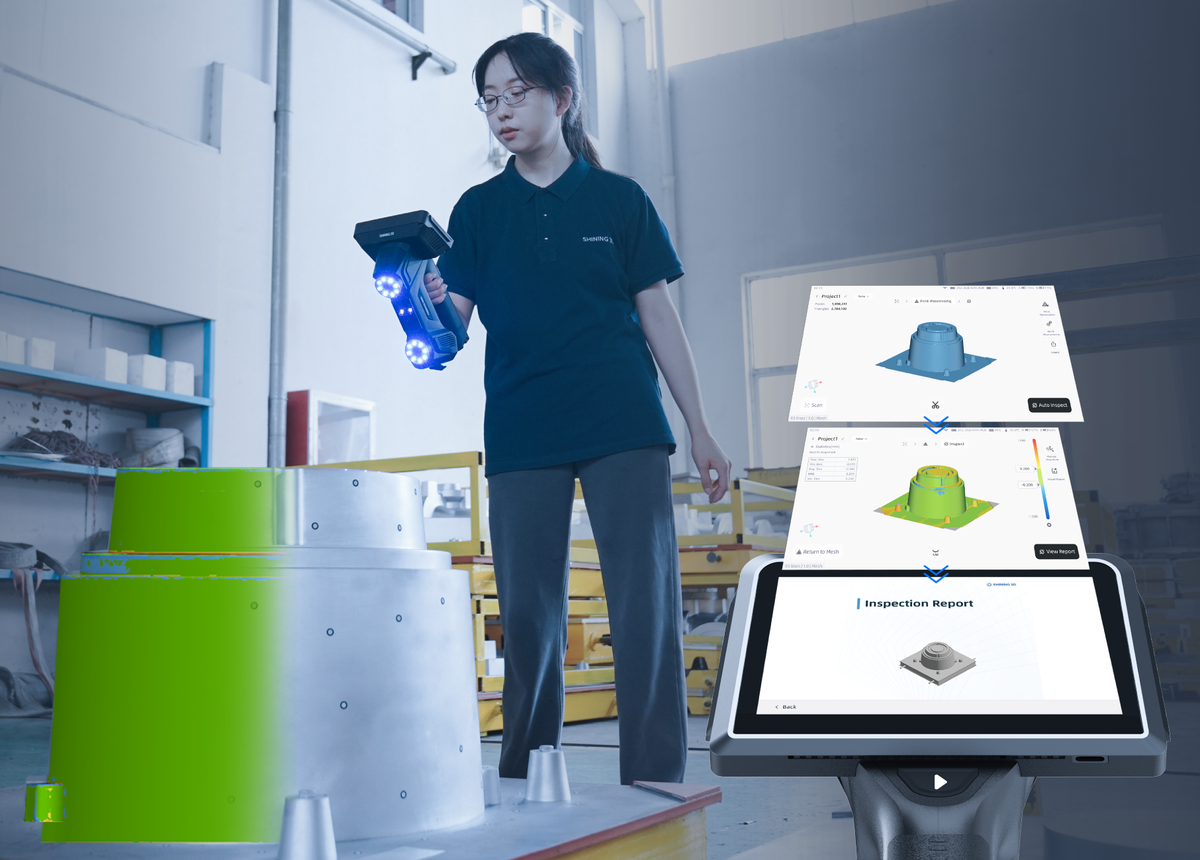

On-device scanning, inspection, and reporting
STANDALONE METROLOGY AND INSPECTION
Scan, inspect, and report wherever the part is
0.02 mm (0.0008 in)Accuracy
0.02 + 0.03 mm/mVolumetric accuracy
0.02 + 0.015 mm/m (0.0008 in + 0.00018 in/ft)Volumetric accuracy with VPG
Up to 7,619,000 points/sScan speed
System architecture
Configure the complete measurement workflow.

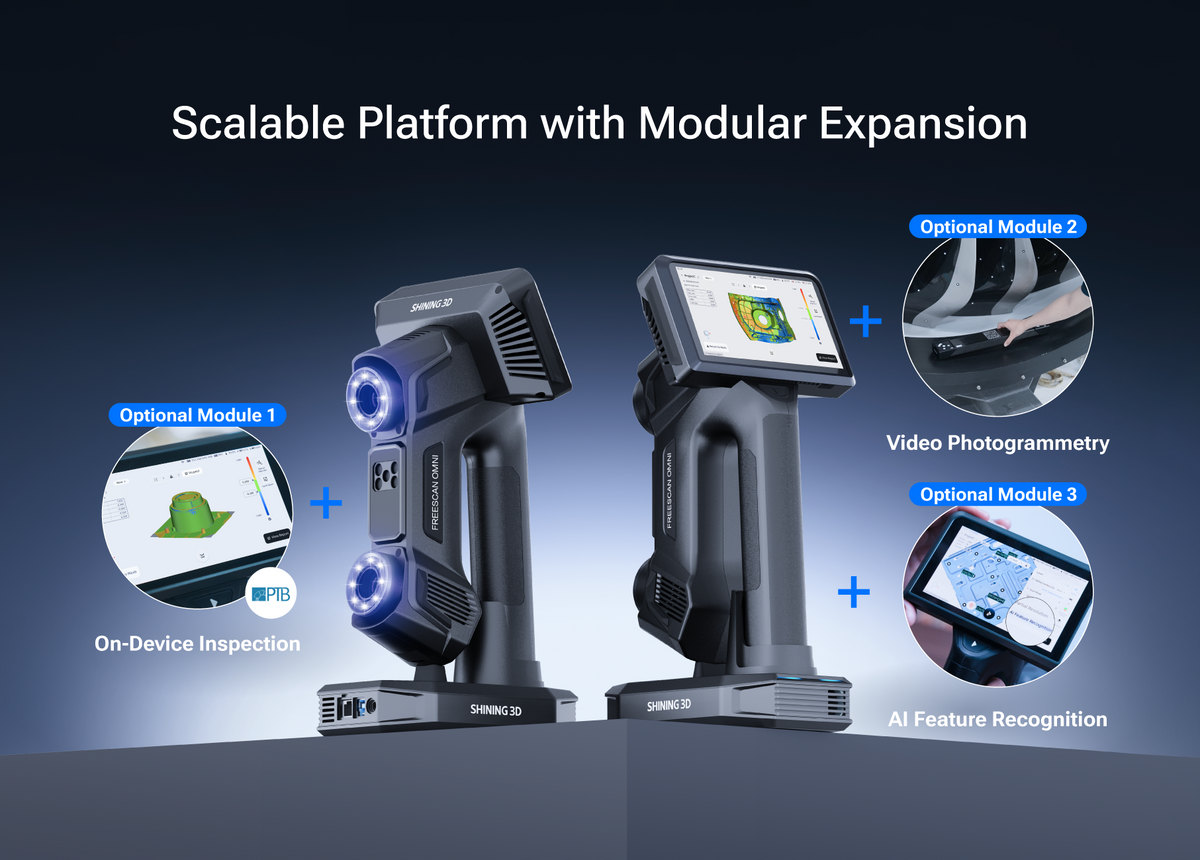

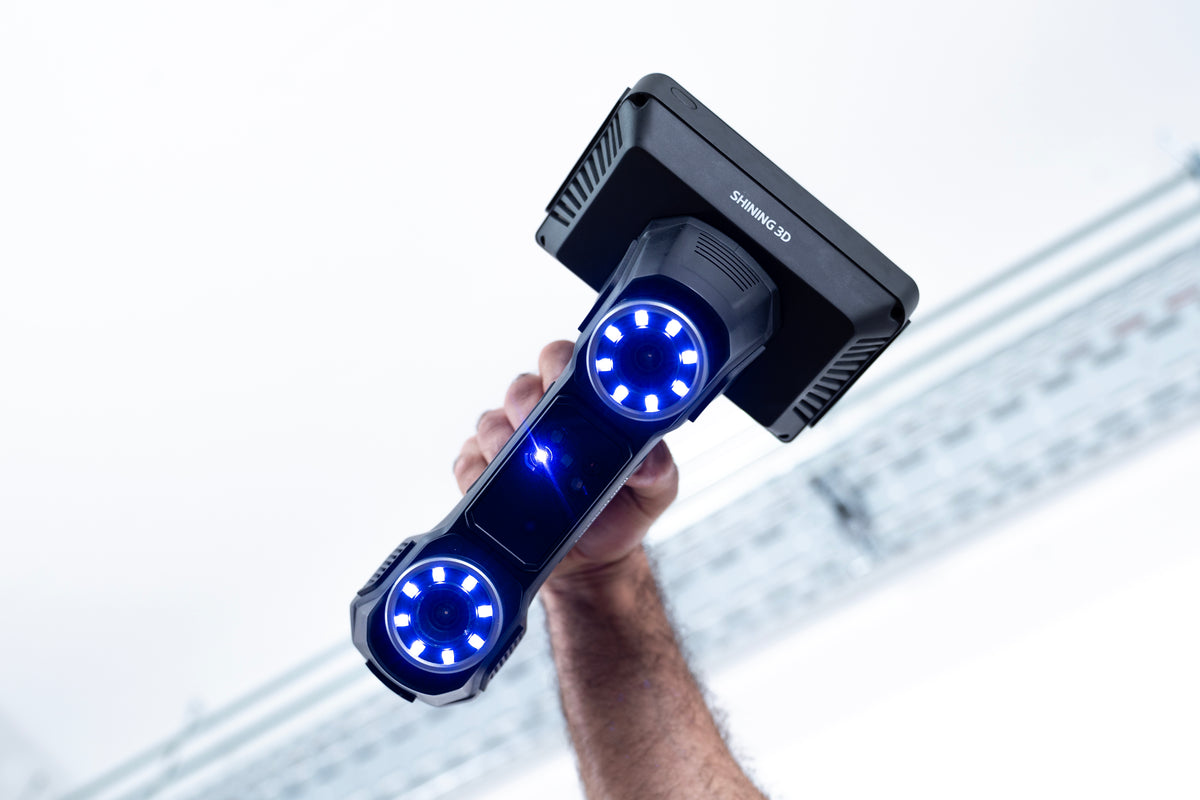

FreeScan Omni is a wireless, standalone metrology 3D scanner built for inspection at the machine, on the shop floor, or in the field. Scanning, meshing, dimensional inspection, and reporting can run directly on the scanner, so routine checks do not require a tethered workstation.
The standard package includes the full Omni scan-to-inspect configuration: 0.02 mm certified accuracy, 93-line high-speed capture, 25-line detail scanning, single-line deep-pocket scanning, marker-free IR capture, video photogrammetry, AI feature recognition, on-device inspection, and the desktop versions of FreeScan Omni and SHINING3D Inspect.
Use the included Smart Dock, eight rechargeable batteries, calibration hardware, validated scale bar, and connection accessories for continuous wireless or wired work. Optional training, reverse-engineering software, replacement markers, and extended protection can be added to the configured quote.
Match the system to the part, tolerance, environment, output, software stack, training need, and protection plan. Every selected option is included in the technical review.
Configuration
Build the system you need.
Select any optional protection, software, accessories, and training.
Configured total$38,999.00
Core system only
Your selected options will be prefilled on the recommendation and quote form.
Standard system contents
Every major component, connection, and calibration item.
High-value systems are quoted as a complete operational package; exact quantities and region-specific items are confirmed on the formal quote.
01
FreeScan Omni Standard Package
The flagship scan-to-inspect package with the scanner, inspection software, power, calibration, and connection hardware.
- FreeScan Omni 3D scanner
- Integrated on-device scanning, meshing, inspection, and reporting
- FreeScan Omni desktop software
- Full SHINING3D Inspect desktop license with manufacturer updates
- Smart Dock, also identified as the AP charging dock
- Eight rechargeable 18650 batteries
- Battery charging hub and power cable
- Dock power adapter and power cable
- Dock USB 3.0 data cable
- Gigabit Ethernet cable with screws
- USB-C data cable
- USB-C male to USB-A female adapter
- USB or USB-C to Ethernet adapter
- Multifunctional charger head
- Quick calibration board
- Validated VPG scale bar
- Marker set and marker spatula
- USB flash drive
- Certificate of conformity, warranty card, accuracy report, and packing list
Manufacturer warranty and standard shipping are included. EXModel, EXModel Pro, BlueStar Mapping, PolyWorks, Geomagic Control X, Geomagic Design X, additional markers, training, and extended protection are optional and are not part of the standard package.
System advantages
High-value capability without workflow friction.
Evaluate the measurable gains in setup, coverage, portability, capture speed, and confidence across large-volume inspection work.
02

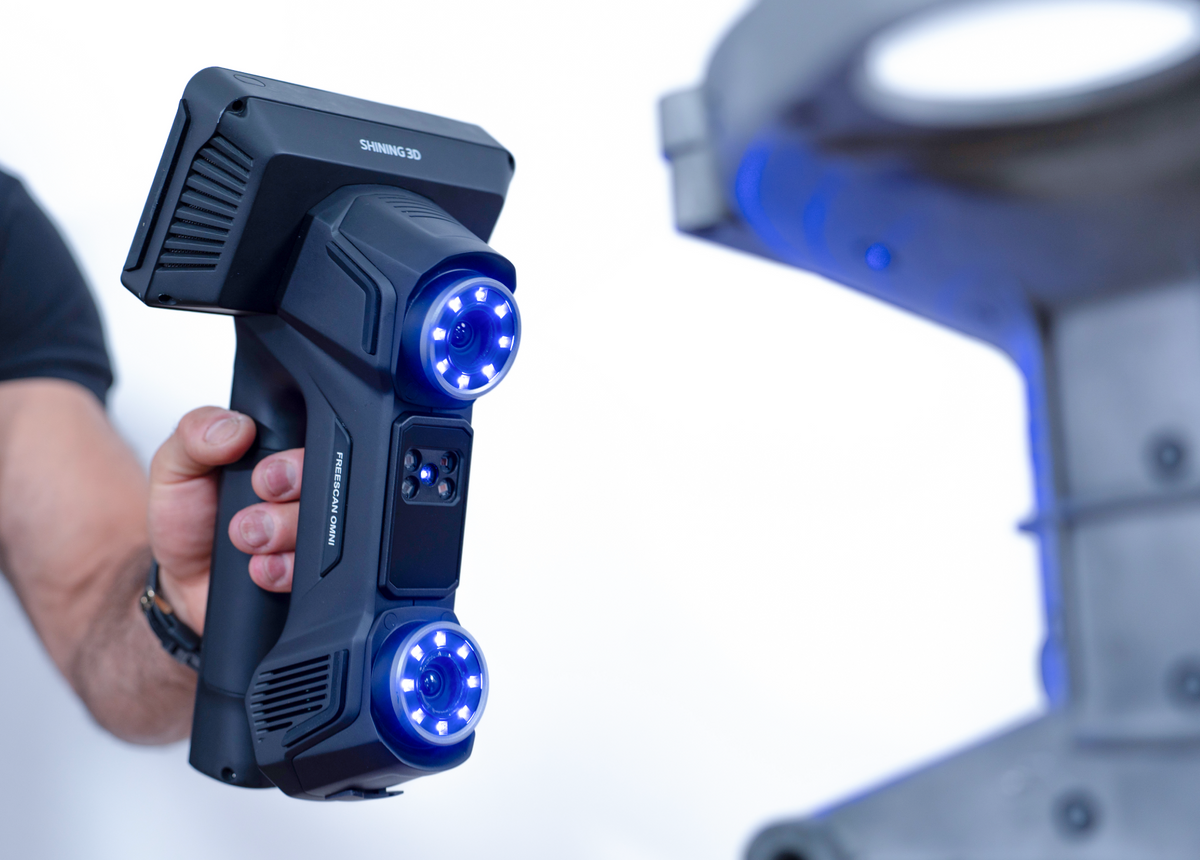

Wireless standalone operation with onboard computing
03

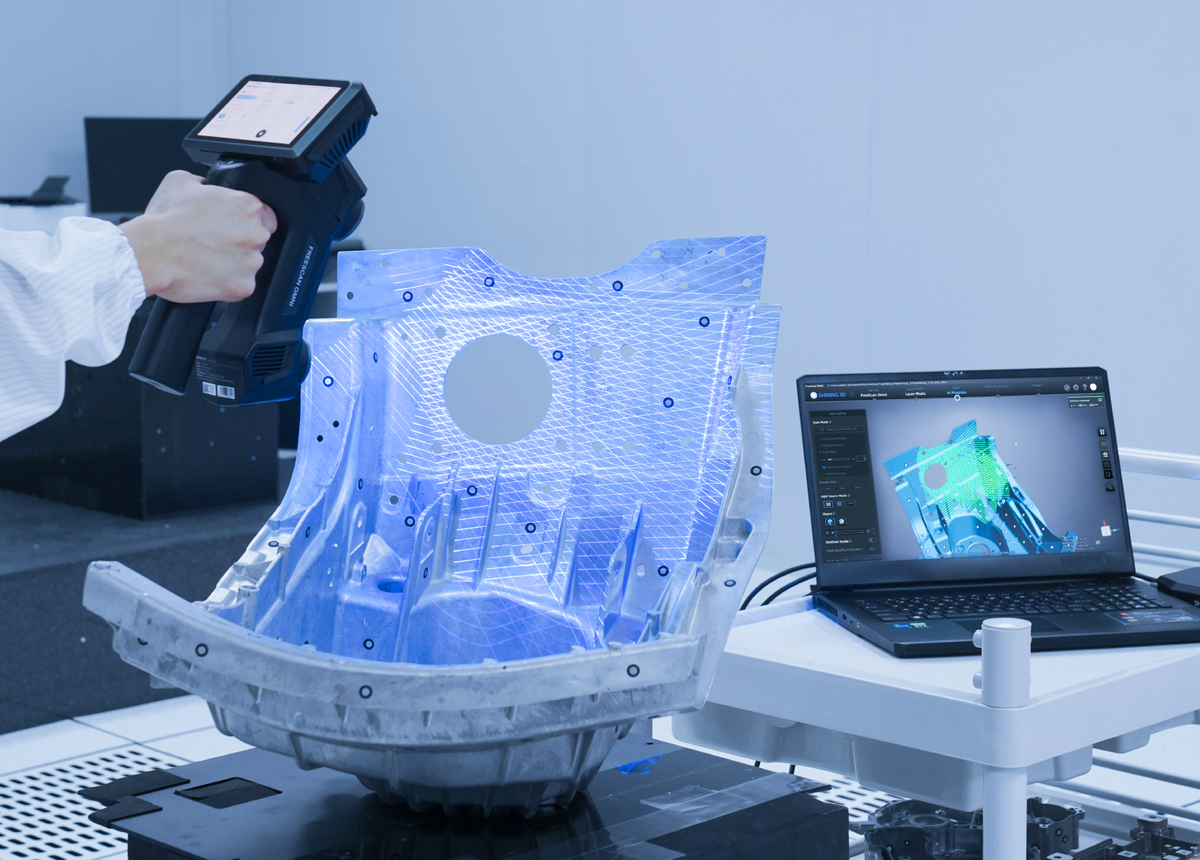

Certified accuracy of 0.02 mm
04

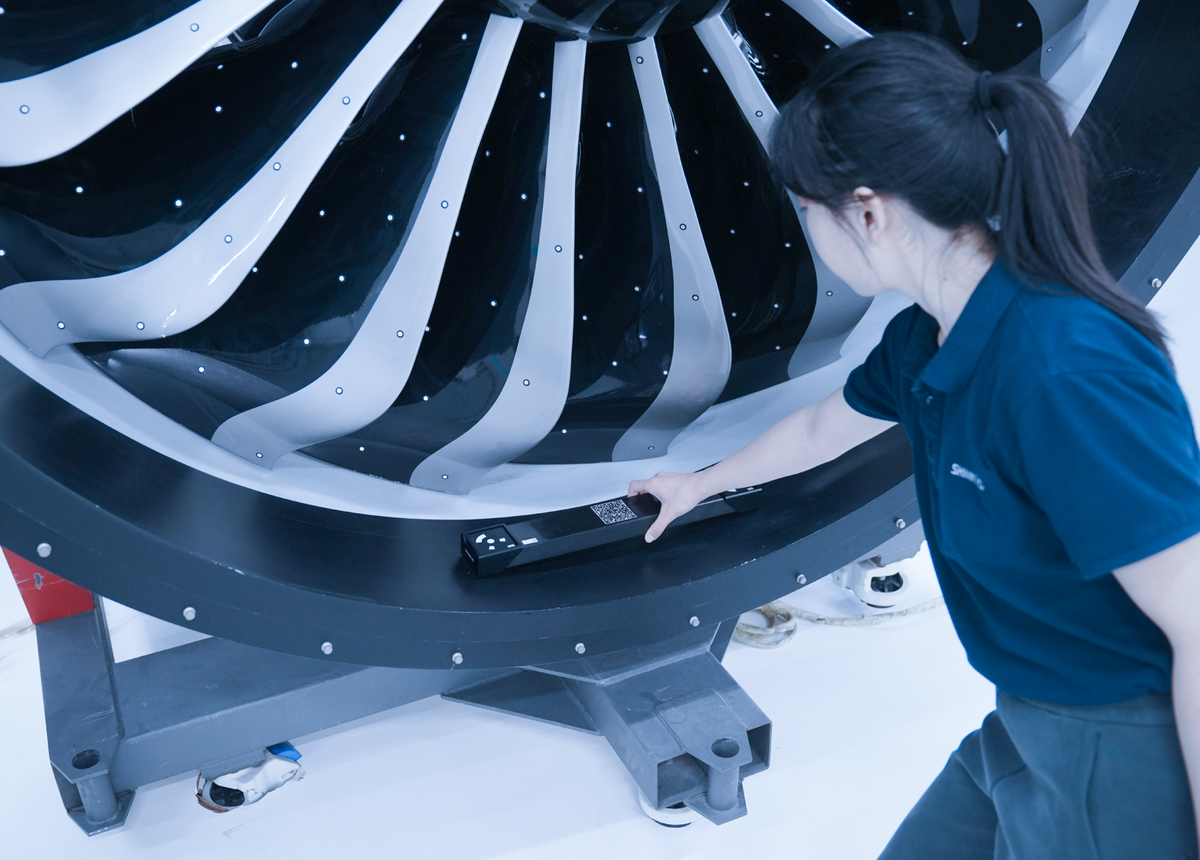

Video photogrammetry for large-part accuracy
05

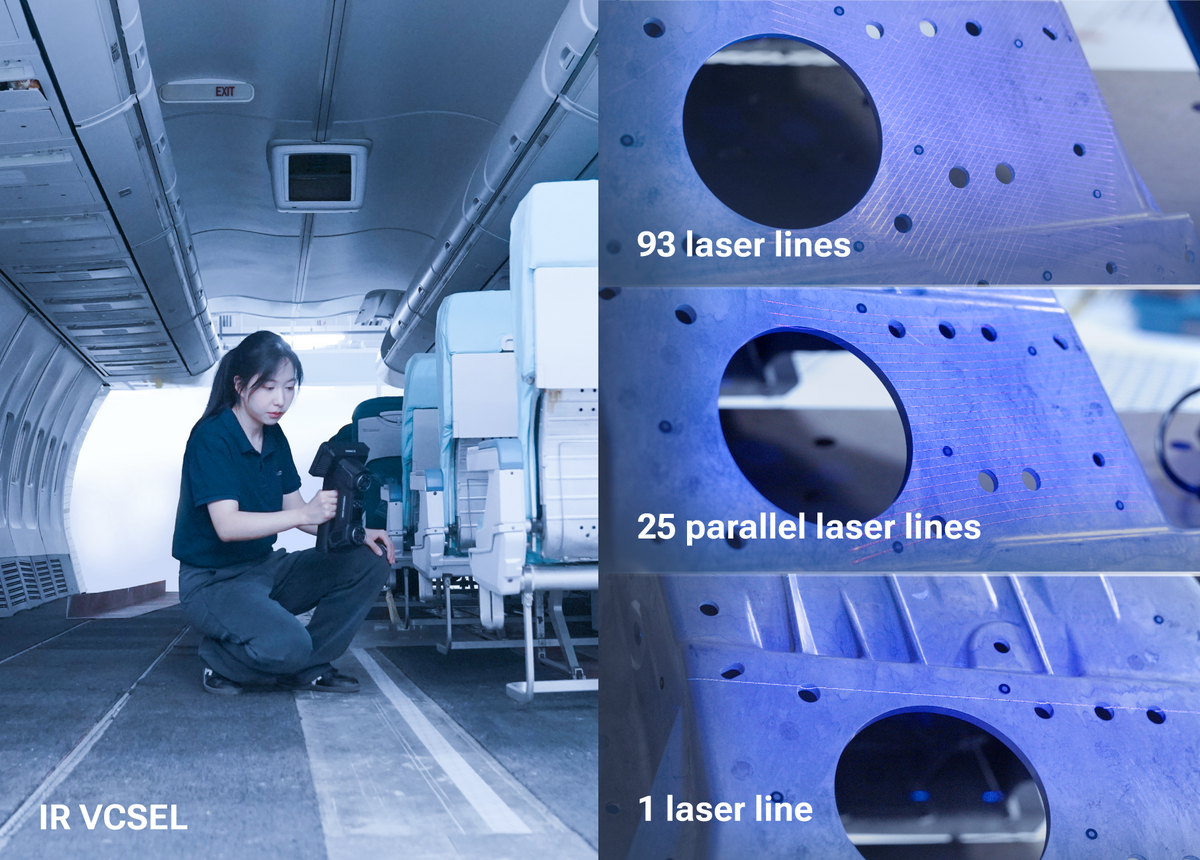

Four scanning modes for industrial work
06

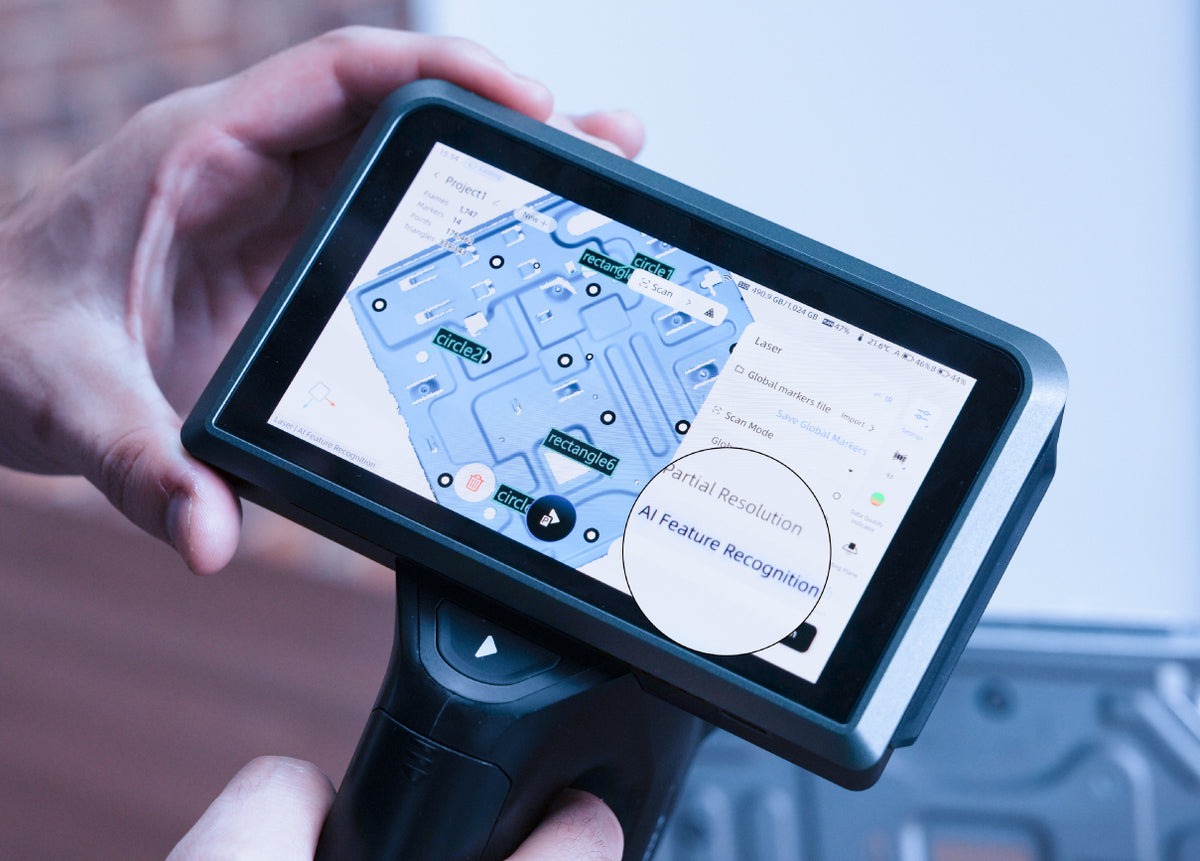

AI recognition for holes and slots
07

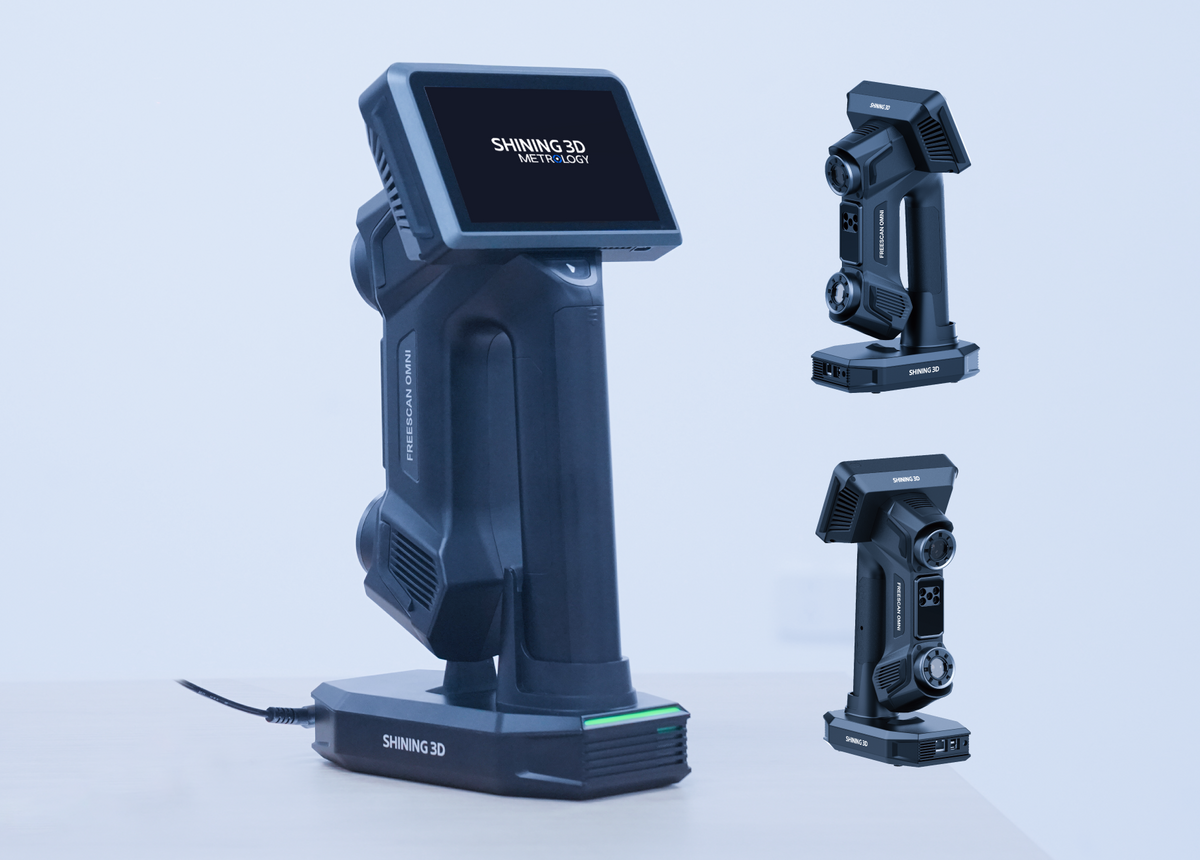

Hot-swappable batteries and Smart Dock
Deploy where the work happens
Bring controlled measurement to the part.
Combine mobile setup, optical tracking, wide-range capture, and downstream inspection in one connected operating workflow.
Review engineering specifications →Application proof
Built for parts that do not belong on a fixed CMM.
See how the system adapts to heavy industry, transportation, aviation, energy, and other large-component inspection environments.
01

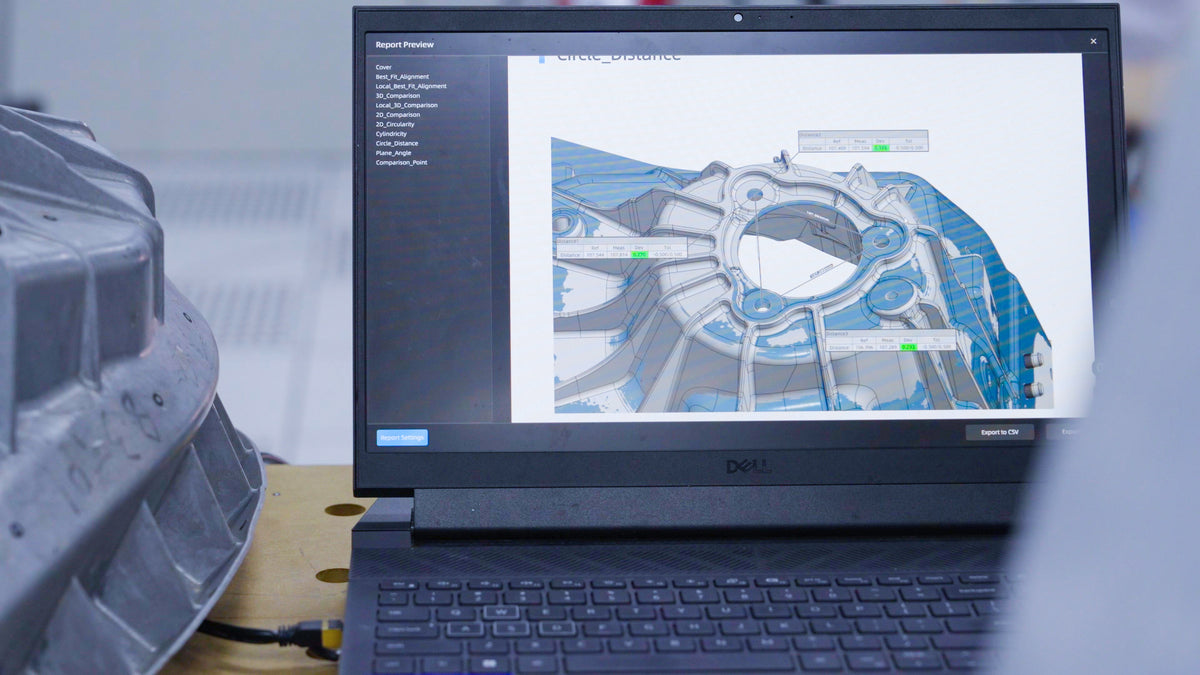

Shop-floor quality control
02
First article inspection
03

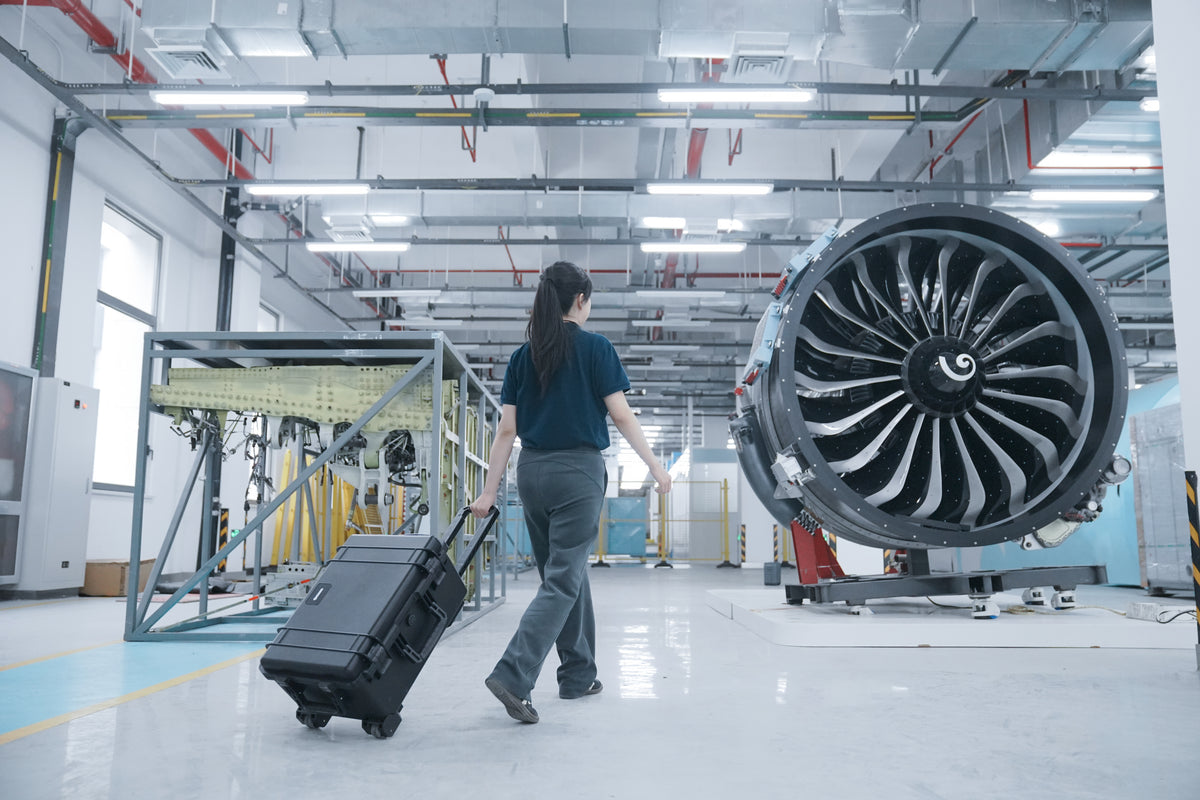

Aircraft skin and maintenance inspection
04
Mold and tooling inspection
Video library
Evaluate the system under real operating conditions.
Move between unboxing, tracking, handheld capture, and application footage without leaving the page.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Technical evidence for engineering and IT.
Review measurement performance, operating envelope, connectivity, and the workstation needed to process the data.
Accuracy0.02 mm (0.0008 in)
Volumetric accuracy0.02 + 0.03 mm/m
Volumetric accuracy with VPG0.02 + 0.015 mm/m (0.0008 in + 0.00018 in/ft)
Scan speedUp to 7,619,000 points/s
Onboard hardwareBuilt-in computing, 32 GB memory, FPGA, and 1 TB SSD
Industrial camerasDual 5 MP cameras
Resolution0.01 to 10 mm
Depth of field830 mm (170 to 1000 mm)
Maximum field of viewLaser: 580 x 650 mm; IR: 1205 x 1104 mm
Light sourcesBlue laser and IR VCSEL
Scanning modes93-line high-speed, 25-line detail, single-line deep-pocket, and IR rapid scan
Working distance200 to 680 mm
Video photogrammetrySupported without coded markers

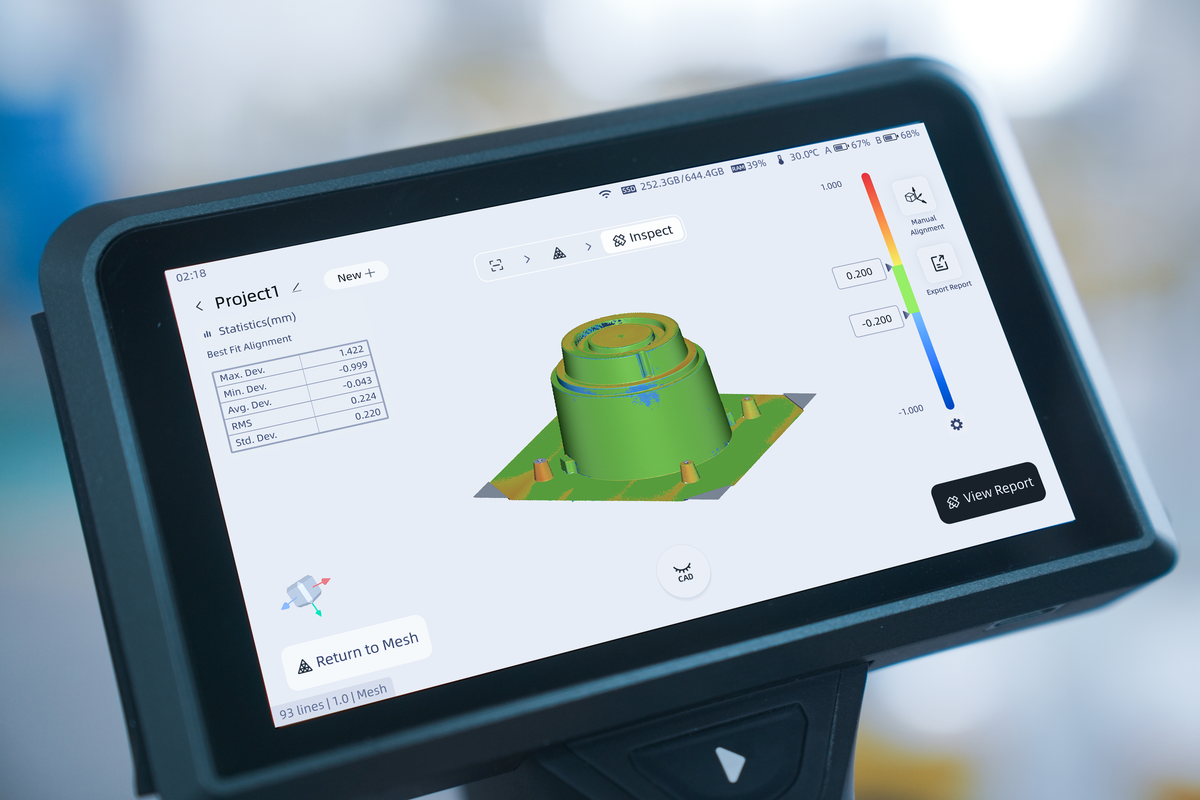

Inspection moduleIntegrated on-device inspection
Hole scanningIntelligent boundary detection for round holes, rectangular holes, and slots
ConnectionWireless or wired through the Smart Dock using fiber optic connection
Display5.5-inch touchscreen
Net weight1.1 kg or less
Output formatsSTL, ASC, 3MF, and P3
Working temperature-10 to 40 °C (14 to 104 °F)
Working humidity10% to 90%
CertificationsCE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, and TISAX
Acceptance testVDI/VDE 2634 Part 3 and ISO 10360, tested in an ISO/IEC 17025 accredited accuracy lab
| Component | Minimum | Recommended |
|---|---|---|
| Standalone scanning and inspection | No external PC required | Use the onboard scanner workflow for capture, meshing, inspection, and reporting |
| Operating system for desktop software | Not specified | Windows 11 Professional 22H2, 64-bit |
| Processor | Not specified | 13th Gen Intel Core i7-13650HX or above |
| Graphics card | Not specified | NVIDIA GeForce RTX 4060 Laptop GPU or above |
| Video memory | Not specified | 12 GB or above |
| System memory | Not specified | 64 GB or above, DDR5 dual-channel |
| Storage | Not specified | SSD with 250 GB available space |
| Interface | Not specified | USB 3.0 |
| Internet | Required for first activation and updates | Offline activation can be completed through another internet-connected computer |
A workstation is optional for scanning and on-device inspection. These requirements apply when using the included FreeScan Omni desktop software and SHINING3D Inspect on a PC. A discrete NVIDIA GPU is required.
Interactive scan results
Inspect more than one related dataset.
Load the chosen model on demand, with a direct Sketchfab fallback for devices that cannot render the full scene.
Optional interactive preview
Damping Strut
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Flight Seat
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Machined Part
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Mold
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Automotive Sheet Metal Bracket
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
CNC Machined Iron Part
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Turbofan Engine
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
