HYBRID-LIGHT METROLOGY SCANNER

Laser accuracy. Flexible capture.

A compact wired metrology scanner with blue laser precision, marker-free infrared capture, and a choice of 26-line or 50-line performance.

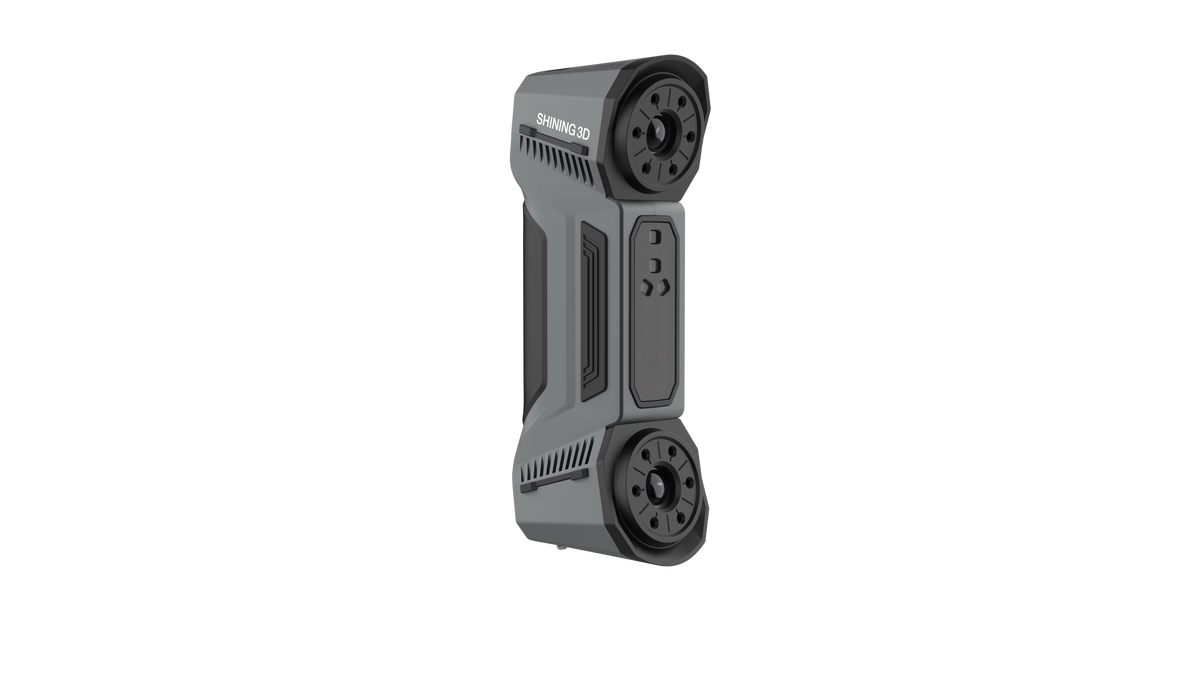

Wired handheld hybrid-light metrology 3D scannerScanner type
FreeScan Combo and FreeScan Combo+Available scanner models
Blue laser and infrared VCSELLight sources
26 laser lines on Combo; 50 laser lines on Combo+High-speed laser pattern
Buy nowConfigure & quoteWatch recorded demo
SKYLAB3D, an authorized Shining 3D reseller
Application-fit guidance
Formal quotes for procurement
Training and workflow support

Guided configuration

Configure the scanner, software, training, and coverage together.

FreeScan Combo Series brings blue laser metrology scanning and infrared VCSEL capture into a compact 620 g handheld system. Choose FreeScan Combo for 26 laser lines and scan speeds up to 1,860,000 points per second, or FreeScan Combo+ for 50 laser lines and speeds up to 3,600,000 points per second.

Both wired models support 0.02 mm laser accuracy, seven-line fine scanning, single-line capture for deep features, and marker-free infrared scanning on feature-rich parts. Blue laser modes handle dark and reflective industrial surfaces, while the included FreeScan software guides calibration, capture, editing, and data cleanup without an ongoing scanning-software subscription.

Select a scanner-only configuration when your team already has inspection or reverse-engineering software. Choose an available EXModel, Geomagic Essentials, or Control X Essentials package when you need a complete workflow under one catalog SKU.

Select the software, training, and protection needed for the intended workflow. Your choices carry into the recommendation request for technical review.

Choose the core system

Configuration

Build the system you need.

Select any optional protection, software, accessories, and training.

01 Protection Choose one
02 Software Optional
03 Training Optional
Configured total$11,999.00

Core system only

Configure & quote

Checkout and quote actions use the same selected configuration.

Core-system comparison

Understand the differences before configuring.

Model-level differences are separated from compatible software, services, and protection.

Decision pointFreeScan ComboTeams that already have downstream softwareRecommended for higher throughputFreeScan Combo+Higher production throughputCombo with EXModel ProAdvanced reverse engineeringCombo with EXModel and Geomagic EssentialsScan-to-CAD workflowsCombo with Control X EssentialsInspection and reportingCombo+ with EXModel ProFast capture and reverse engineering
Overall scan pattern26 laser lines50 laser lines26 laser lines26 laser lines26 laser lines50 laser lines
Maximum laser scan speed1,860,000 points/s3,600,000 points/s1,860,000 points/s1,860,000 points/s1,860,000 points/s3,600,000 points/s
Laser accuracyUp to 0.02 mmUp to 0.02 mmUp to 0.02 mmUp to 0.02 mmUp to 0.02 mmUp to 0.02 mm
Fine and deep-feature modesIncludedIncludedIncludedIncludedIncludedIncluded
Marker-free infrared modeIncludedIncludedIncludedIncludedIncludedIncluded
Bundled workflow softwareNoneNoneEXModel ProEXModel and Geomagic EssentialsControl X EssentialsEXModel Pro
Primary workflowScan and exportFaster scan and exportReverse engineeringScan-to-CADInspection and reportingFaster reverse engineering

Package contents

The complete standard system, itemized.

Review the physical system, power and data connections, markers, software access, and documentation before requesting the configuration.

01

FreeScan Combo

26-line scanner package

  • Selected FreeScan Combo or FreeScan Combo+ scanner
  • Included FreeScan scanning software
  • Calibration plate
  • USB 3.0 scanner cable
  • Power adapter
  • Regional power cable
  • USB drive
  • Software license dongle
  • Reference markers
  • Certificate and quick start guide

Manufacturer warranty and standard shipping are included with every scanner configuration. The exact software license term, maintenance entitlement, regional plug, marker quantity, and packing quantities are confirmed against the current US packing list before fulfillment. Training, extended protection, and software not named in the selected configuration are optional.

Key features

How the system performs in day-to-day use.

Review the features that affect setup time, repeatability, inspection speed, and output quality.

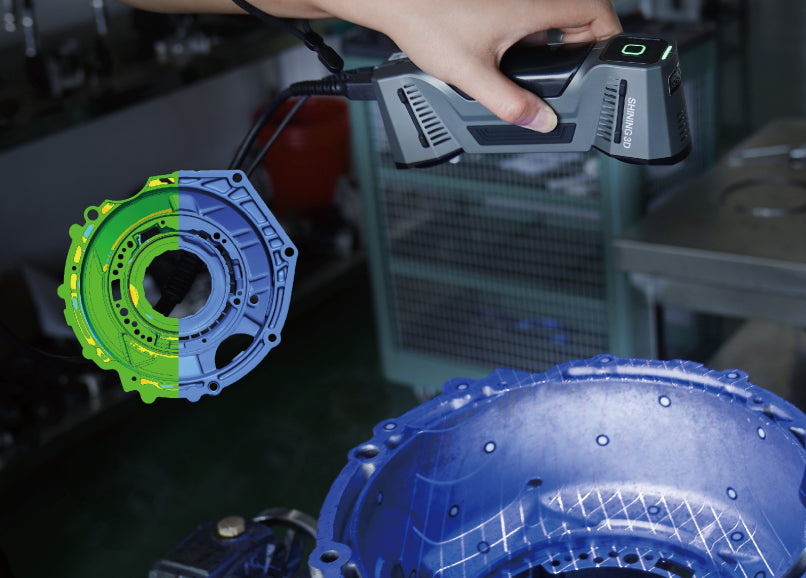

0.02 mm laser accuracy verified against VDI/VDE 2634 and ISO 10360
01

0.02 mm laser accuracy verified against VDI/VDE 2634 and ISO 10360

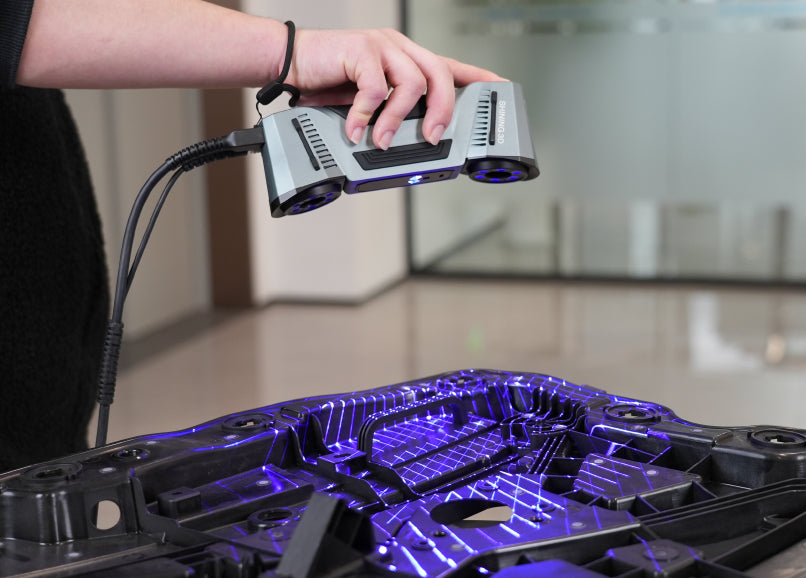

26 laser lines on FreeScan Combo or 50 laser lines on Combo+ for overall scanning
02

26 laser lines on FreeScan Combo or 50 laser lines on Combo+ for overall scanning

Up to 1,860,000 points/s on Combo or 3,600,000 points/s on Combo+
03

Up to 1,860,000 points/s on Combo or 3,600,000 points/s on Combo+

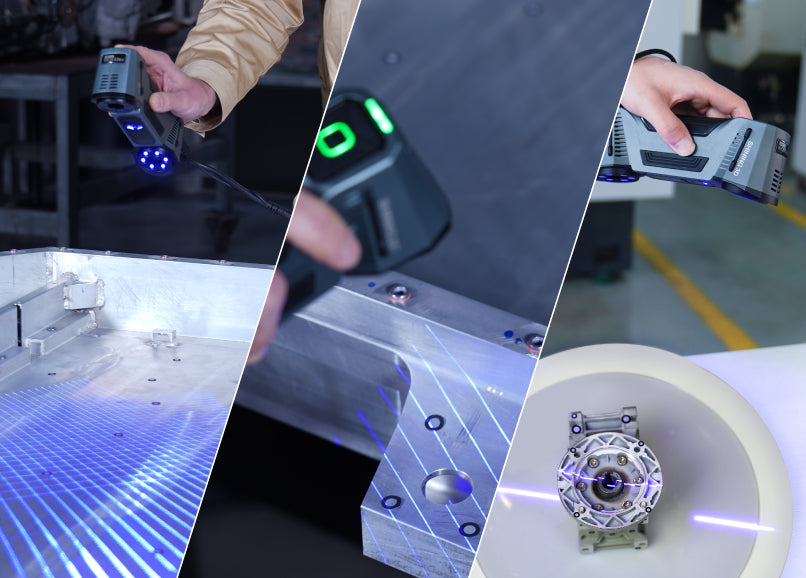

Seven parallel laser lines for fine detail and one single line for deep features
04

Seven parallel laser lines for fine detail and one single line for deep features

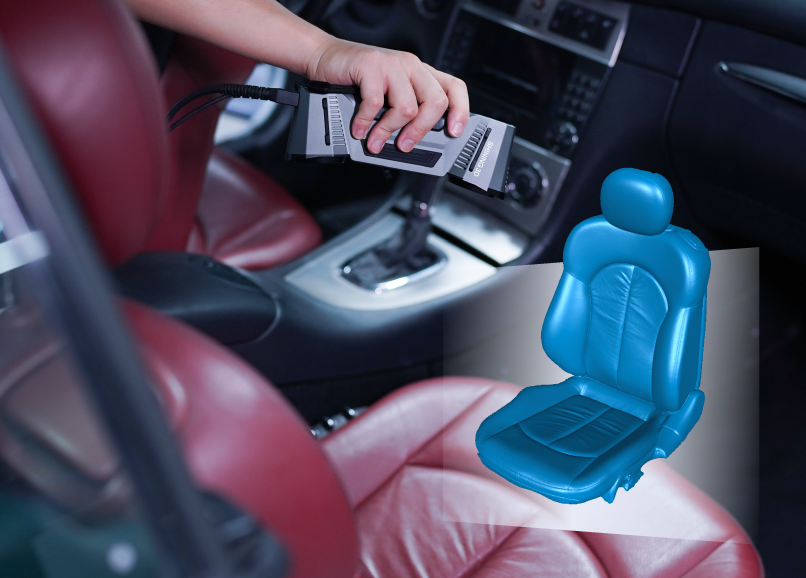

Infrared VCSEL mode for marker-free scanning of feature-rich parts
05

Infrared VCSEL mode for marker-free scanning of feature-rich parts

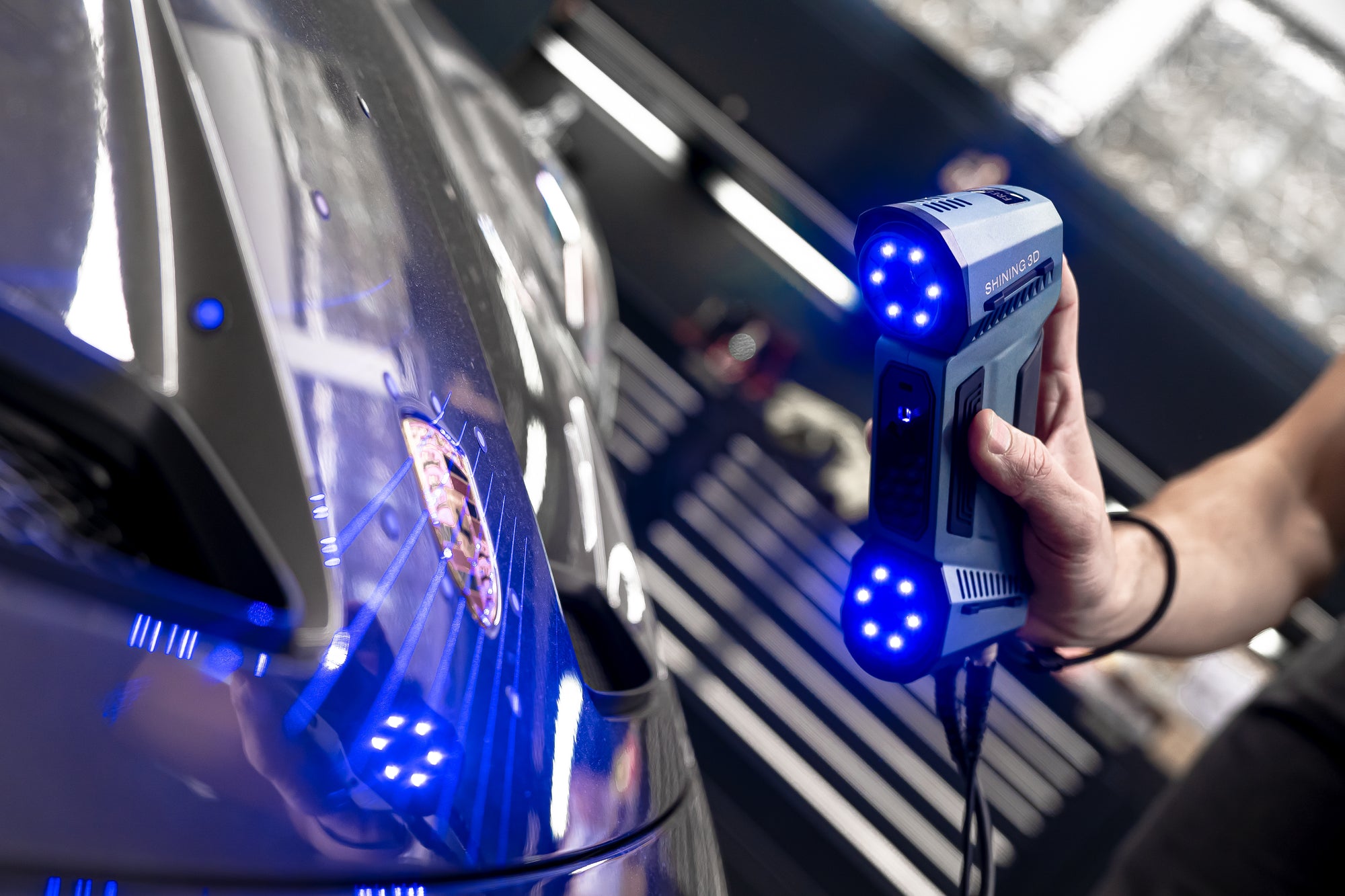

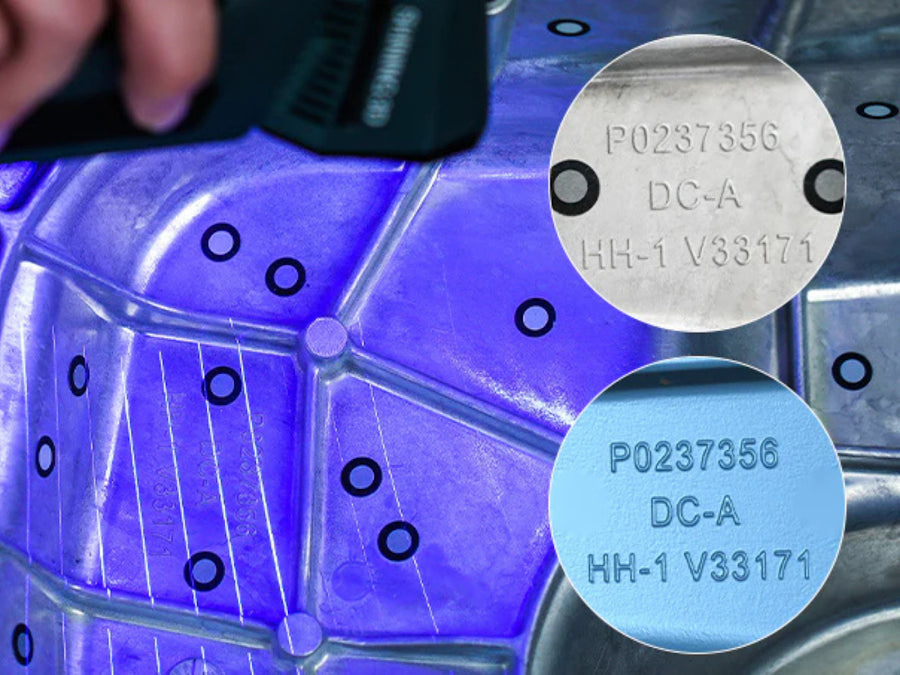

Blue laser capture for dark and reflective industrial surfaces
06

Blue laser capture for dark and reflective industrial surfaces

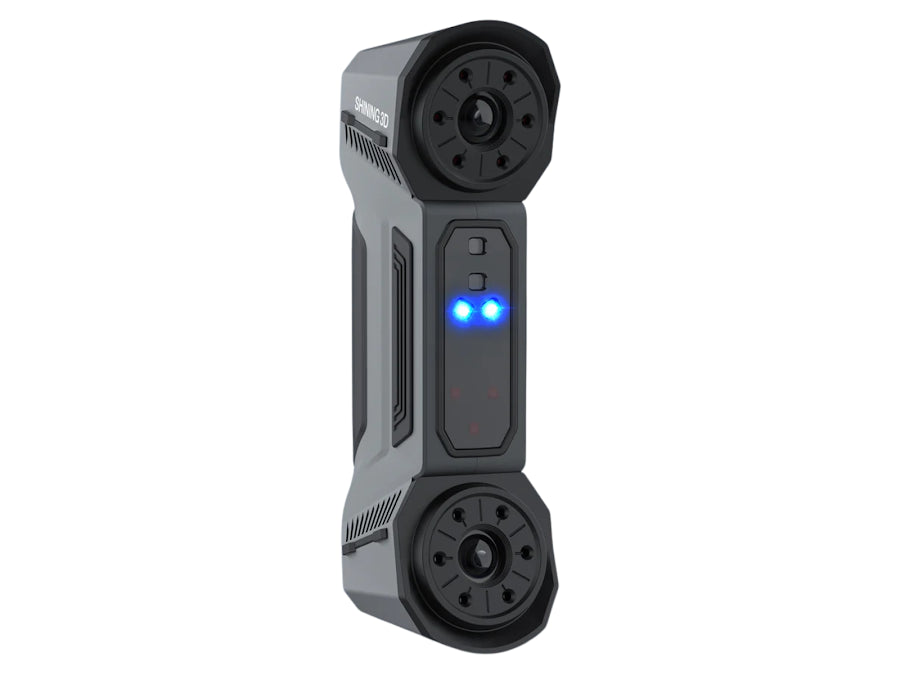

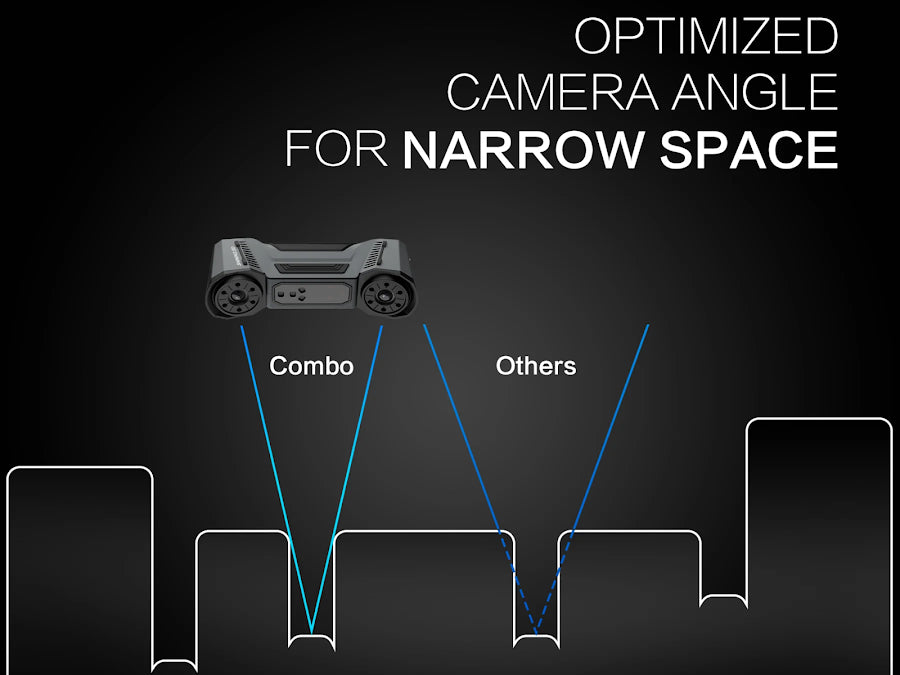

Compact 620 g body for seams, pockets, and restricted work areas
07

Compact 620 g body for seams, pockets, and restricted work areas

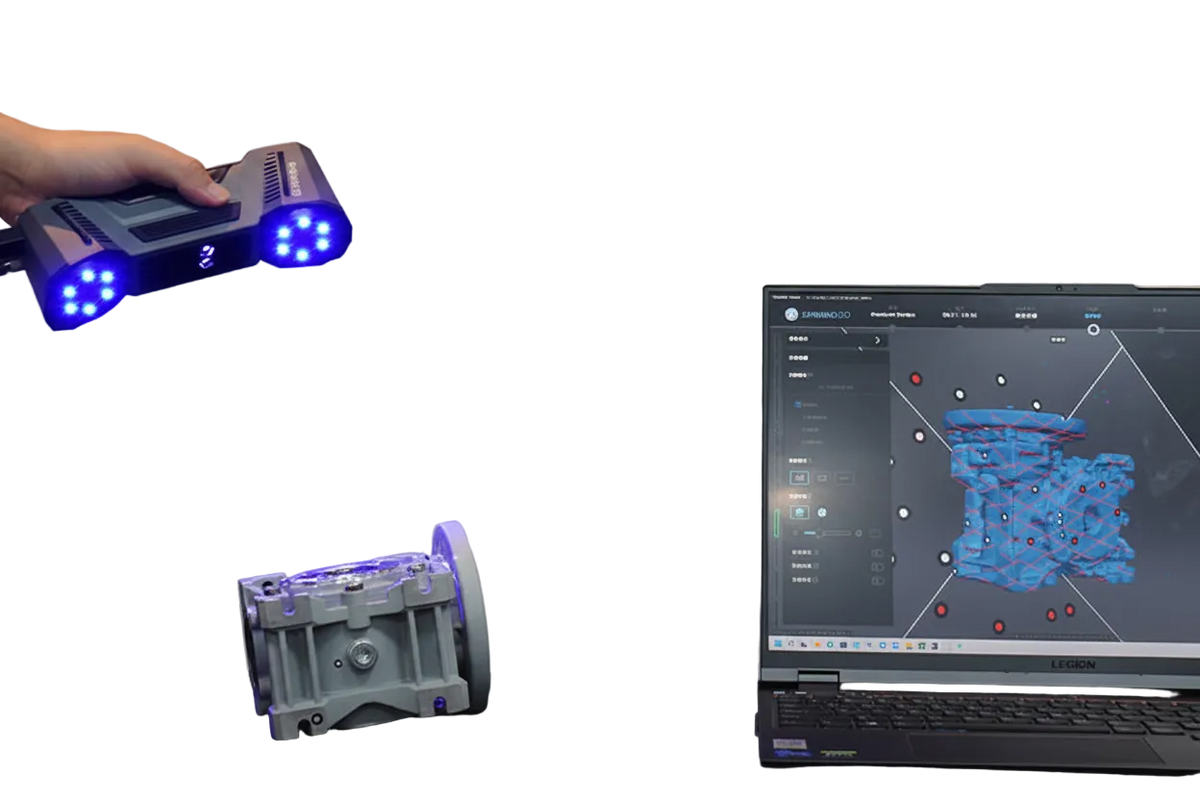

Included FreeScan software with guided calibration, data editing, and AI cleanup
08

Included FreeScan software with guided calibration, data editing, and AI cleanup

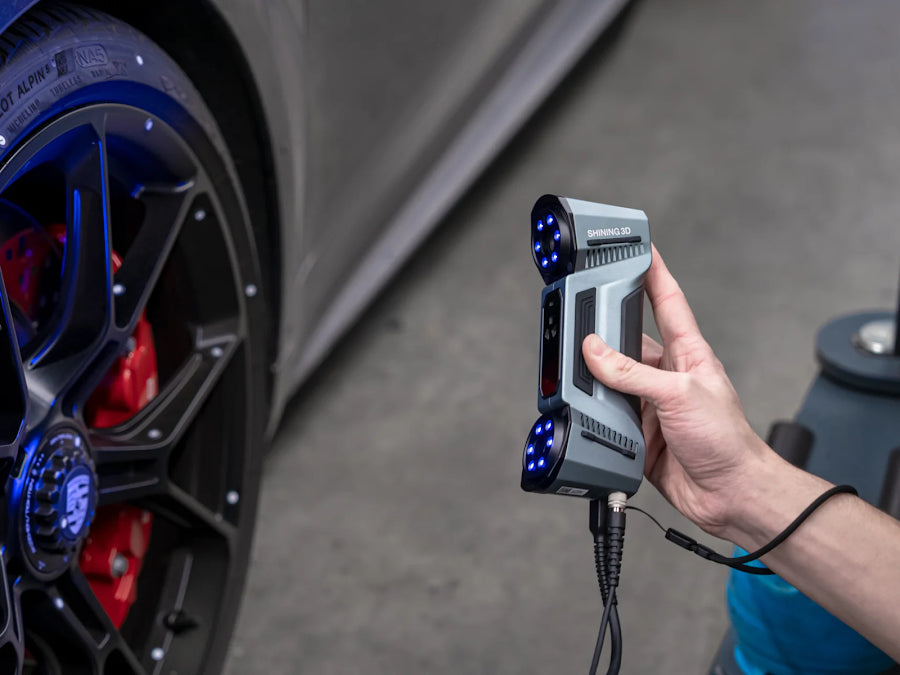

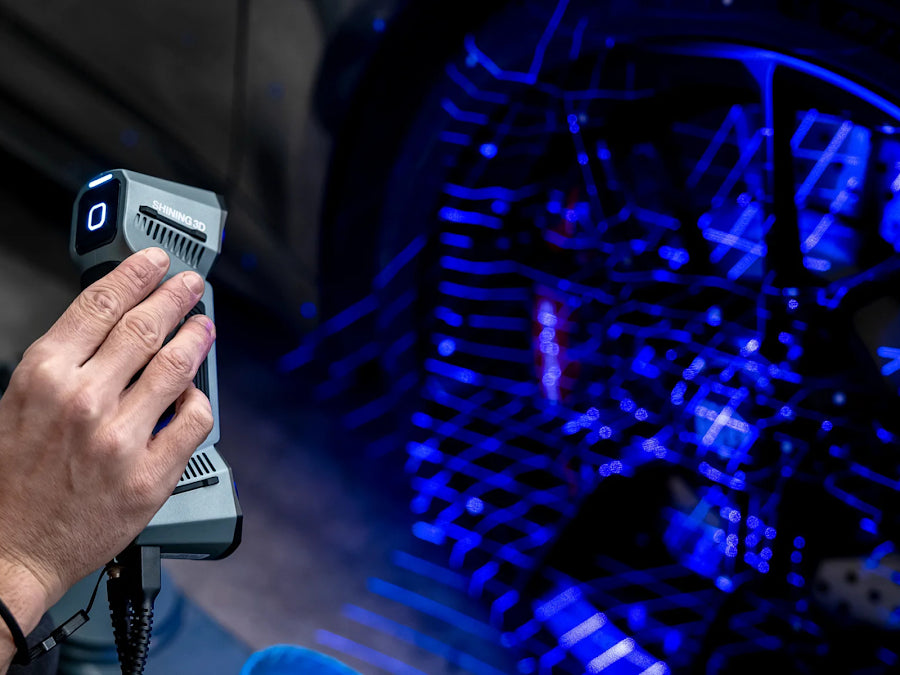

FreeScan Combo & Combo+ 3D Scanners

Complete measurement workflow

From automated capture to inspection-ready data.

Follow the workflow from repeatable capture through processing, inspection, and reporting.

Review technical specifications →

Application fit

Where this system fits best.

Review the application environments where automation, accuracy, and repeatability create the clearest advantage.

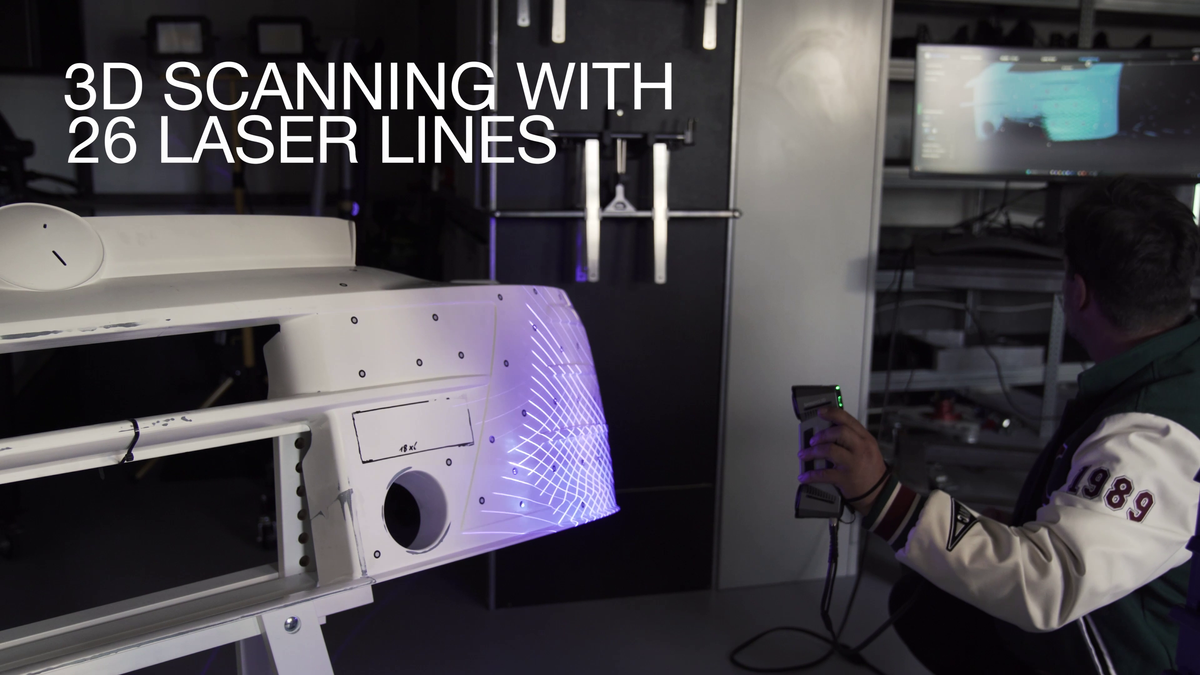

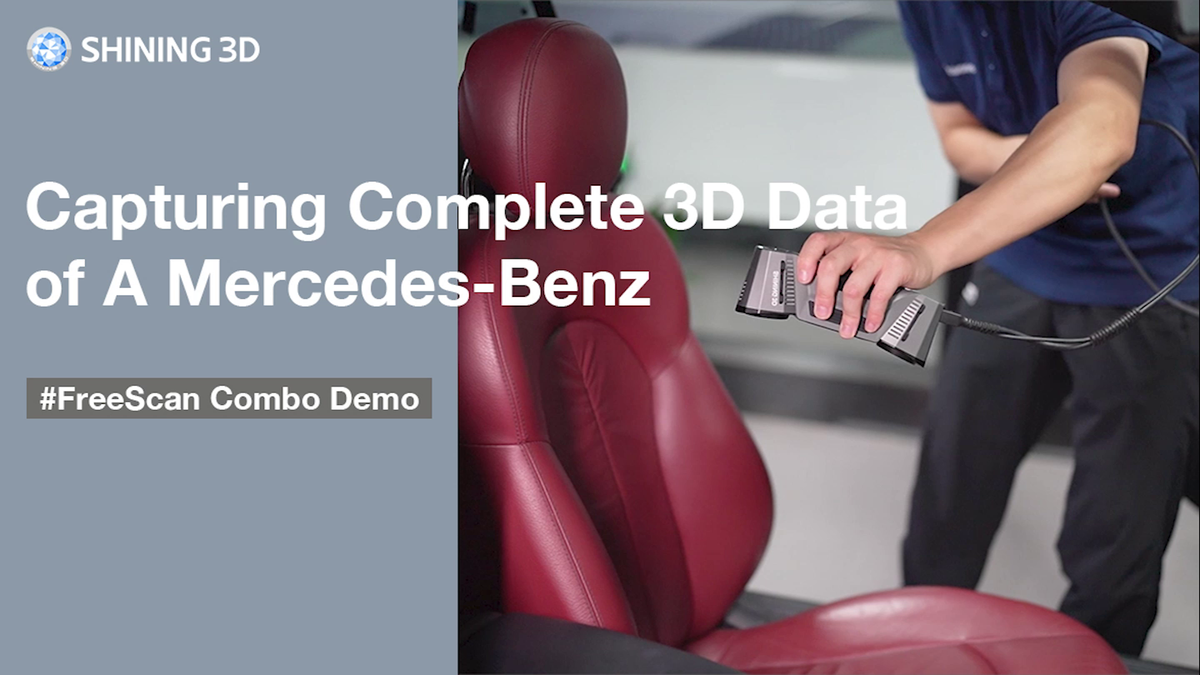

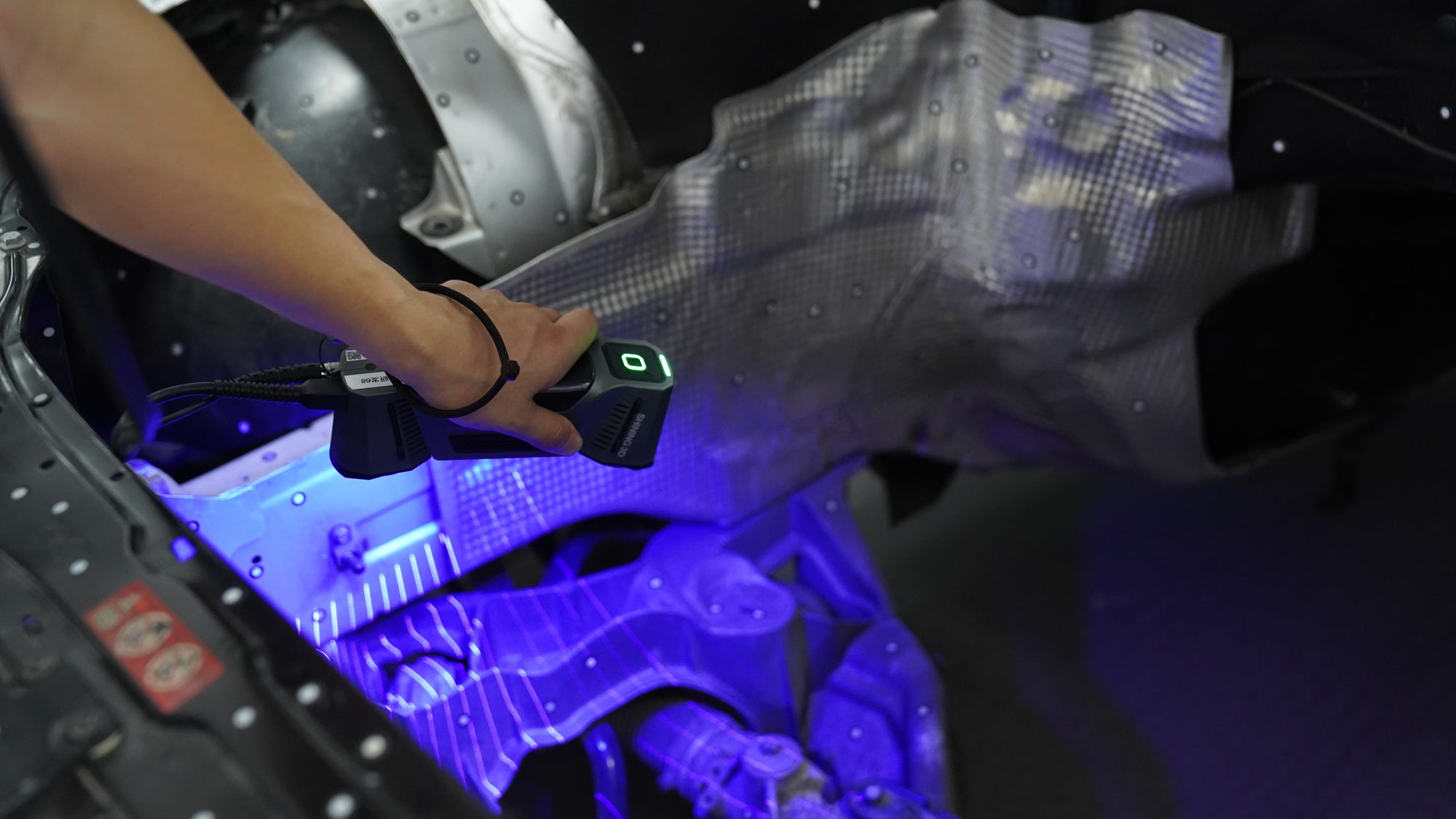

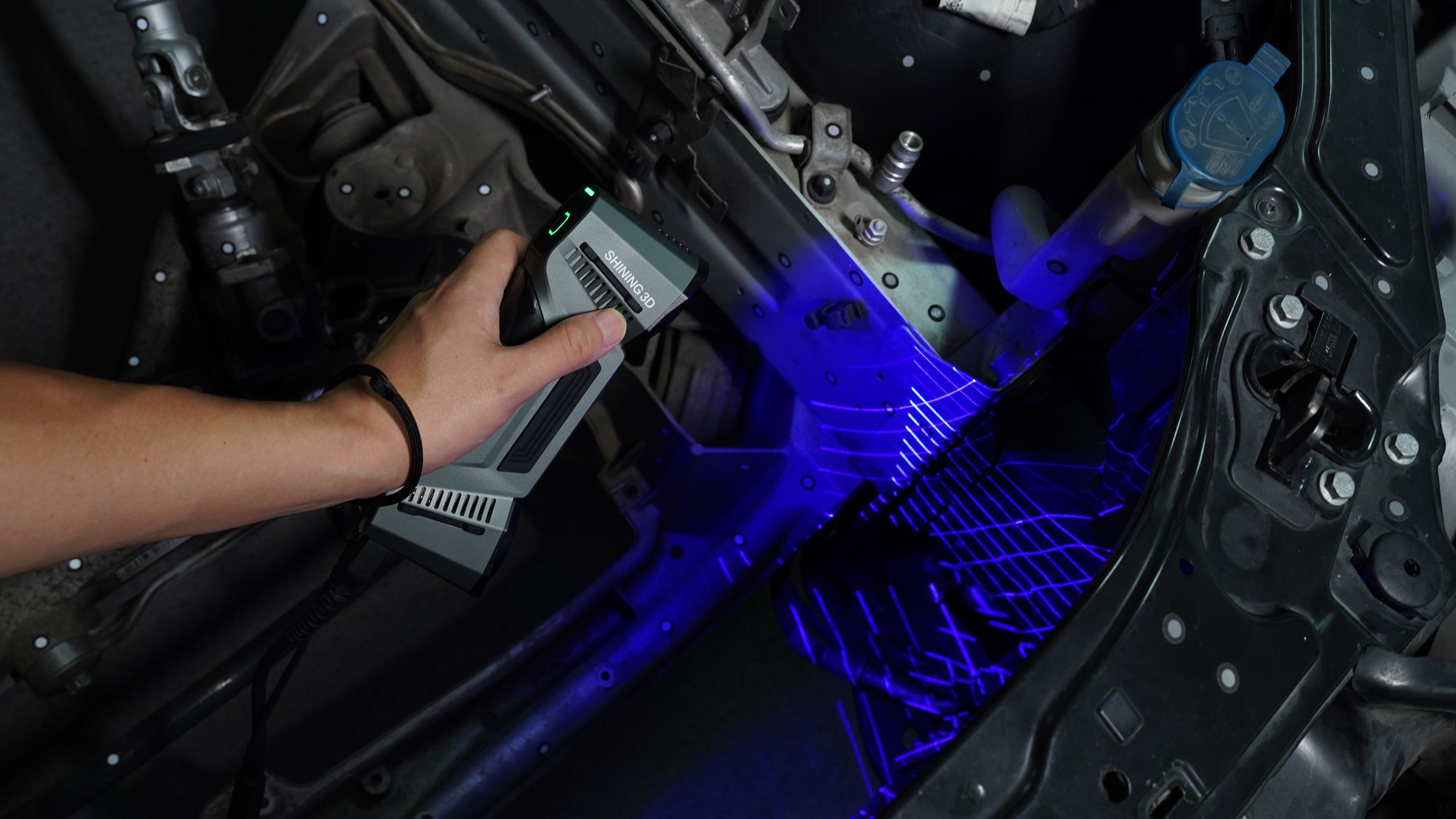

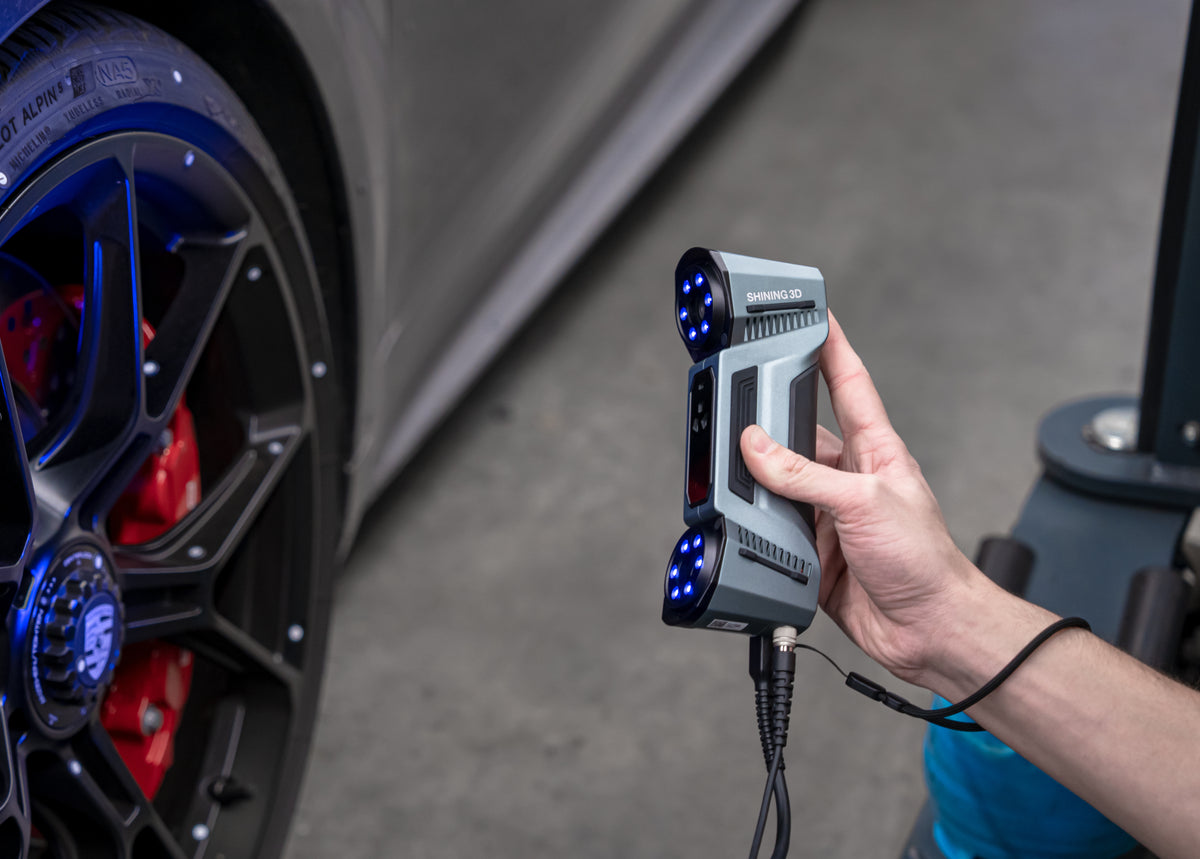

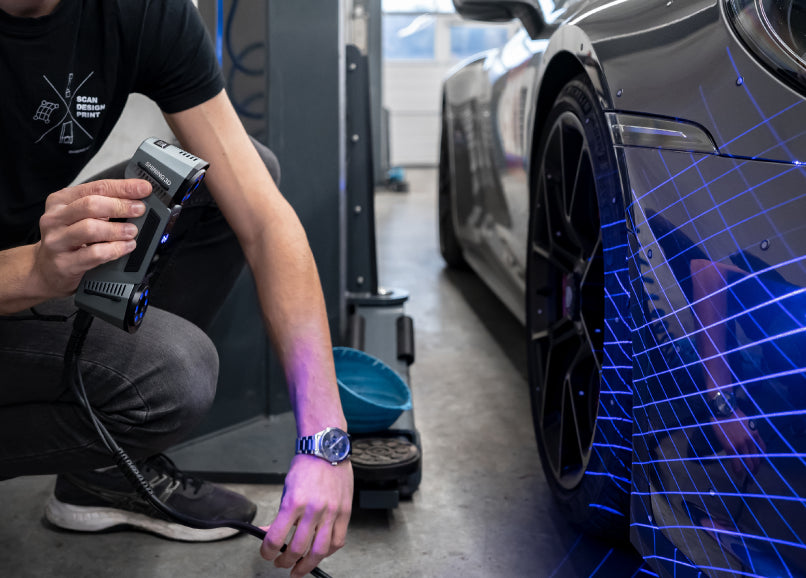

Automotive body panels, interiors, engine bays, and chassis
01

Automotive body panels, interiors, engine bays, and chassis

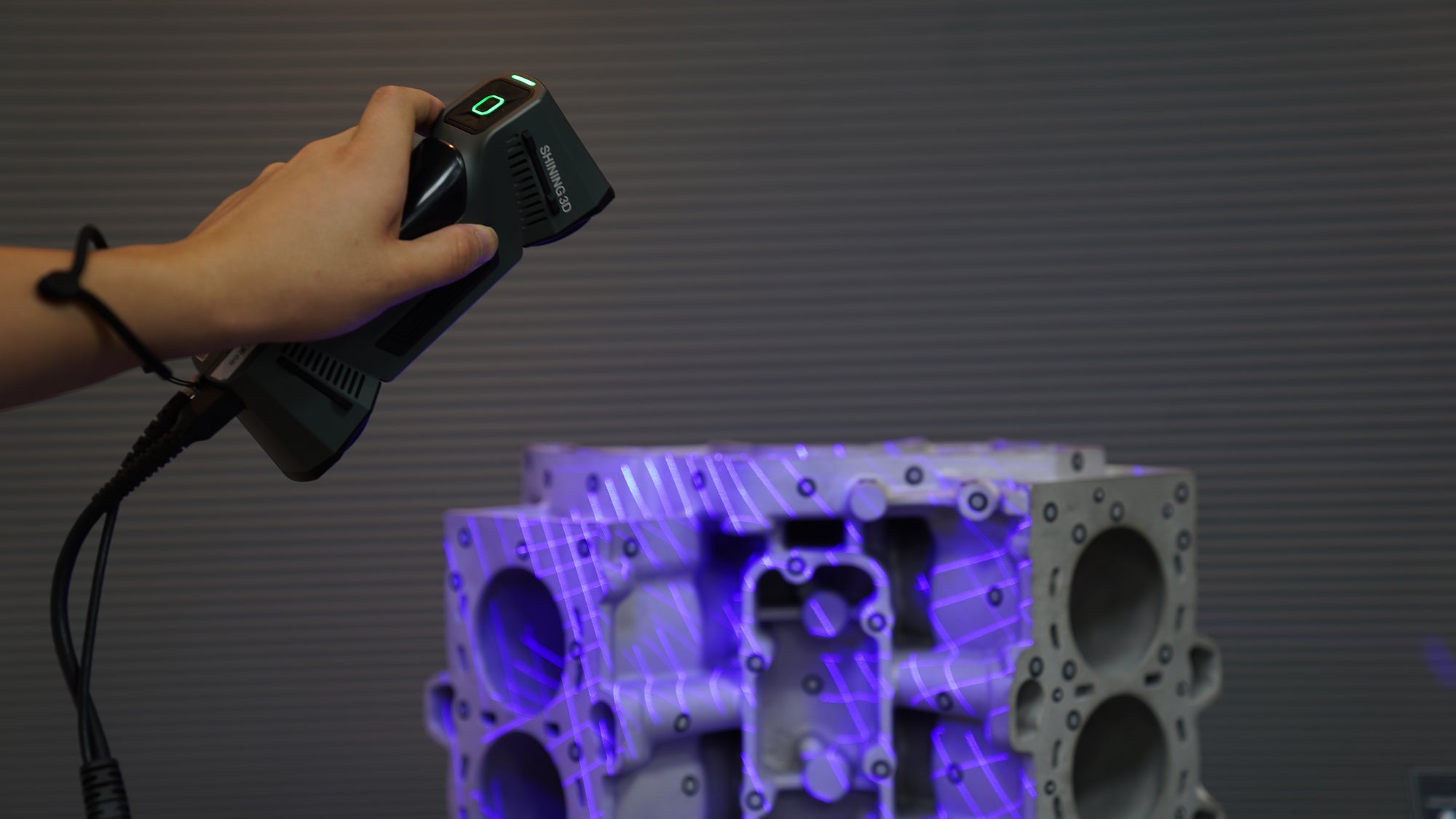

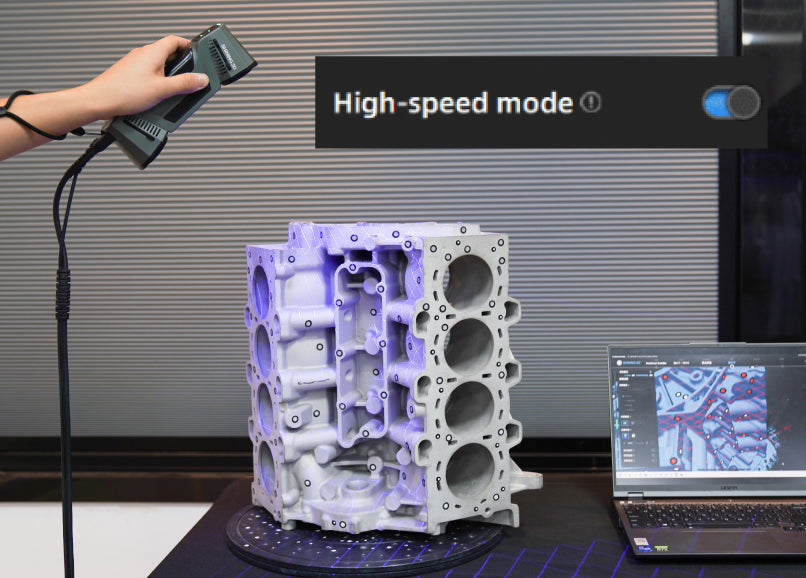

Dimensional inspection of machined, cast, and molded components
02

Dimensional inspection of machined, cast, and molded components

Reverse engineering and scan-to-CAD workflows
03

Reverse engineering and scan-to-CAD workflows

Tooling, molds, dies, and fixture verification
04

Tooling, molds, dies, and fixture verification

Product media

Inspect the equipment and included system visually.

FreeScan Combo & Combo+ 3D Scanners

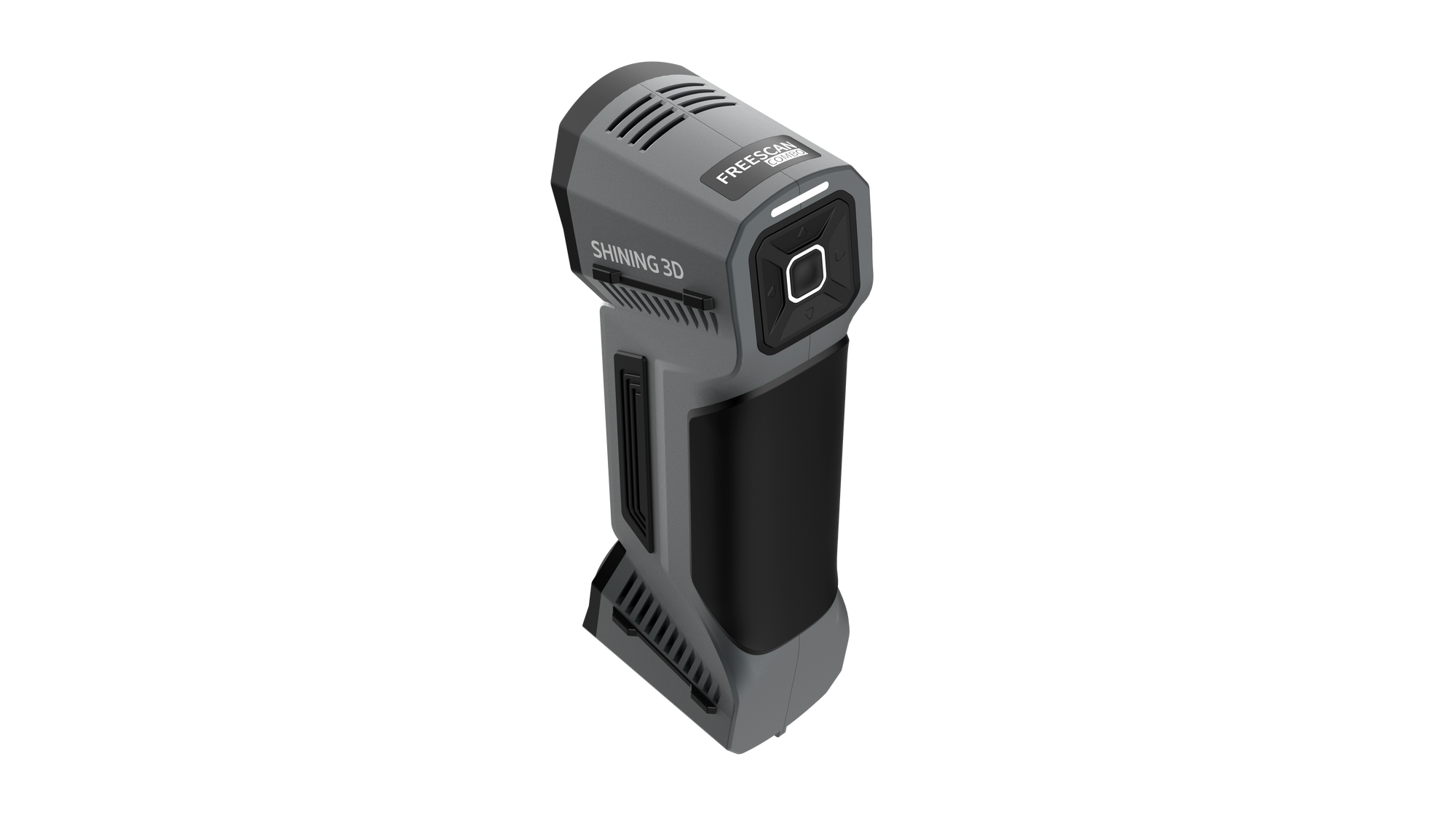

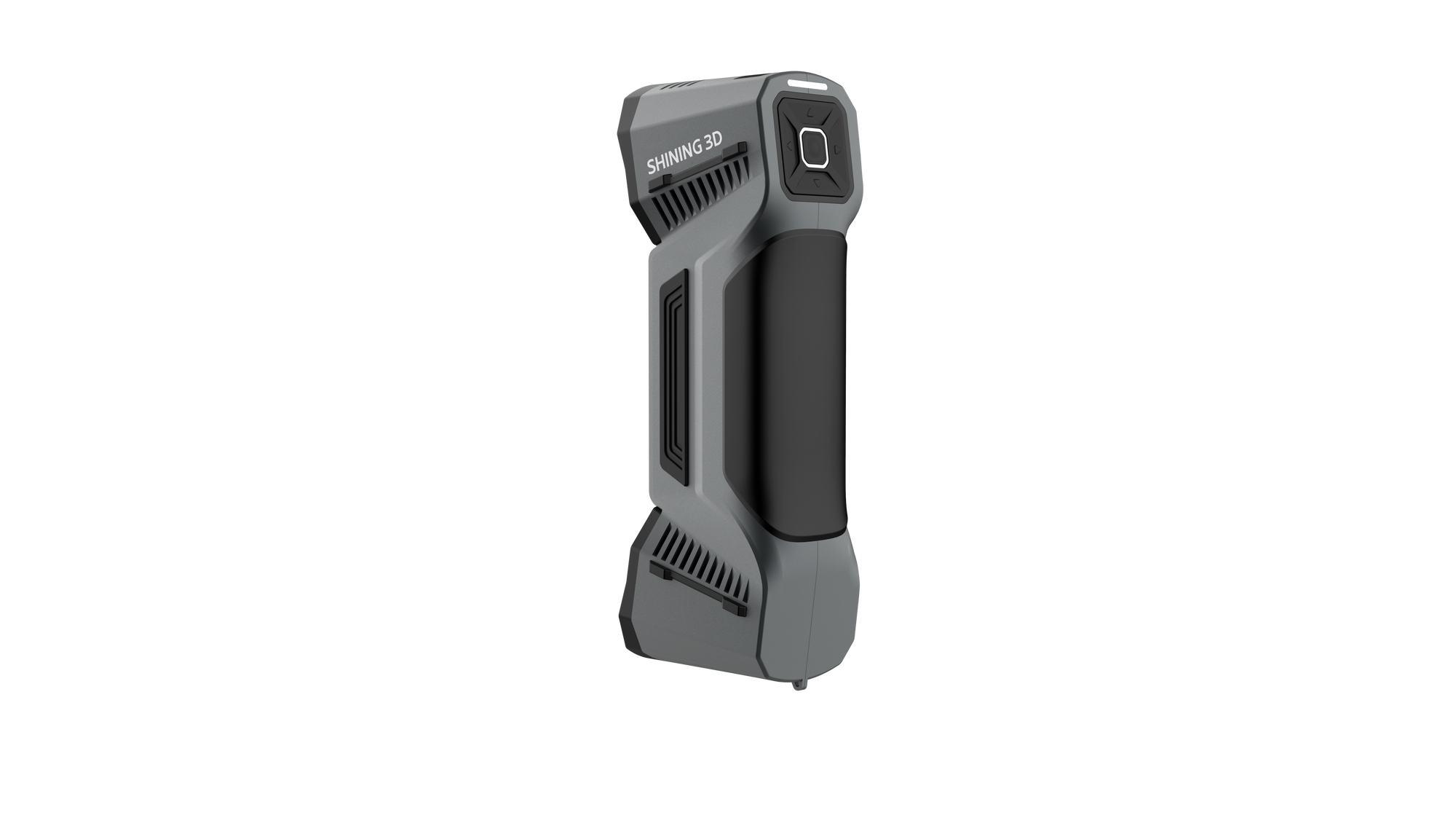

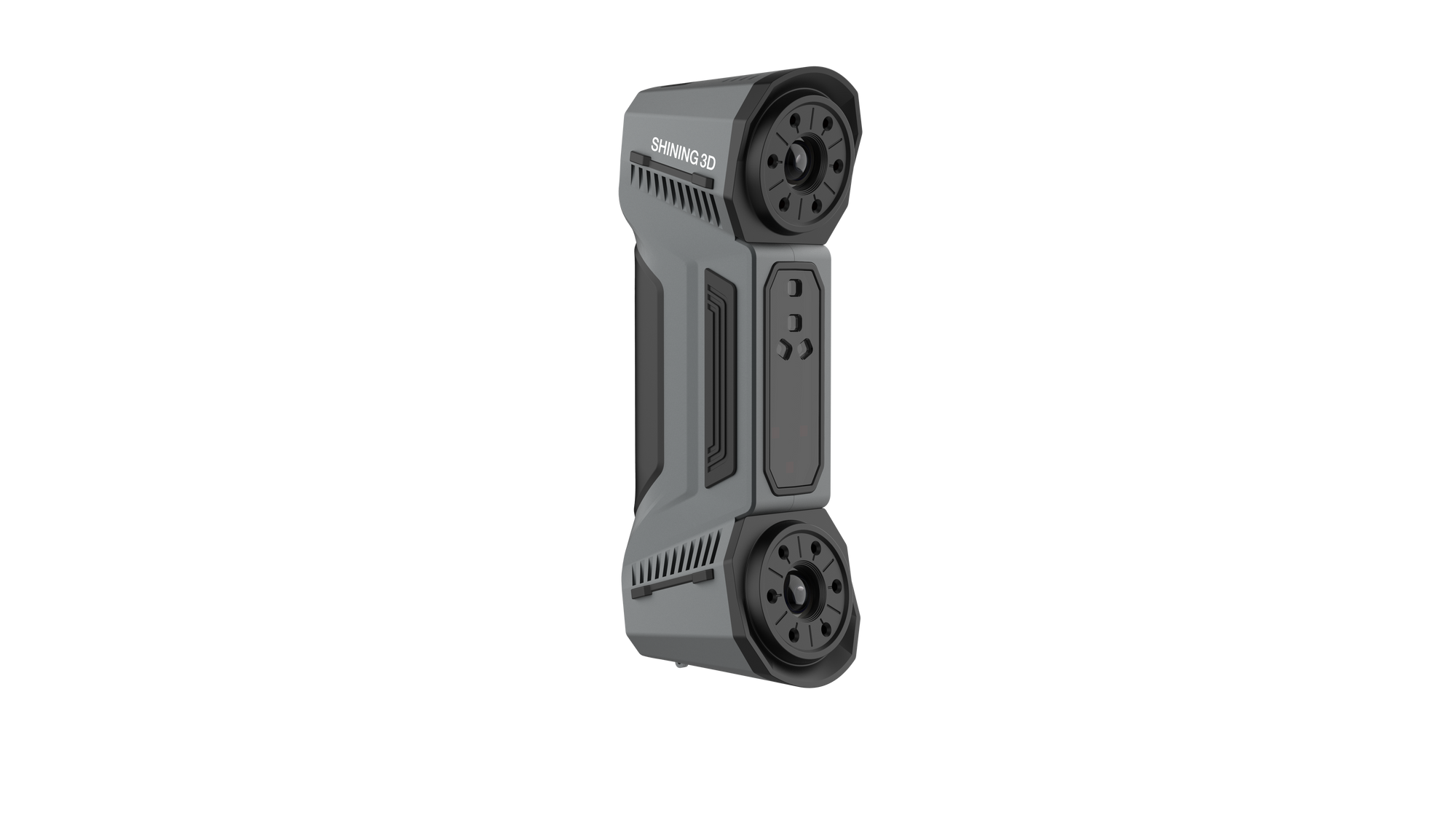

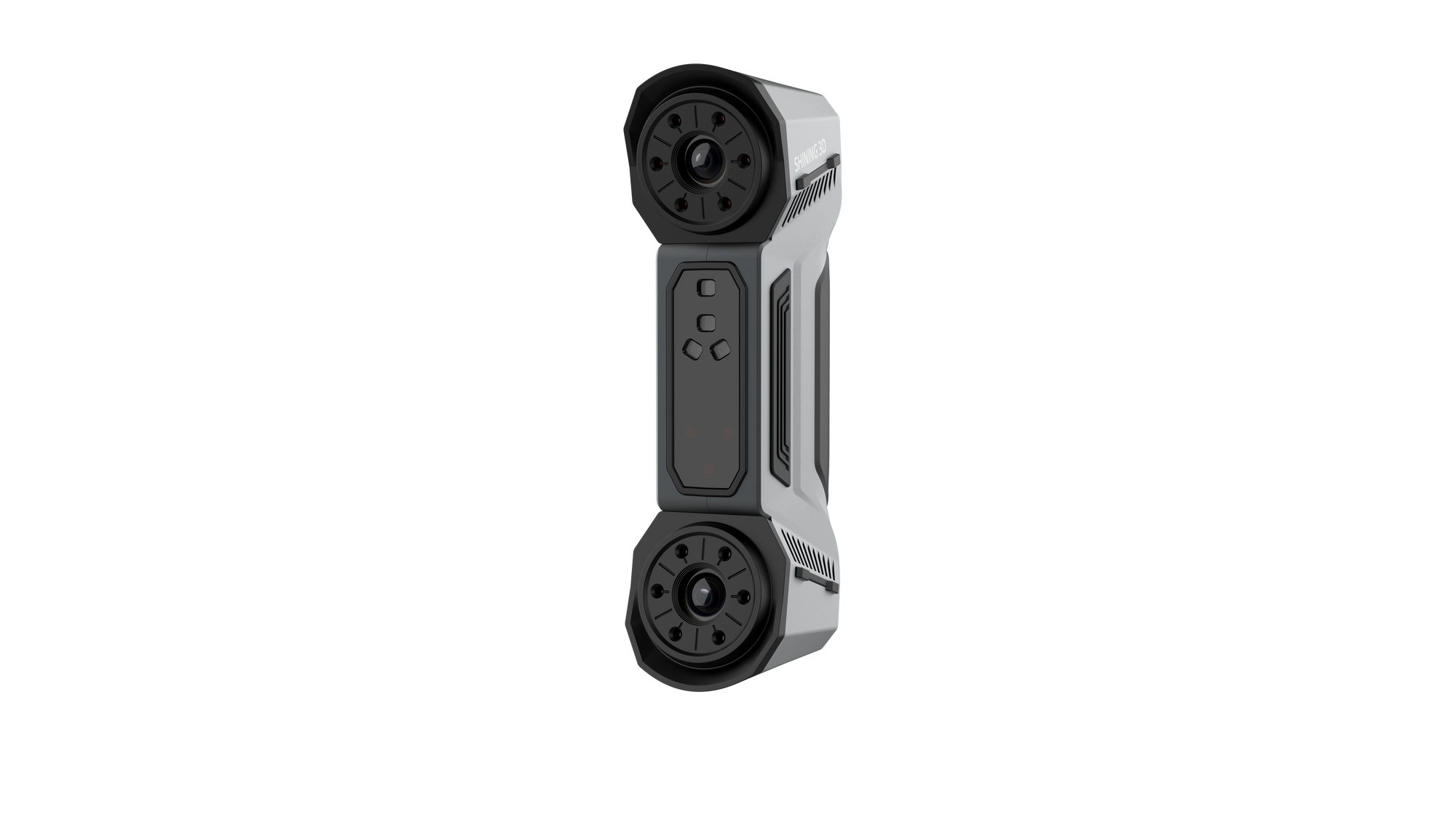

Product detail

Examine the system from every angle.

Review the scanner, turntable, accessories, interfaces, and physical setup before selecting a configuration.

Video library

Watch real scanning and inspection workflows.

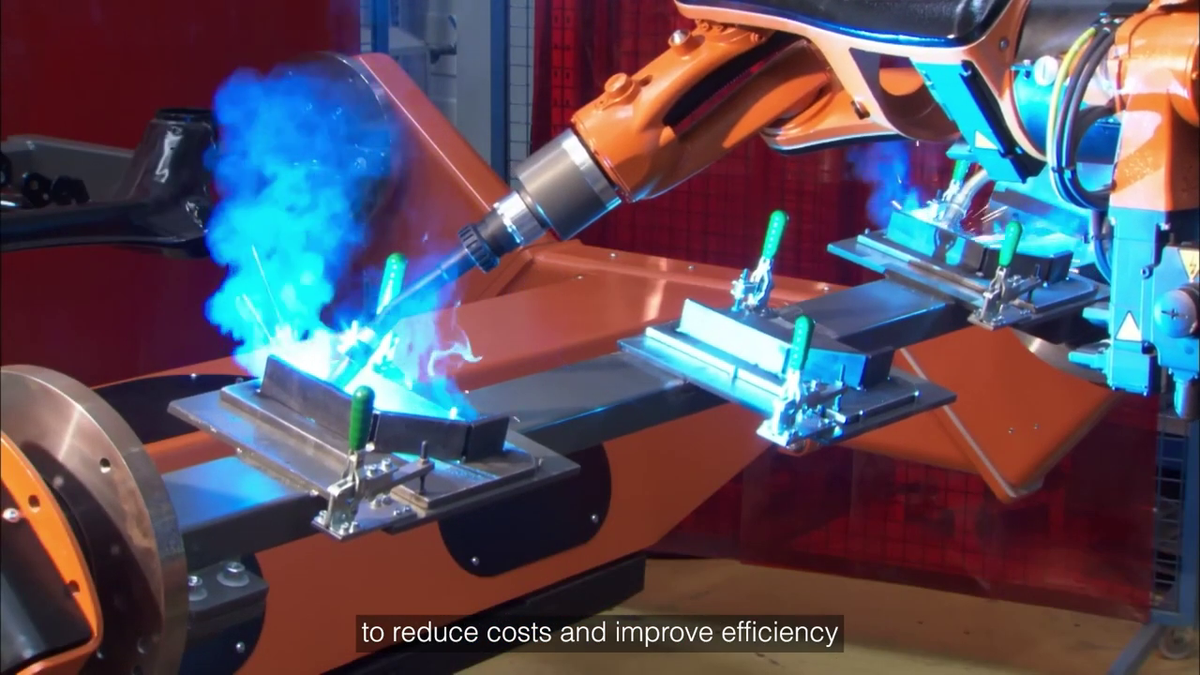

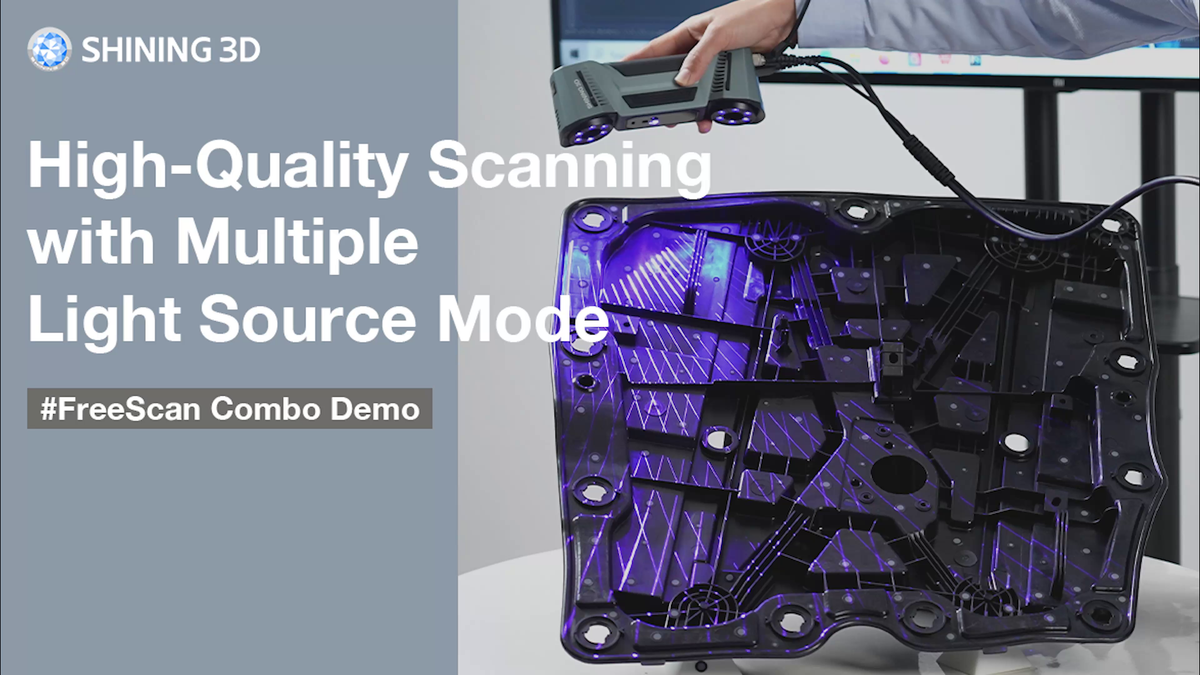

Use the case studies, demonstrations, and tutorials to review the workflow from capture through final output.

Video library

Select a video to begin

Watch demonstrations, tutorials, and real application workflows without leaving the product page.

Technical specifications

Check the specifications before purchase.

Confirm accuracy, field of view, point distance, capture system, outputs, standards, and workstation requirements.

Scanner typeWired handheld hybrid-light metrology 3D scanner
Available scanner modelsFreeScan Combo and FreeScan Combo+
Light sourcesBlue laser and infrared VCSEL
High-speed laser pattern26 laser lines on Combo; 50 laser lines on Combo+
Detailed scan7 parallel laser lines
Deep-feature scan1 single laser line
Marker-free scanInfrared VCSEL mode on feature-rich objects
Maximum laser scan speed1,860,000 points/s on Combo; 3,600,000 points/s on Combo+
Infrared scan speed2,250,000 points/s
Laser scan accuracyUp to 0.02 mm
Laser volumetric accuracy0.02 + 0.033 mm/m
Infrared volumetric accuracy0.05 + 0.1 mm/m
Working distance300 mm in multi-line and single-line modes; 200 mm in detailed mode; 300 mm in infrared mode
Maximum field of view520 × 510 mm in laser modes; 600 × 600 mm in infrared mode
Scan depth360 mm in laser modes; up to 1,240 mm in infrared mode
Point distance0.05 to 10 mm in laser modes; 0.1 to 3 mm in infrared mode
Texture captureNot supported; the scanners do not include a color camera
Included scanning softwareFreeScan software with no ongoing scanning-software subscription
ConnectionUSB 3.0
Power input12 V, 5.0 A
Dimensions193 × 63 × 53 mm
Weight620 g
Light safetyClass II, eye safe
Operating temperature-20 to 40 °C
Operating humidity10% to 90%
Accuracy acceptanceVDI/VDE 2634 Part 3 and ISO 10360; tested in an ISO/IEC 17025 accredited accuracy lab
CertificationsCE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, and TISAX
Component Minimum Recommended
Operating system Not specified Windows 10 or Windows 11, 64-bit
Processor Not specified Intel Core i7-10700 or higher
Memory Not specified 32 GB or more
Graphics Not specified NVIDIA GeForce RTX 3060 or higher
Graphics memory Not specified 6 GB or more VRAM
Connection Not specified USB 3.0

The attached SHINING 3D brochure provides this workstation baseline. Larger scan projects and inspection workloads can benefit from a faster processor, more memory, and a higher-tier NVIDIA GPU.

Download brochure ↗View verified brochure ↗

Interactive results

Review scanned models.

Select a model to load the interactive viewer, or open it directly on Sketchfab.

Optional interactive preview

Industrial Part by FreeScan Combo

The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.

Open on Sketchfab ↗

Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
