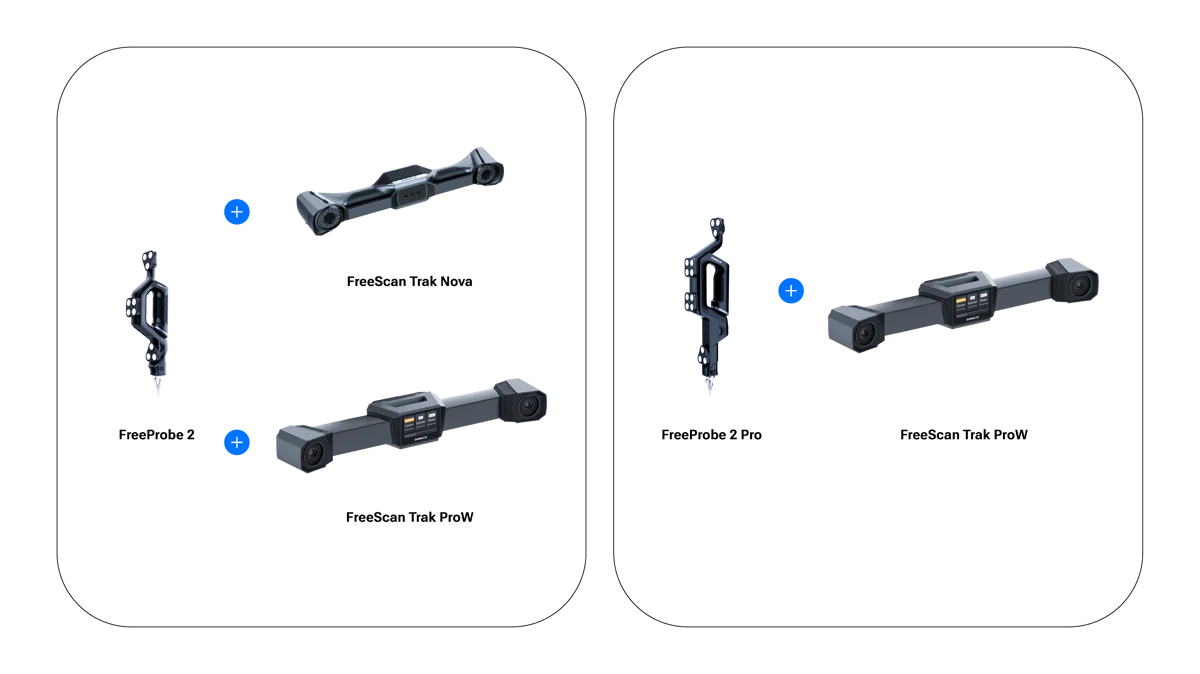

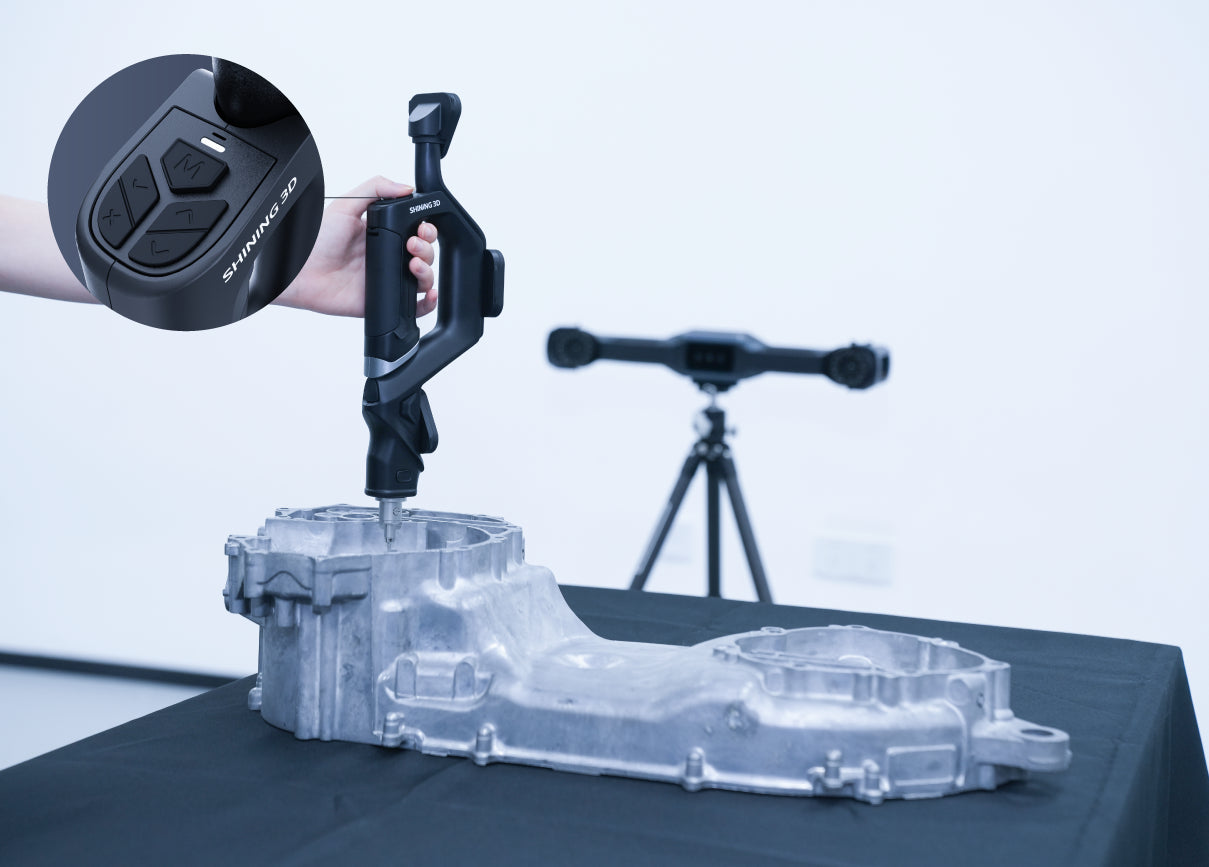

Pair with a compatible FreeScan Trak Nova or FreeScan Trak ProW tracker for wireless probing.
PROFESSIONAL 3D SCANNING
Wireless probing for hard-to-reach features
Evaluate FreeProbe for professional 3D capture and measurement workflows. Select a catalog configuration or request a tailored recommendation based on part size, material, accuracy, and downstream software needs.
Wireless optical tracking probeProduct type
FreeScan Trak Nova and FreeScan Trak ProW; confirm exact system configurationCompatible trackers
0.025 mmProbing accuracy
0.46 kgFreeProbe 2 weight
Guided configuration
Configure the scanner, add-ons, training, and coverage together.
Evaluate FreeProbe for professional 3D capture and measurement workflows. Select a catalog configuration or request a tailored recommendation based on part size, material, accuracy, and downstream software needs.
Select the accessories, training, and protection needed for the intended workflow. Your choices carry into the recommendation request for technical review.
Configuration
Build the system you need.
Select any optional protection, software, accessories, and training.
No compatible catalog references have been assigned yet.
Configured total$7,500.00
Core system only
Checkout and quote actions use the same selected configuration.
Core-system comparison
Understand the differences before configuring.
Model-level differences are separated from compatible software, services, and protection.

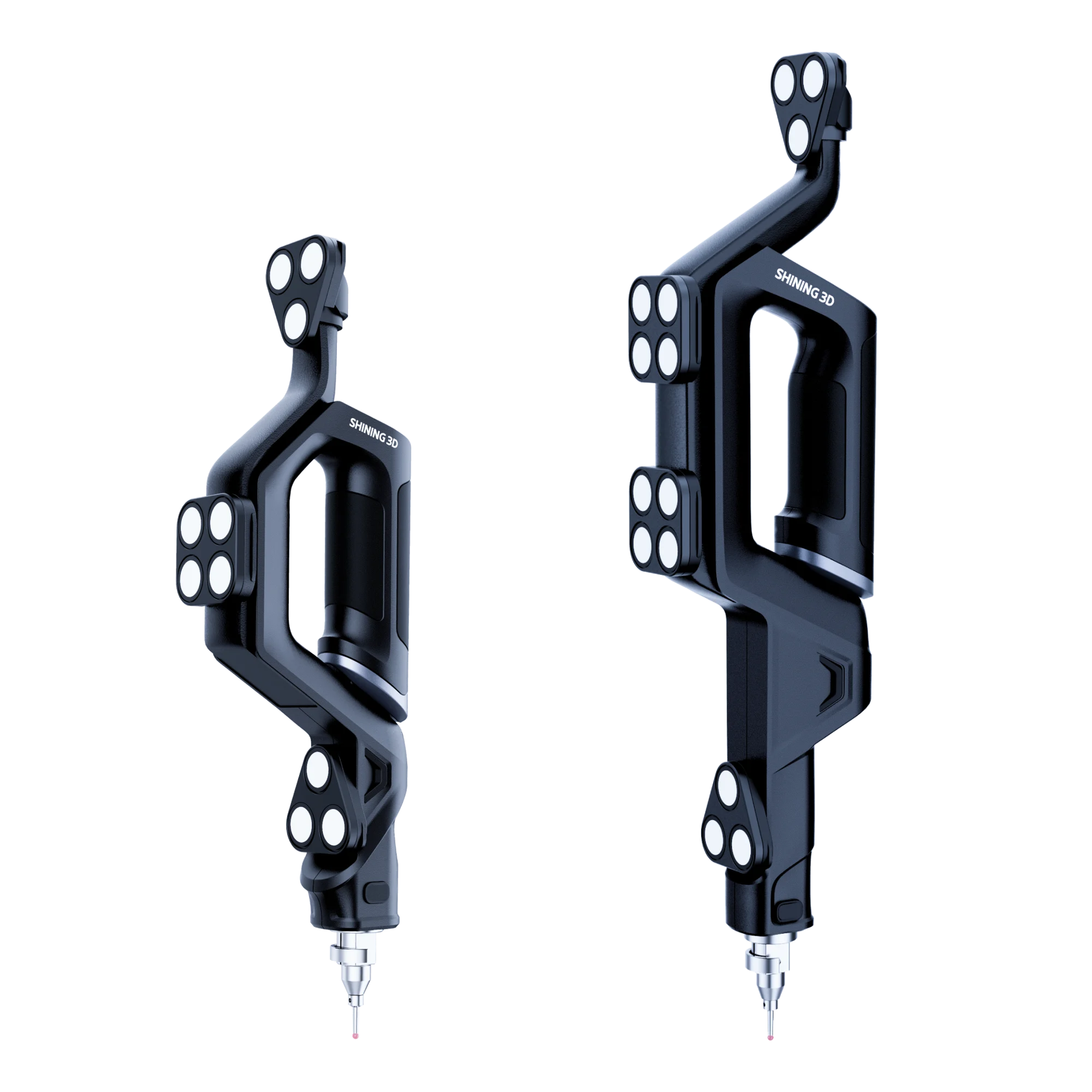

| Decision point | FreeProbe 2 | FreeProbe 2 (6mm) | FreeProbe 2 Pro |
|---|---|---|---|
| Configuration | FreeProbe 2 | FreeProbe 2 with catalog 6 mm tip option | FreeProbe 2 Pro |
| Primary use | Standard probing tasks | Confirm tip fit for the task | Deeper access with partial marker occlusion |
| Tracker required | Compatible FreeScan Trak system | Compatible FreeScan Trak system | Compatible FreeScan Trak system |
Key features
How the system performs in day-to-day use.
Review the features that affect setup time, repeatability, inspection speed, and output quality.
02
Measure discrete features and hidden areas without reconstructing a surface mesh.
03
Adapt probe access with supported extension rods and L-type tip configurations.
04
FreeProbe 2 Pro supports deeper access when some marker plates are partially obscured.
05
Manufacturer specifications state 0.025 mm probing accuracy and ISO 10360 verification.
Application fit
Where this system fits best.
Review the application environments where automation, accuracy, and repeatability create the clearest advantage.
01

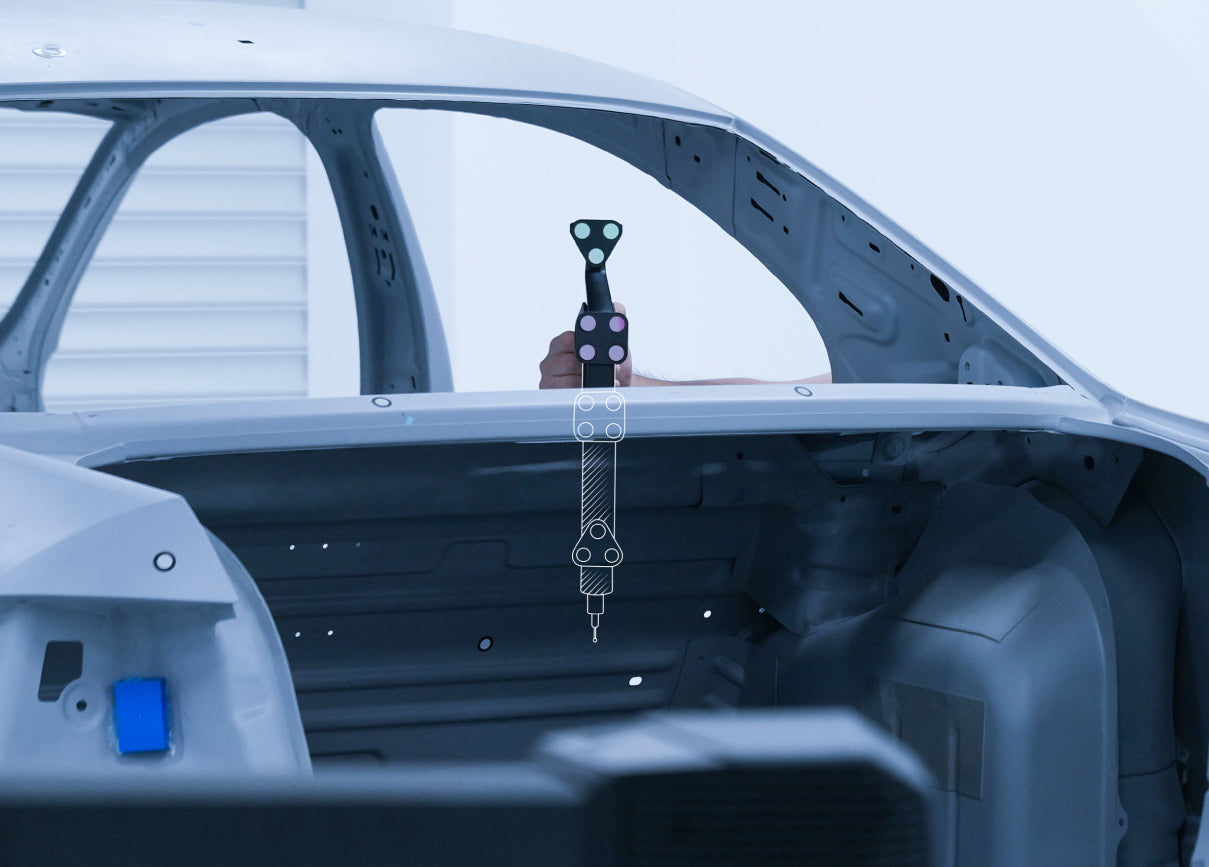

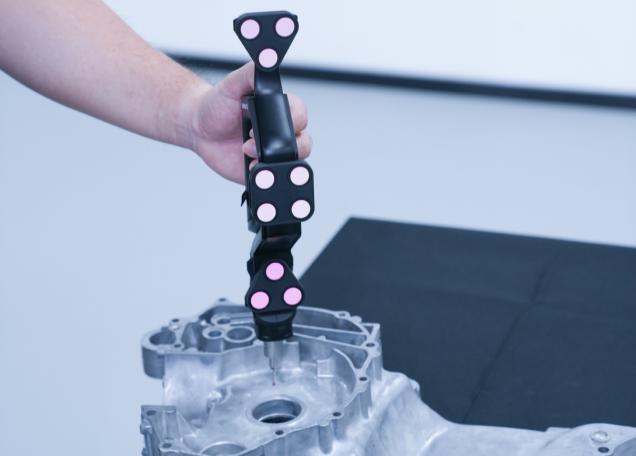

Recessed holes and hidden features
02

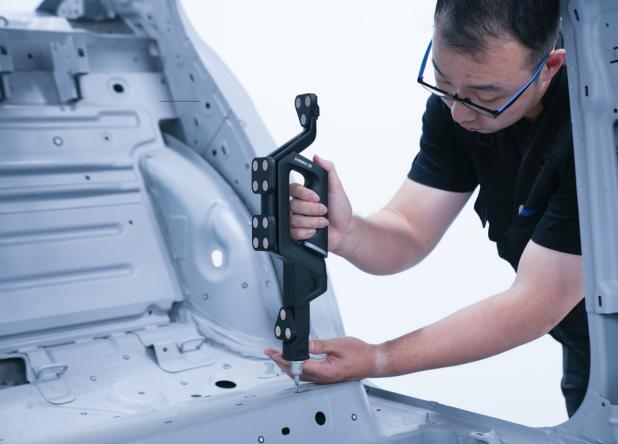

Shop-floor dimensional checks
03
Features with obstructed optical access
Product media
Inspect the equipment and included system visually.
Product detail
Examine the system from every angle.
Review the scanner, turntable, accessories, interfaces, and physical setup before selecting a configuration.
Technical specifications
Check the specifications before purchase.
Confirm accuracy, field of view, point distance, capture system, outputs, standards, and workstation requirements.
Product typeWireless optical tracking probe
Compatible trackersFreeScan Trak Nova and FreeScan Trak ProW; confirm exact system configuration
Probing accuracy0.025 mm

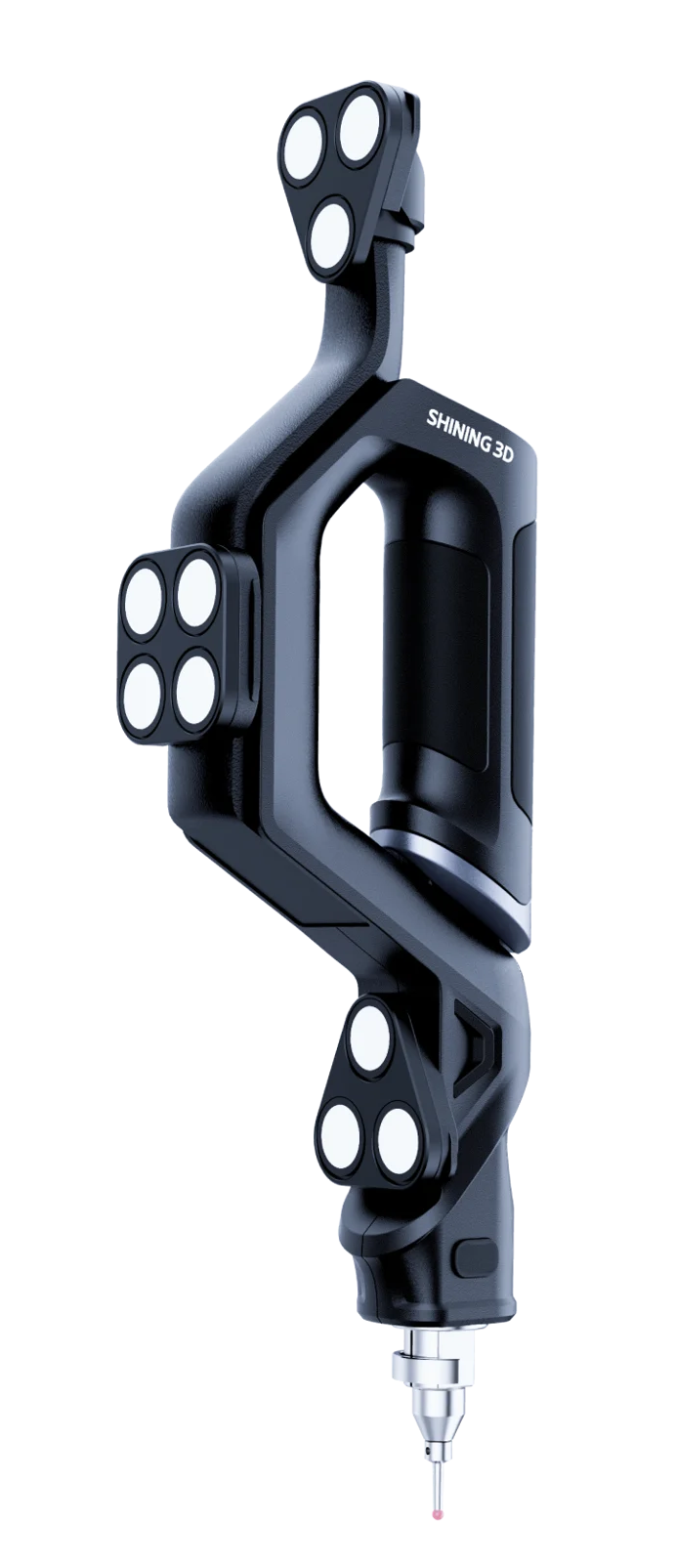

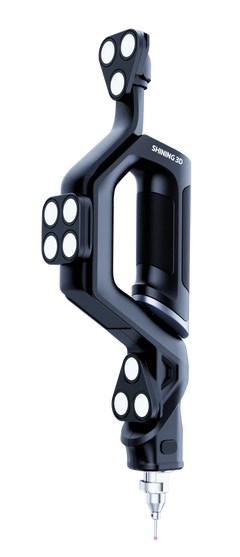

FreeProbe 2 weight0.46 kg

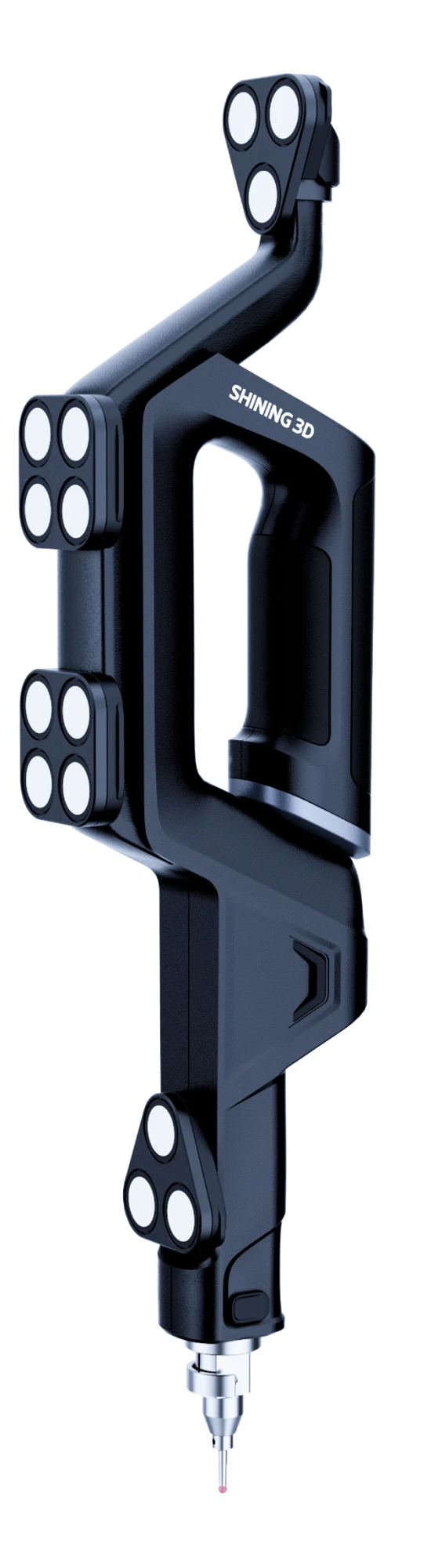

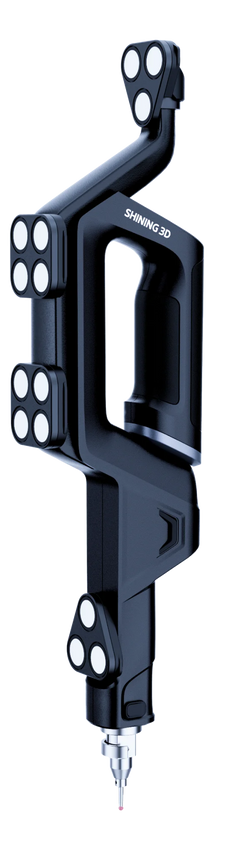

FreeProbe 2 Pro weight0.59 kg
FreeProbe 2 dimensions50 × 110 × 363 mm
FreeProbe 2 Pro dimensions50 × 113.5 × 454.5 mm
Accuracy verificationISO 10360; tested in the manufacturer ISO/IEC 17025 accredited accuracy laboratory

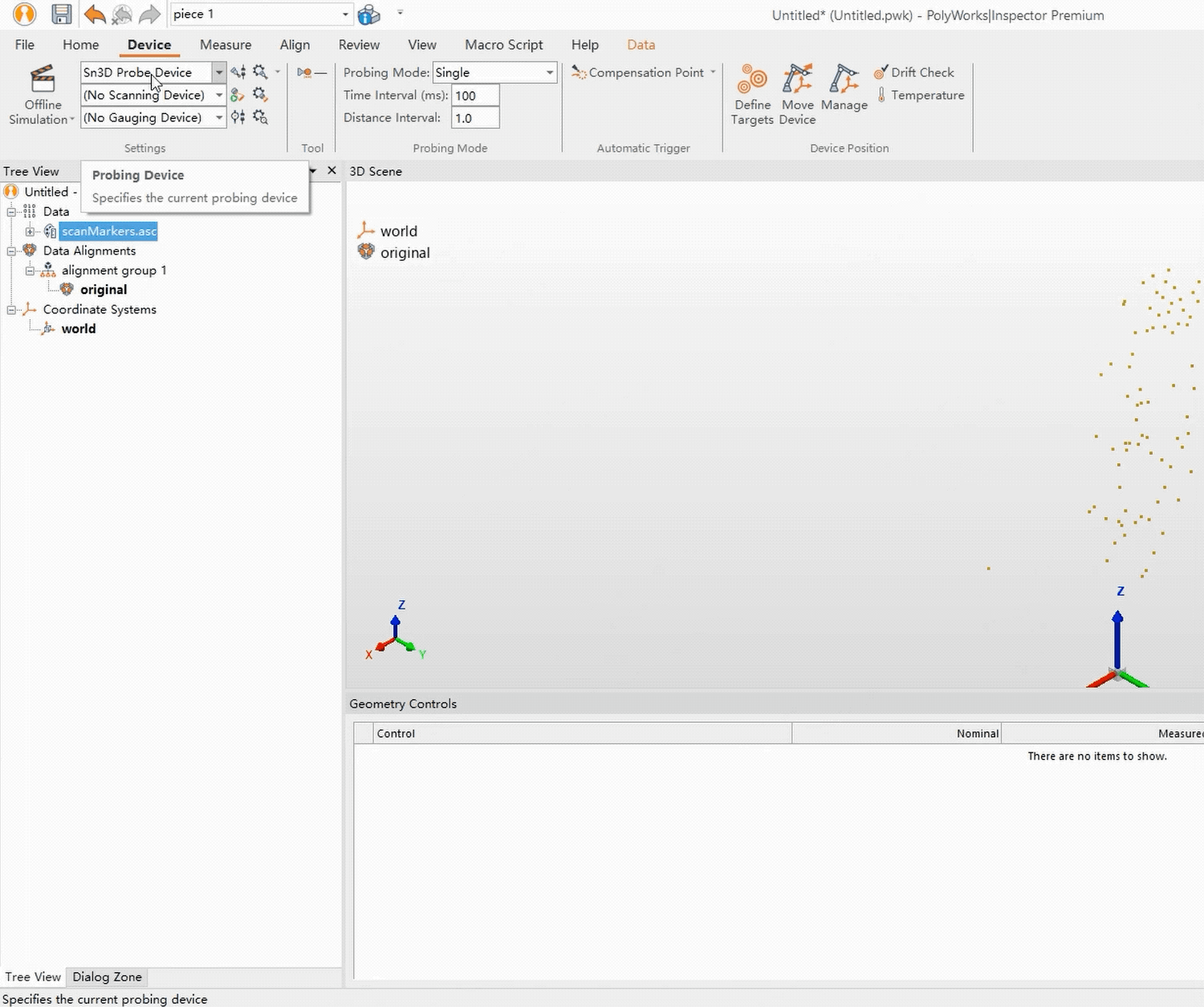

Compatible inspection softwareSHINING3D Inspect, PolyWorks and Geomagic Control X; verify licenses and integration
| Component | Minimum | Recommended |
|---|---|---|
| Tracking system | Not specified | Compatible FreeScan Trak Nova or FreeScan Trak ProW system |
| Inspection software | Not specified | Confirm a supported inspection application and its probe integration |
| Workstation | Not specified | Use the requirements of the selected tracker and inspection software |
The probe is a system accessory. A compatible tracker and required software are supplied separately unless included in the configured quote.
