Scan wirelessly to a PC through built-in Wi-Fi, with USB Type-C available when needed

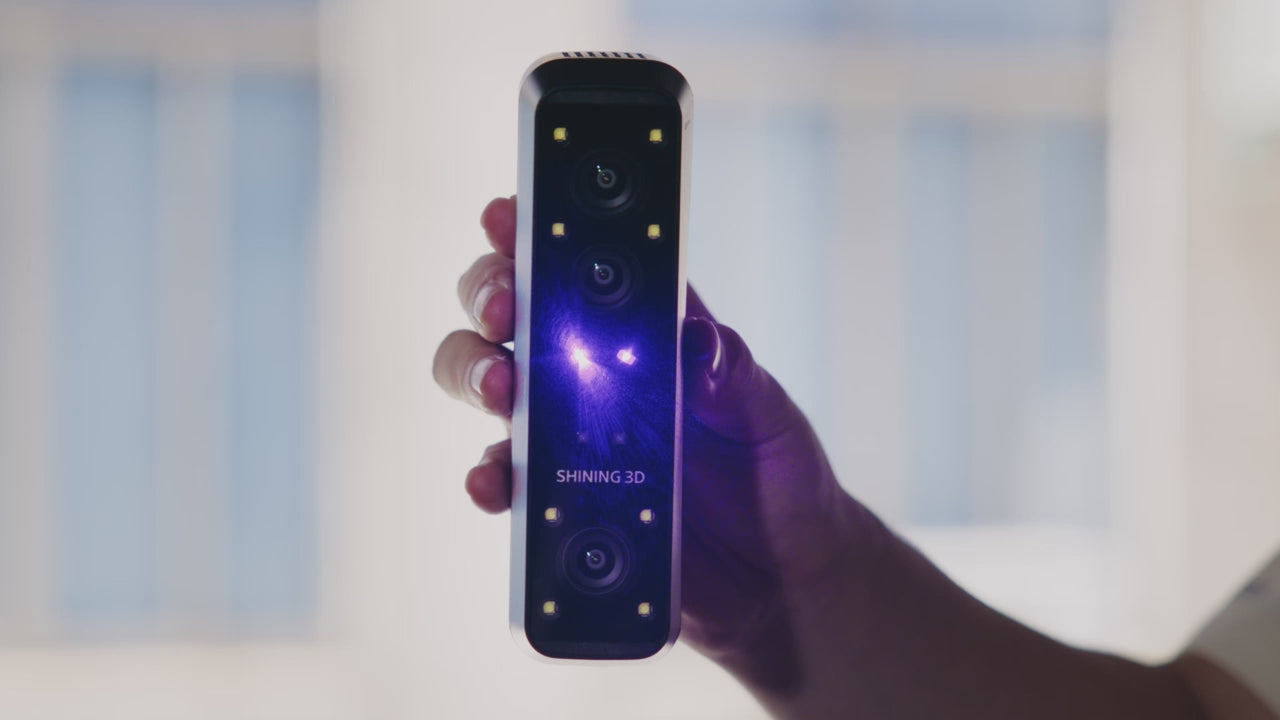

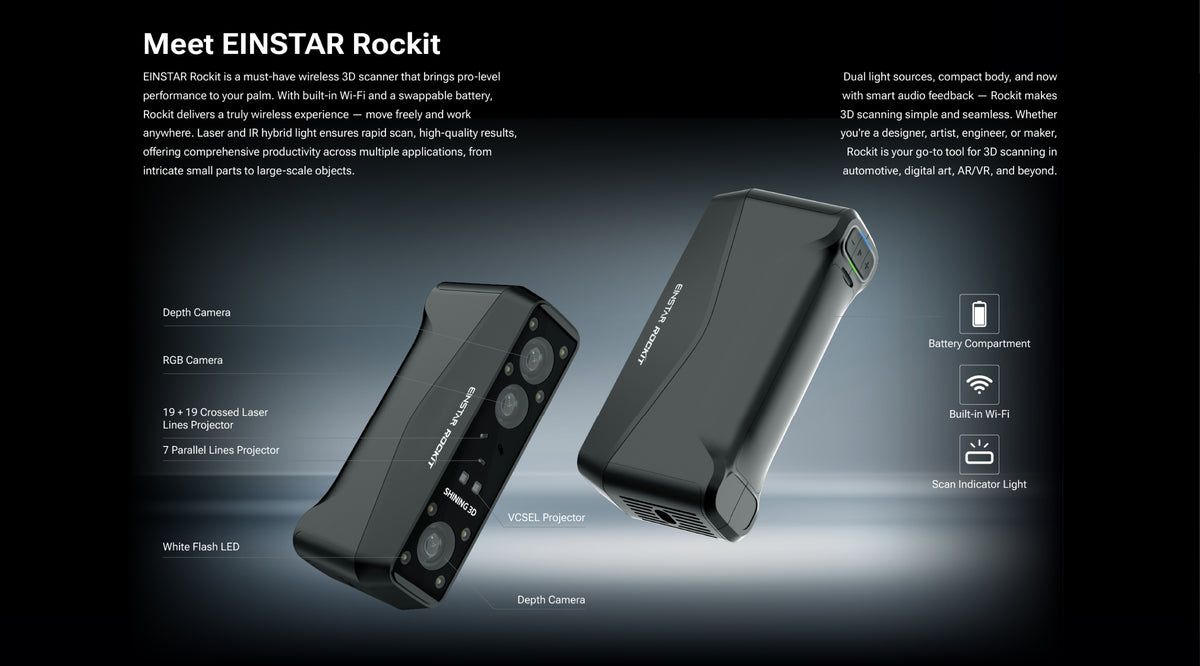

WIRELESS BLUE LASER AND IR 3D SCANNER
Pocket-size scanning for small parts, vehicles, people, and field work
Laser HD and IR RapidScan modes
38 crossed blue laser lines (19 + 19) and 7 parallel blue laser linesLaser HD light source
Infrared VCSELIR Rapid light source
Package contents
Know exactly what arrives.
Verify everything included in the standard EINSTAR Rockit 3D Scanner package before checkout.
01
EINSTAR Rockit Standard Package
Scanner, calibration tools, power components, markers, and carrying protection.
- EINSTAR Rockit 3D scanner
- Carrying case
- Calibration board
- Universal holder for the calibration board
- Power adapter
- Rechargeable 5500 mAh battery
- Battery compartment
- Battery-compartment charging cable
- Type-C cable for the scanner and battery compartment
- 3 mm and 6 mm reflective markers
- Wrist strap
- Packing list
- EXStar Hub software download
The manufacturer presents a rechargeable battery in the standard package, while regional FAQ wording can differ on battery quantity. Confirm the final regional package and plug type before fulfillment.
What changes in your workflow
From desktop scan to a usable 3D model.
Follow a clear workflow from setup and capture through mesh processing and export.
02

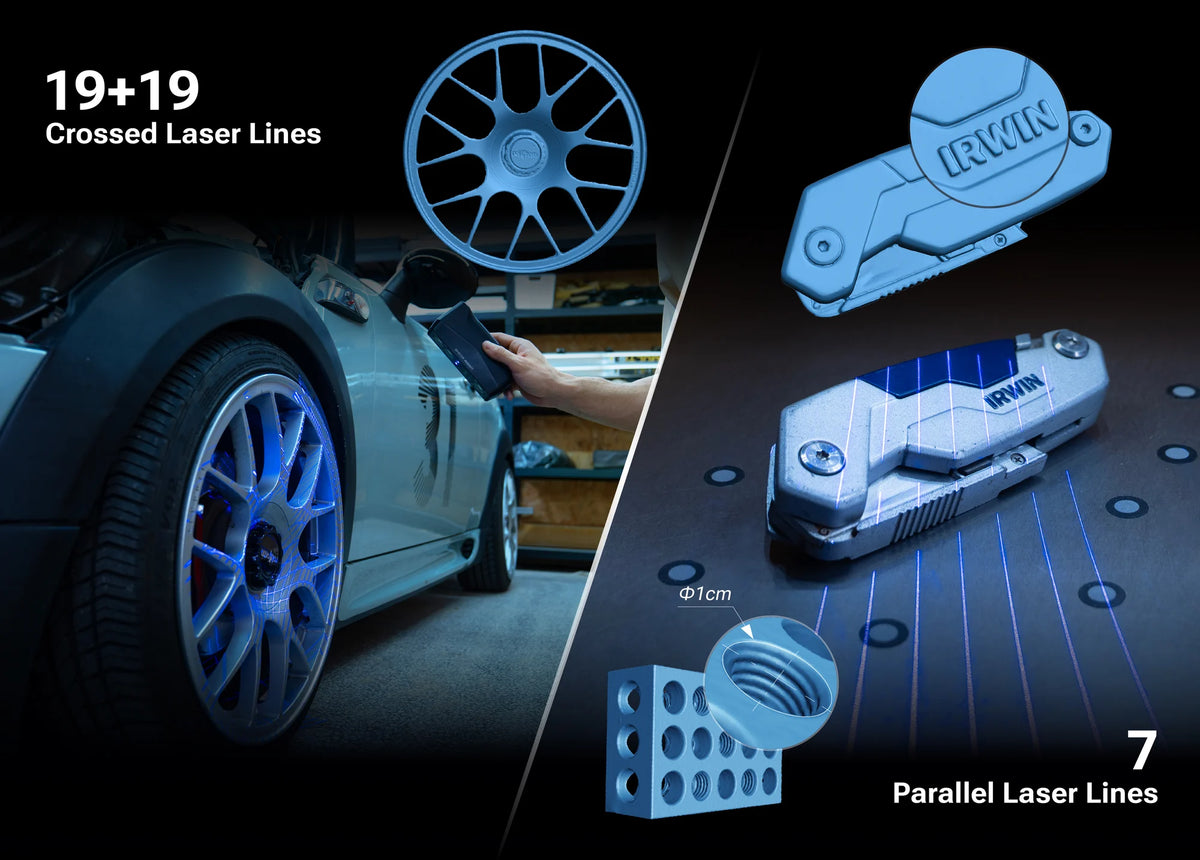

Capture fast, wide-area geometry with 38 crossed blue laser lines
03

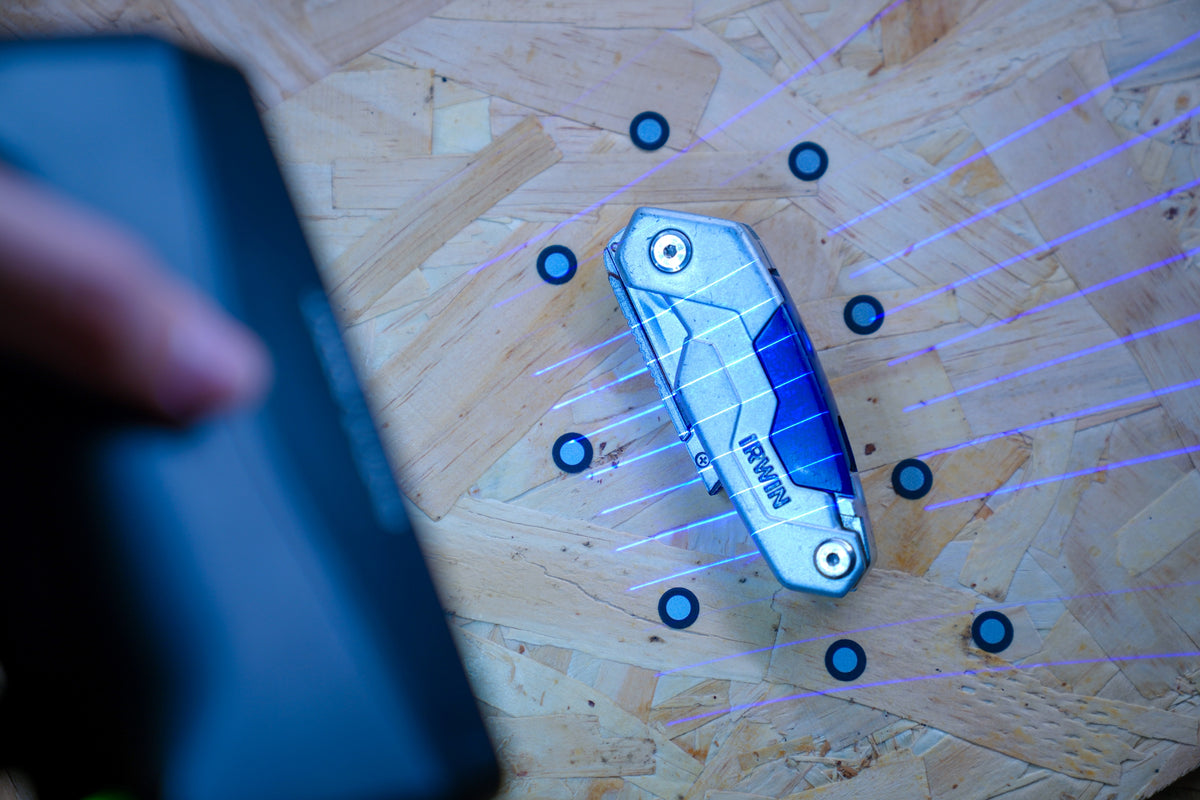

Resolve fine features and deep holes with 7 parallel blue laser lines
04

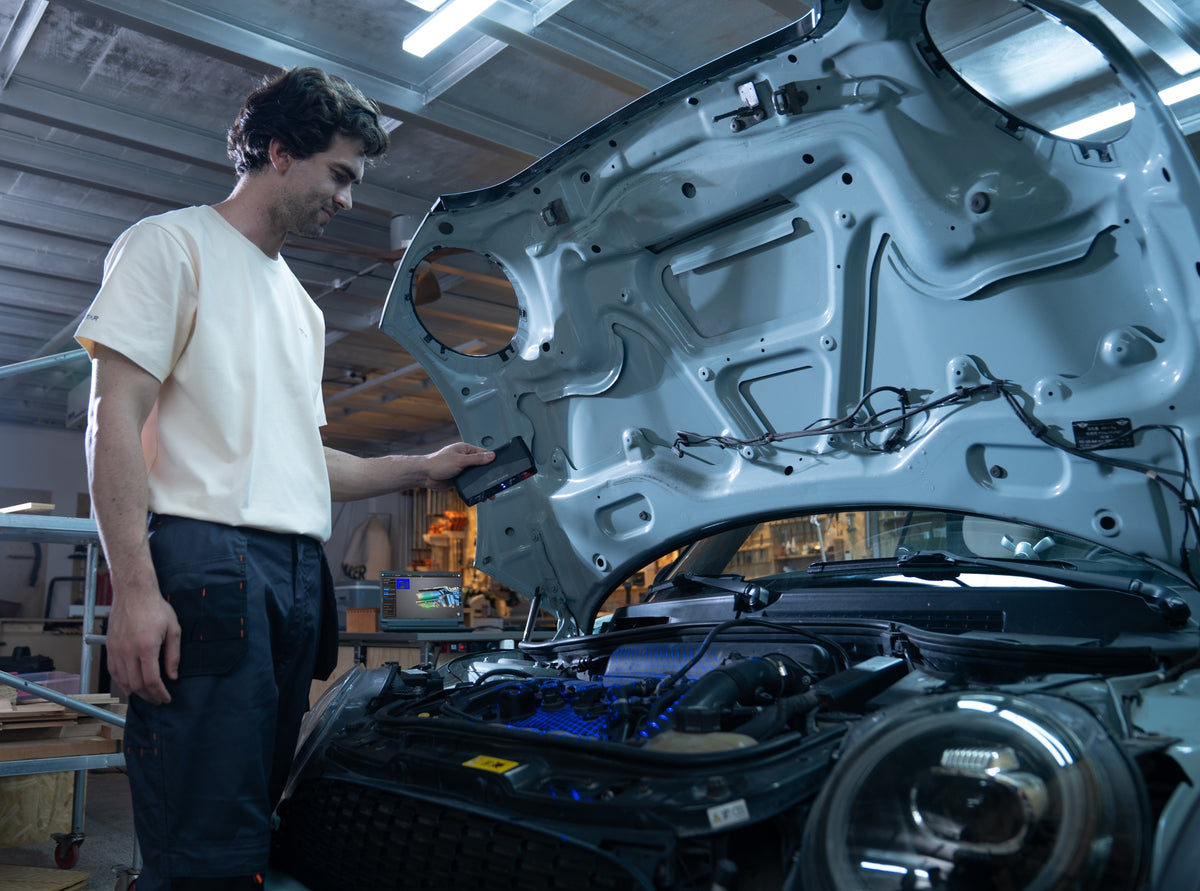

Scan feature-rich objects without markers in Laser HD mode
05
Use IR Rapid for efficient medium-to-large-object and human scanning
06

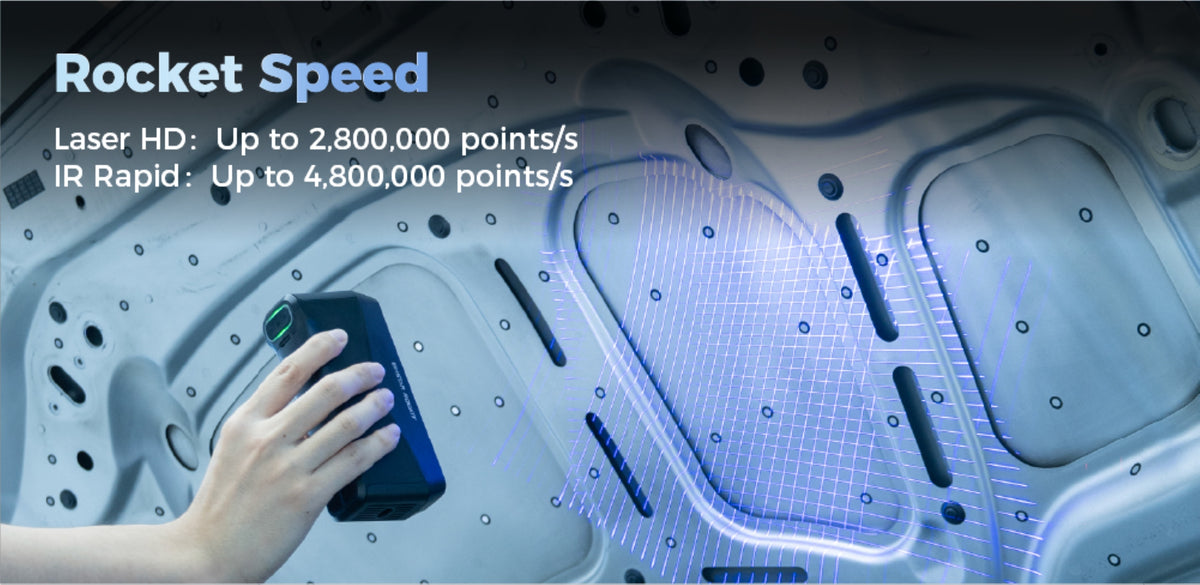

Capture up to 2,800,000 points/s in Laser HD and 4,800,000 points/s in IR Rapid
07
Resolve surface detail down to 0.05 mm in Laser HD
08
Record full-color texture with the built-in 5 MP camera
From scan to outcome
Capture, process, and move downstream.
Take the object from repeatable desktop capture through mesh preparation and into visualization, 3D printing, or engineering software.
Review technical specifications →Application fit
Where this scanner fits best.
Review the parts, settings, and downstream uses that match this scanner.
01
Reverse engineering and product design
02

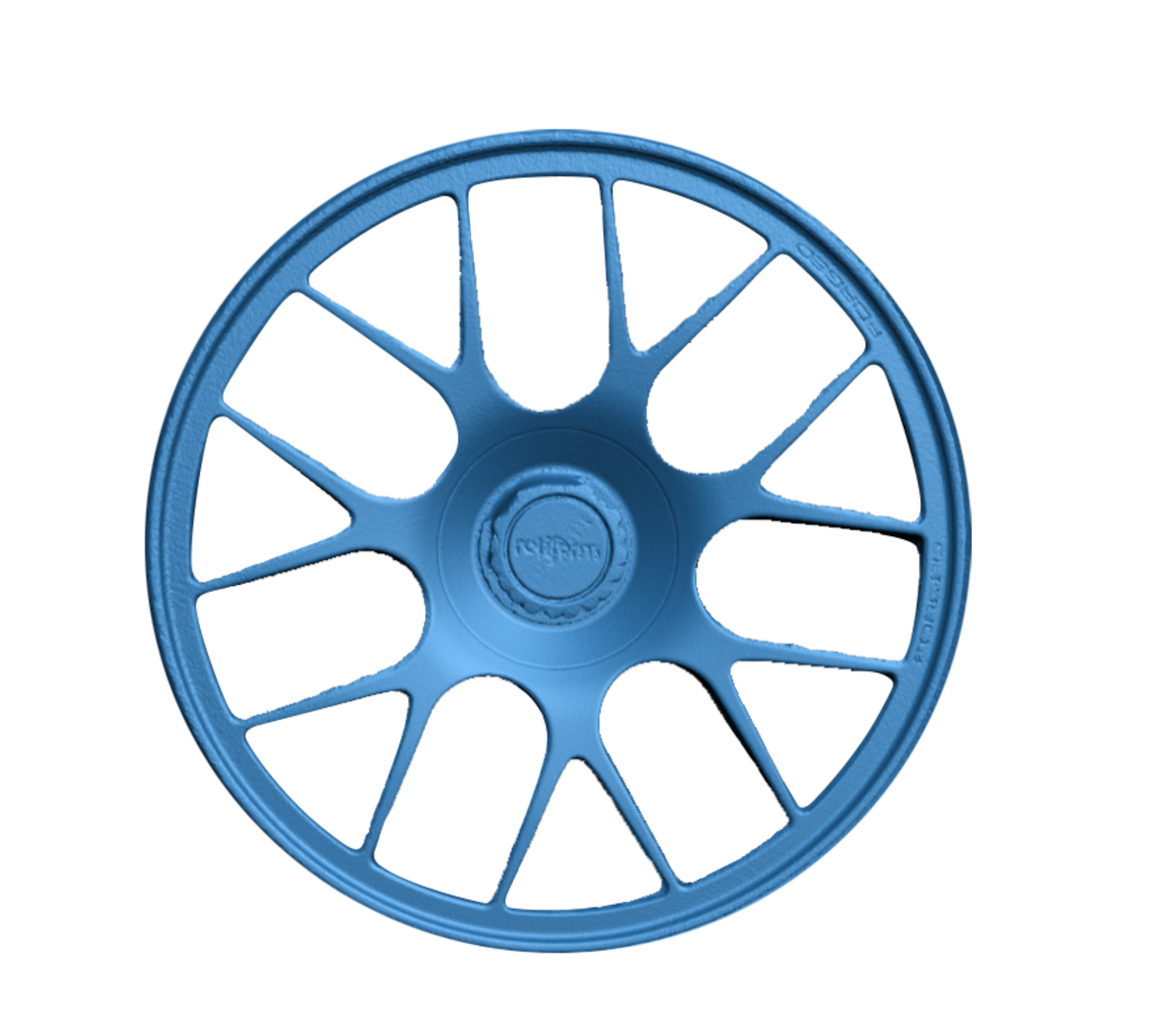

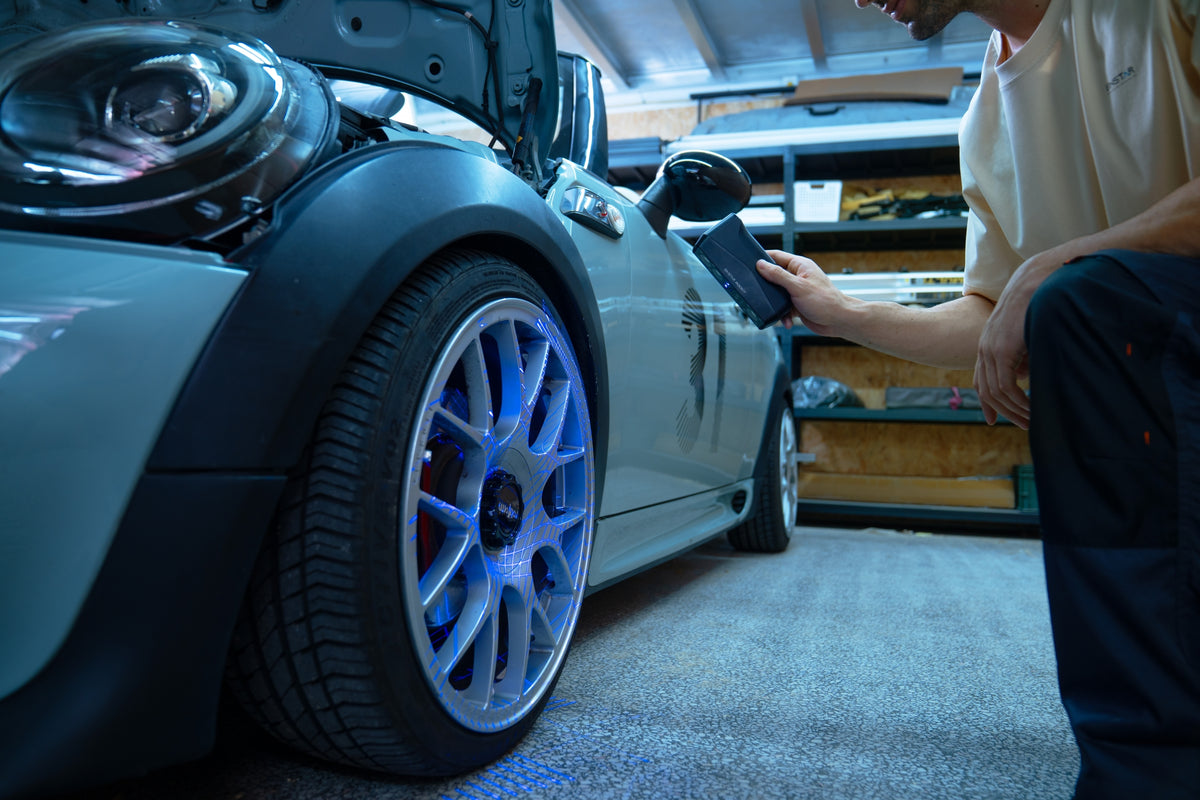

Automotive aftermarket parts and vehicle capture
03
3D printing and personal manufacturing
04
Digital art, sculpture, and cultural heritage
Video library
See the system in real workflows.
Use the demonstrations, tutorials, and application stories to review setup, scanning, and output.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Check the specifications before purchase.
Review the measurement, capture, output, and operating requirements before committing.
Scan modesLaser HD and IR Rapid
Laser HD light source38 crossed blue laser lines (19 + 19) and 7 parallel blue laser lines
IR Rapid light sourceInfrared VCSEL
Laser HD resolution0.05–10 mm
IR Rapid resolution0.2–10 mm
Laser HD scanning speedUp to 2,800,000 points/s
IR Rapid scanning speedUp to 4,800,000 points/s
Crossed-laser working distance100–600 mm
Parallel-laser working distance100–400 mm
IR Rapid working distance160–1400 mm
Crossed-laser maximum field of view545 × 620 mm
Parallel-laser maximum field of view355 × 425 mm
IR Rapid maximum field of view1170 × 1385 mm
Laser HD alignmentGlobal marker, markers, and features
IR Rapid alignmentGlobal marker, markers, features, texture, and hybrid
Minimum scan volumeLaser HD: 5 × 5 × 5 mm; IR Rapid: 50 × 50 × 50 mm
3D cameras2 MP × 2
Texture camera5 MP
Output formatsSTL, OBJ, PLY, 3MF, and ASC
Laser classClass 2
Outdoor illuminanceLaser HD: below 110,000 lux; IR Rapid: below 70,000 lux
Operating temperature-10–40 °C
InterfaceUSB Type-C
Wireless connectionBuilt-in Wi-Fi connection to a PC
BatterySwappable 5500 mAh battery; up to 3 hours runtime
ChargingSupports 60 W USB-C PD 3.0 charger
Dimensions130 × 37 × 61 mm
Net weight425 g with battery; 353 g without battery
CertificationsCE, FCC, RoHS, WEEE, FDA, SRRC, and IP50
Included scanning softwareEXStar Hub
| Component | Minimum | Recommended |
|---|---|---|
| Windows operating system | Windows 11 Professional 22H2, 64-bit | Windows 11 Professional 22H2, 64-bit |
| Processor | 13th Gen Intel Core i7-13700H or above | 13th Gen Intel Core i7-13700H or above |
| Graphics | NVIDIA GeForce RTX 3060 Laptop GPU or above | NVIDIA GeForce RTX 3060 Laptop GPU or above |
| Video memory | 6 GB | 6 GB or more |
| System memory | 32 GB DDR5 dual-channel | 64 GB or more DDR5 dual-channel |
| Computer interface | USB 3.0 | USB 3.0 or built-in Wi-Fi connection |
| macOS | macOS Tahoe 26.2; MacBook Pro M1 or Mac M3 and above; 16 GB RAM | macOS Tahoe 26.2; MacBook Pro M3 Max or Ultra and above; 24 GB RAM or more |
The manufacturer specifies a high-performance workstation for Rockit. Confirm EXStar Hub compatibility with the exact computer and operating-system version before purchase.
Interactive scan results
Review scanned models.
Select a model to load the interactive viewer, or open it directly on Sketchfab.
Optional interactive preview
Shining mascot coin
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
CARWARP xingtong
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
David colorful sculpture
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview

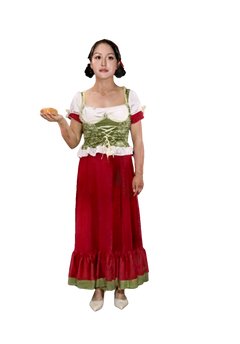

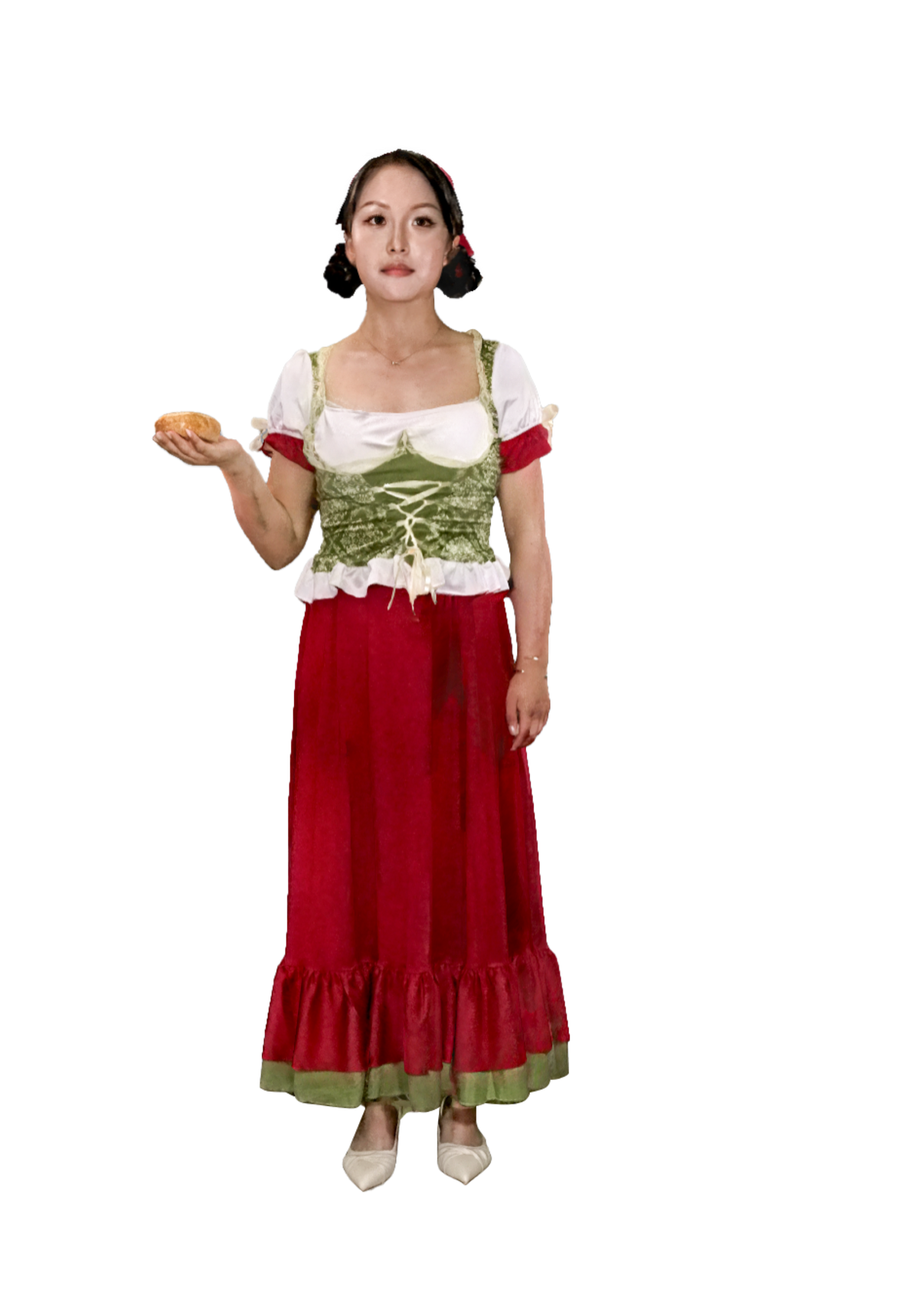

A girl in Spanish costume
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Number of engine
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview

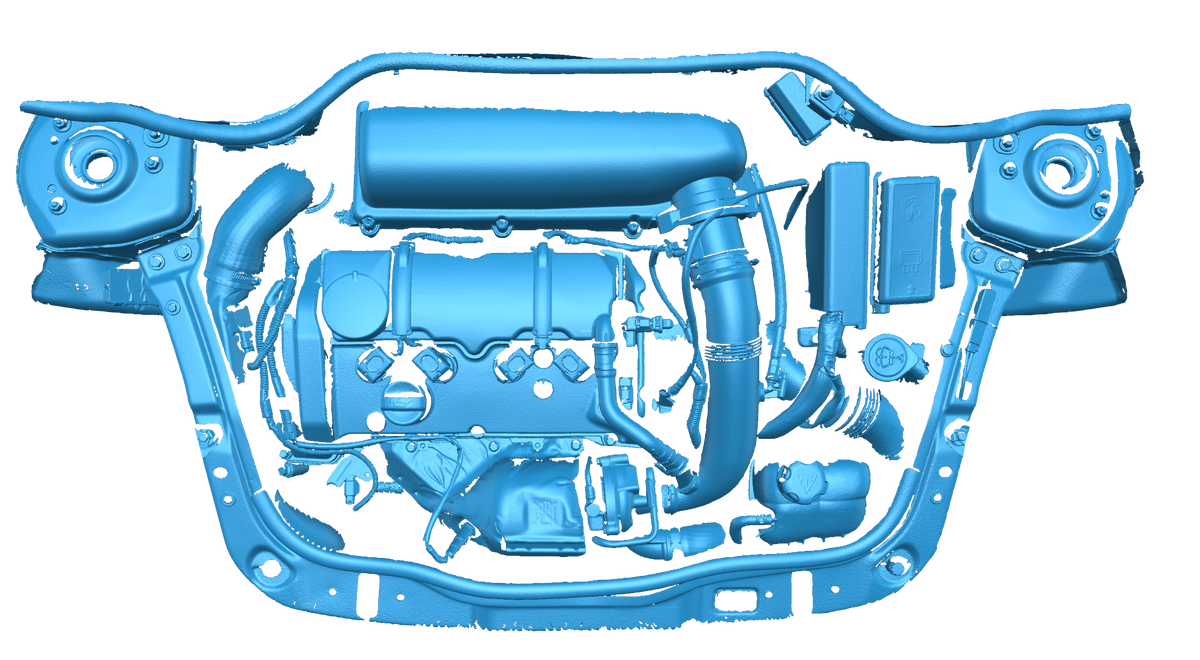

Enginebay-mini
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Knife
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
Next step
Buy online or request a formal quote.
Use secure checkout for this scanner. Request a quote when you need a formal document, software, training, or procurement support.
