Scan wirelessly to a PC through built-in Wi-Fi, with USB Type-C available when needed
TRUE WIRELESS HYBRID 3D SCANNER
Smarter, lighter scanning for fine parts, vehicles, people, and outdoor work
Laser HD and IR RapidScan modes
17 parallel blue laser linesLaser HD light source
Infrared VCSELIR Rapid light source
0.05–10 mmLaser HD resolution
Guided configuration
Configure the scanner, software, training, and coverage together.

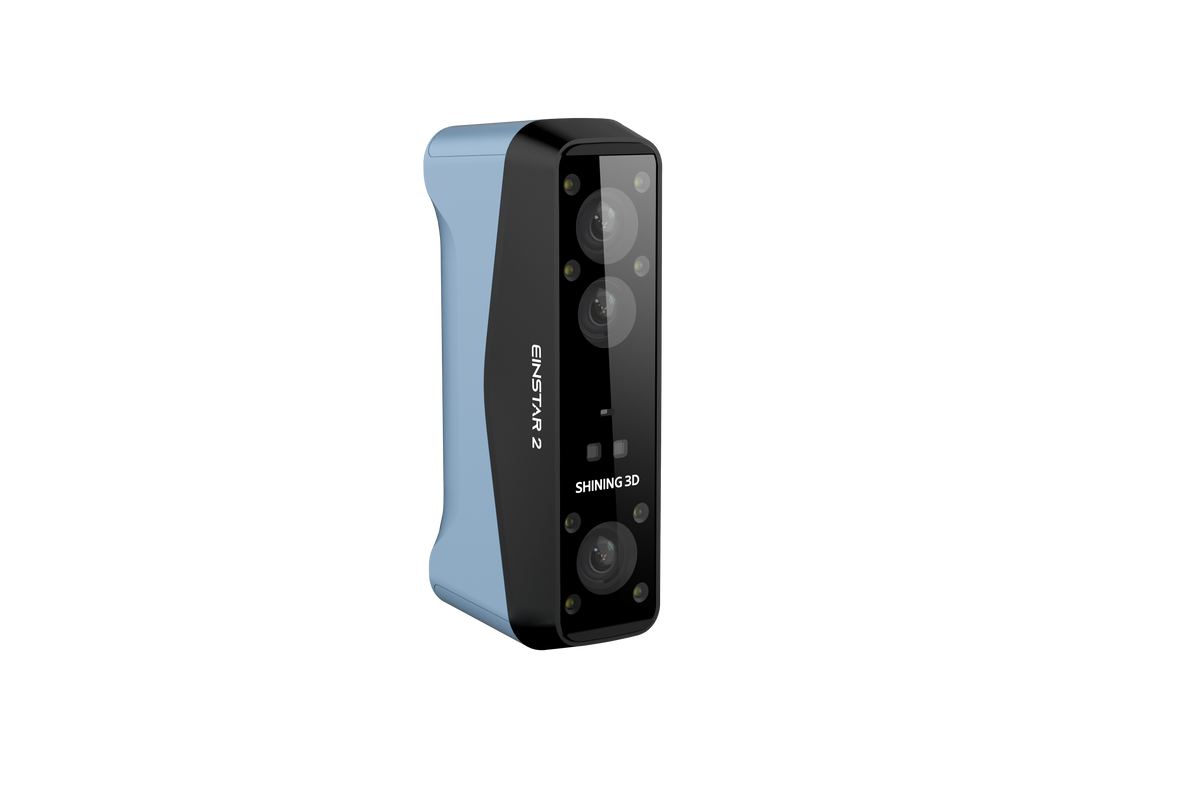

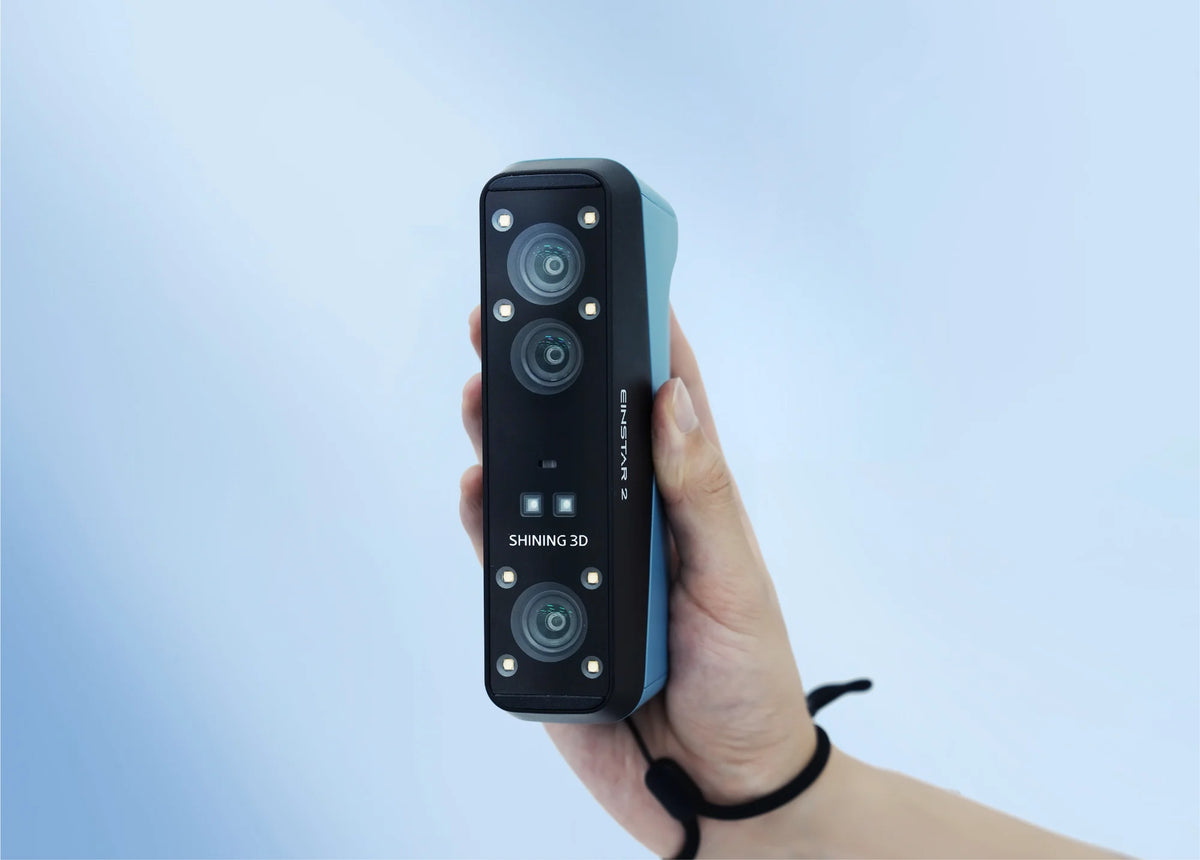

EINSTAR 2 is a true-wireless, PC-connected handheld 3D scanner that combines 17 parallel blue laser lines with infrared VCSEL capture. It moves from fine mechanical details and reflective parts to vehicles, people, artwork, and outdoor subjects in one compact system.
Laser HD mode resolves detail down to 0.05 mm and captures up to 2,500,000 points per second. IR Rapid reaches up to 4,800,000 points per second for efficient medium-to-large-object and portrait scanning. The integrated 2.3 MP color camera records realistic texture for full-color models.

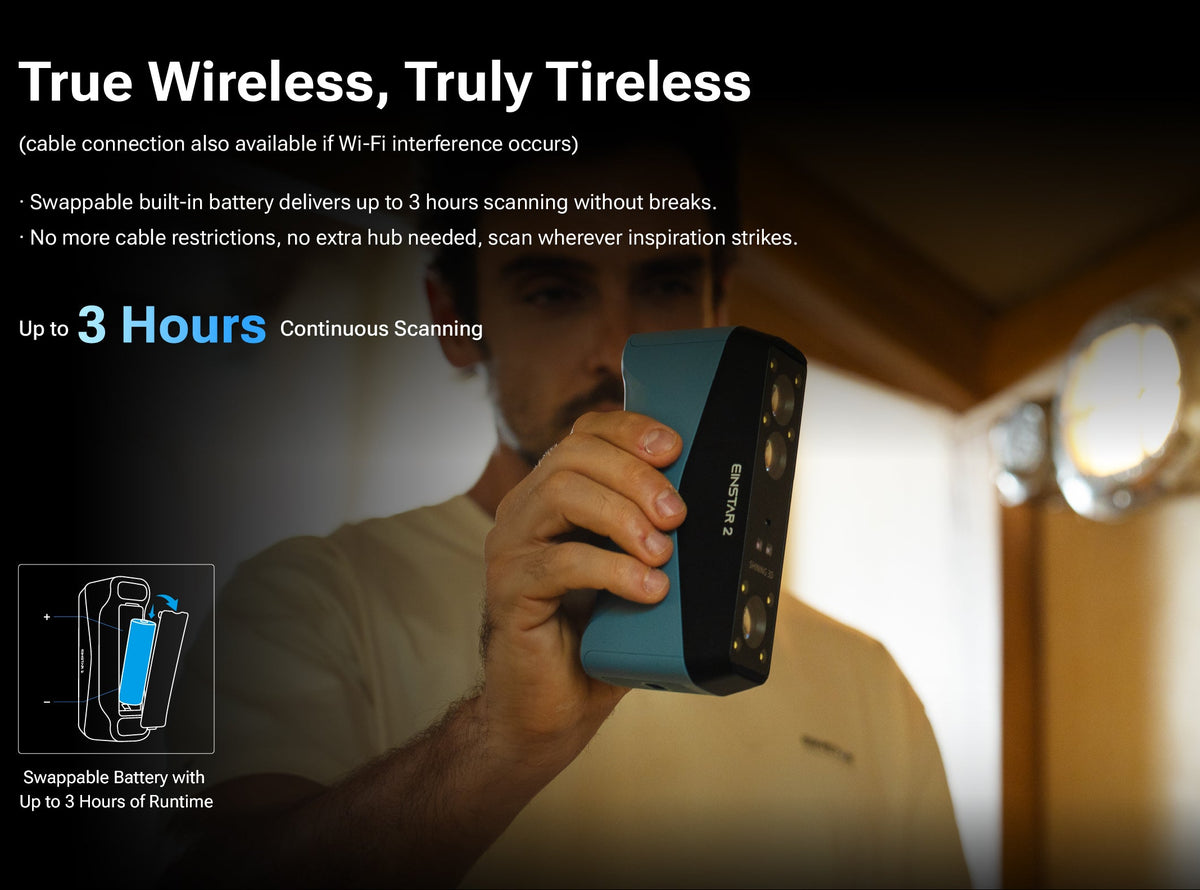

Built-in Wi-Fi removes the need for a separate wireless hub, while USB Type-C remains available when interference makes a cable preferable. The swappable 5500 mAh battery supports up to three hours of scanning, and the scanner weighs 420 g with the battery installed.

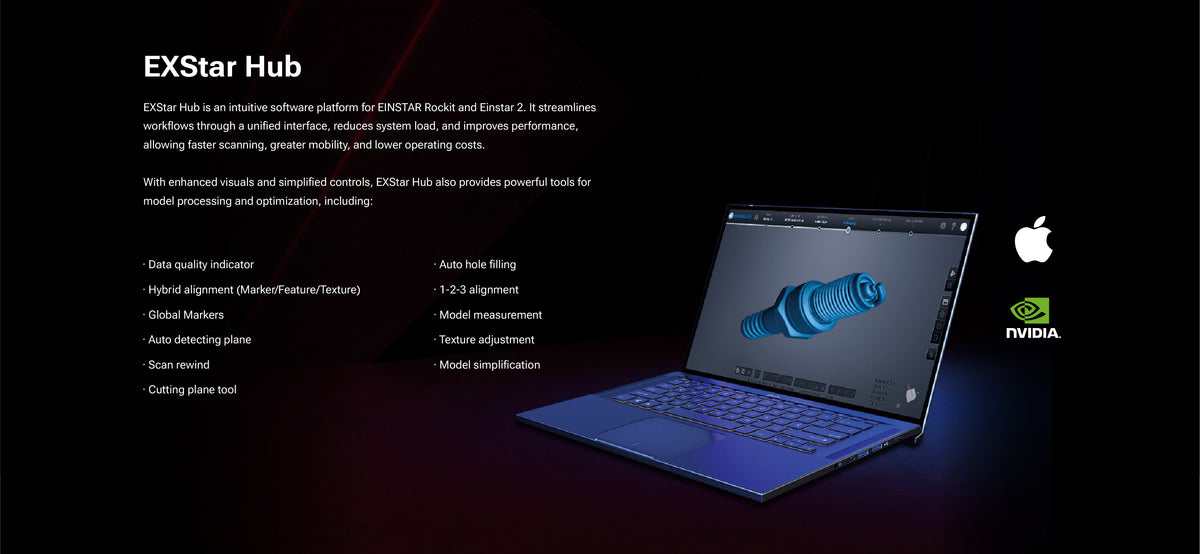

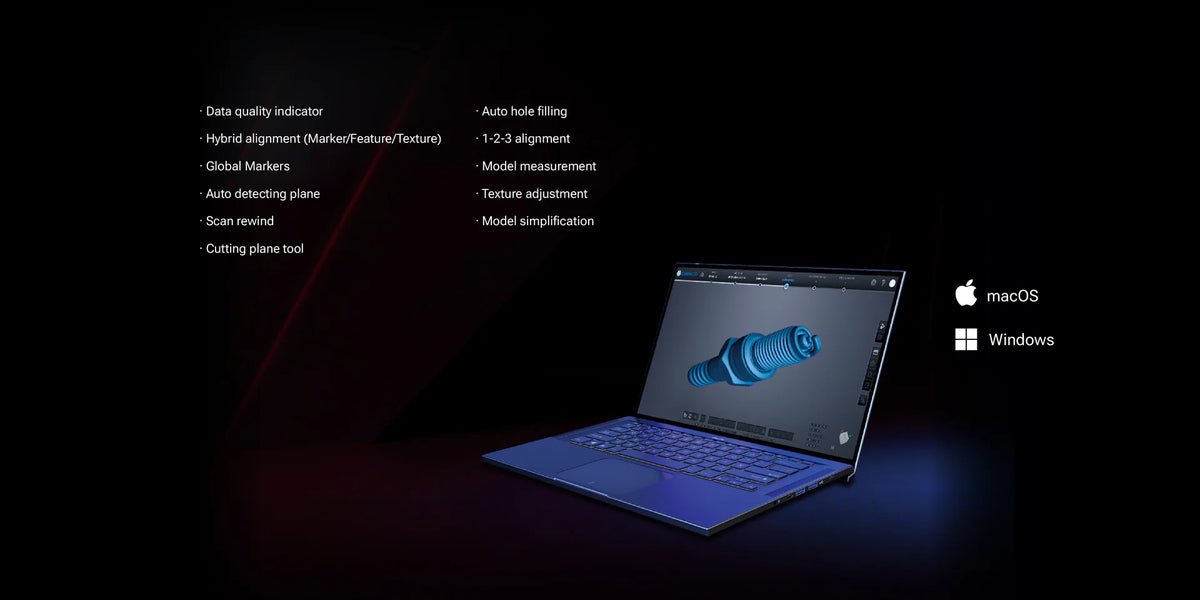

Included EXStar Hub software supports alignment, data-quality review, scan rewind, plane detection, hole filling, measurement, simplification, texture adjustment, and export to STL, OBJ, PLY, 3MF, and ASC.
Select the software, training, and protection needed for the intended workflow. Your choices carry into the recommendation request for technical review.
Configuration
Build the system you need.
Select any optional protection, software, accessories, and training.
Configured total$1,249.00
Core system only
Checkout and quote actions use the same selected configuration.
Package contents
The complete standard system, itemized.
Review the physical system, power and data connections, markers, software access, and documentation before requesting the configuration.
01
EINSTAR 2 Standard Package
Scanner, calibration tools, power components, markers, and carrying protection.
- EINSTAR 2 3D scanner
- Carrying case
- Calibration board
- Universal holder for the calibration board
- Power adapter
- Rechargeable 5500 mAh battery
- Battery compartment
- Battery-compartment charging cable
- Type-C cable for the scanner and battery compartment
- 3 mm and 6 mm reflective markers
- Packing list
- EXStar Hub software download
Confirm the final regional plug type and package components before fulfillment.
Key features
How the system performs in day-to-day use.
Review the features that affect setup time, repeatability, inspection speed, and output quality.
02

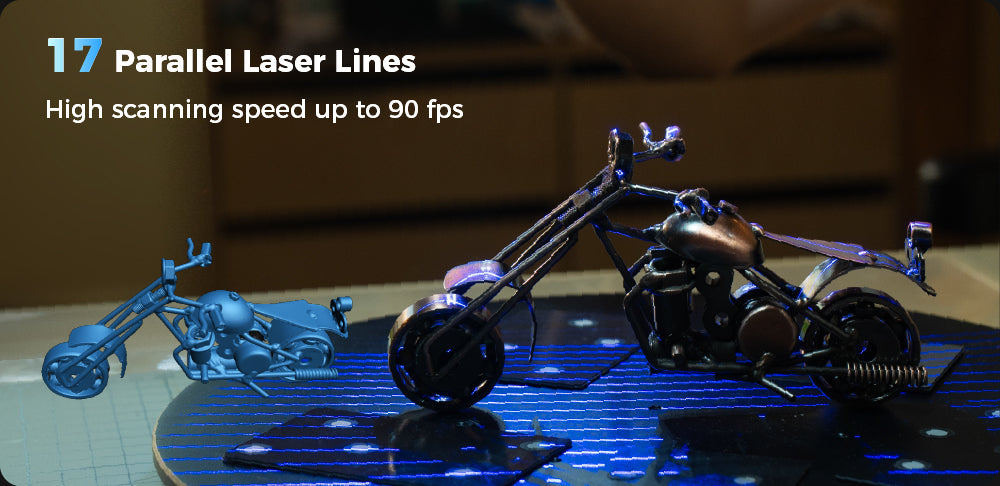

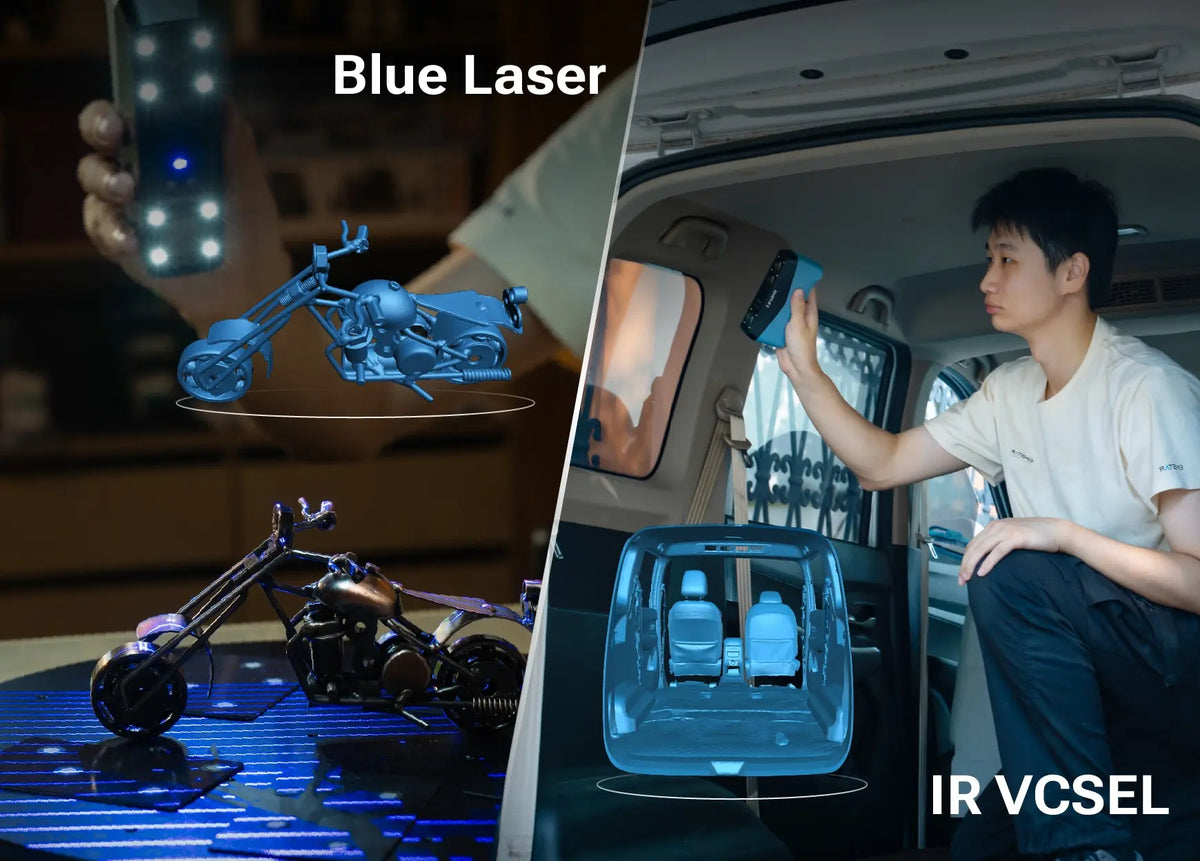

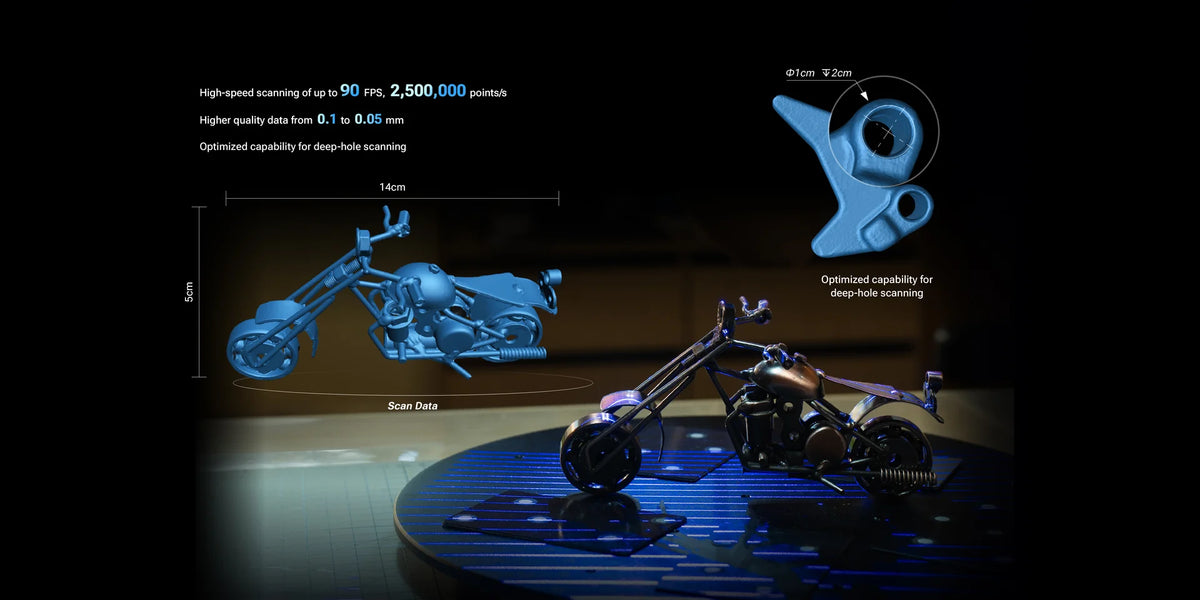

Capture fine detail with 17 parallel blue laser lines in Laser HD mode
03

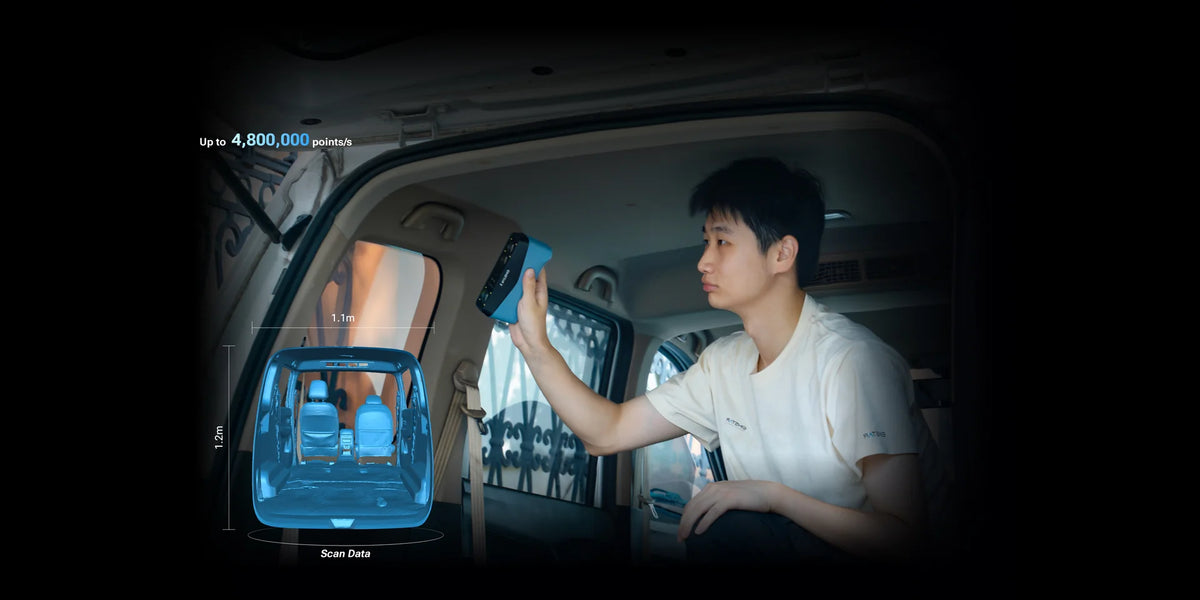

Reach up to 2,500,000 points/s in Laser HD and 4,800,000 points/s in IR Rapid
04

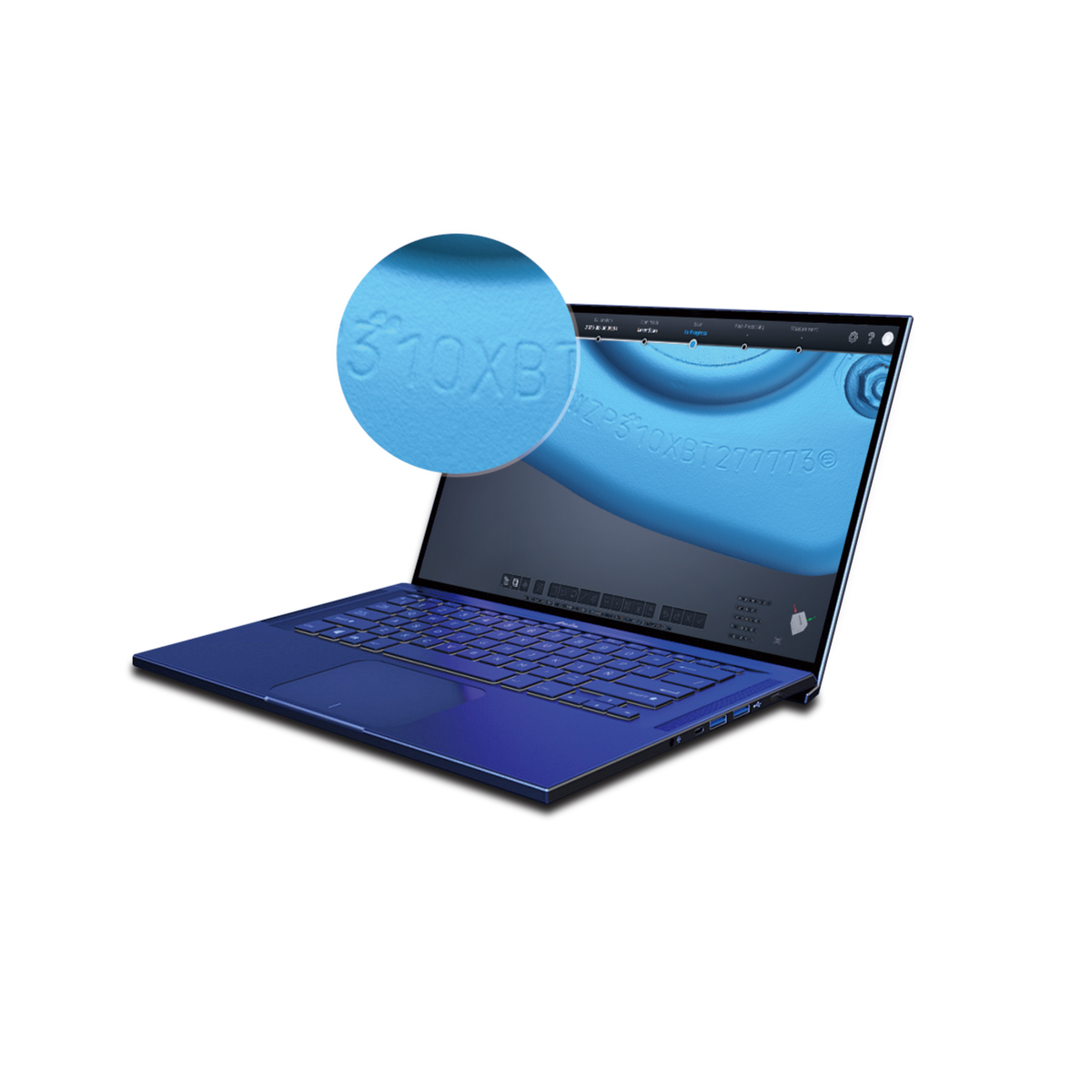

Resolve surface detail down to 0.05 mm in Laser HD
05

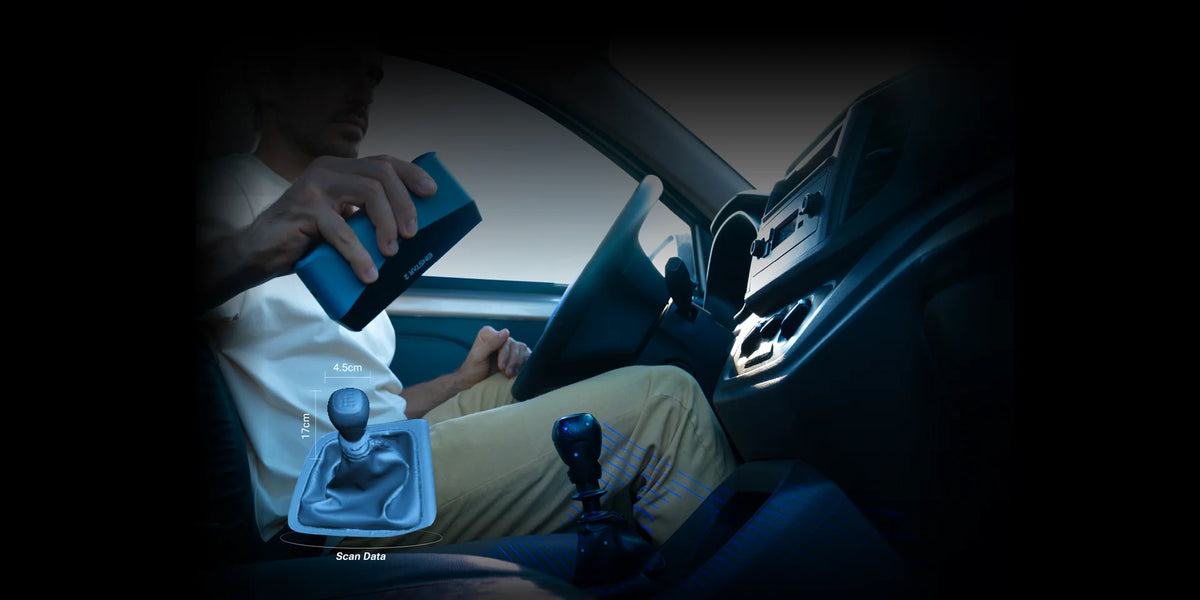

Move from 10 mm-class small objects to large scenes and vehicle interiors
06

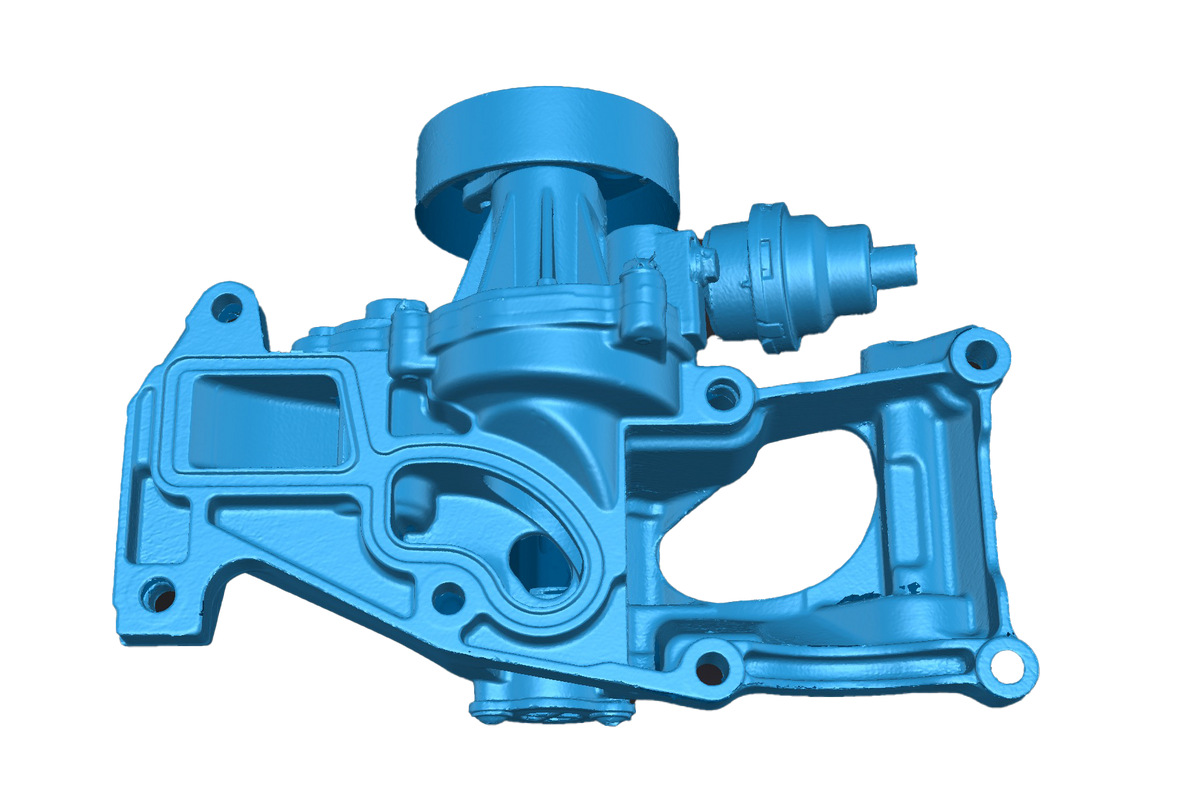

Scan many dark and reflective surfaces without spray, subject to material and environment
07

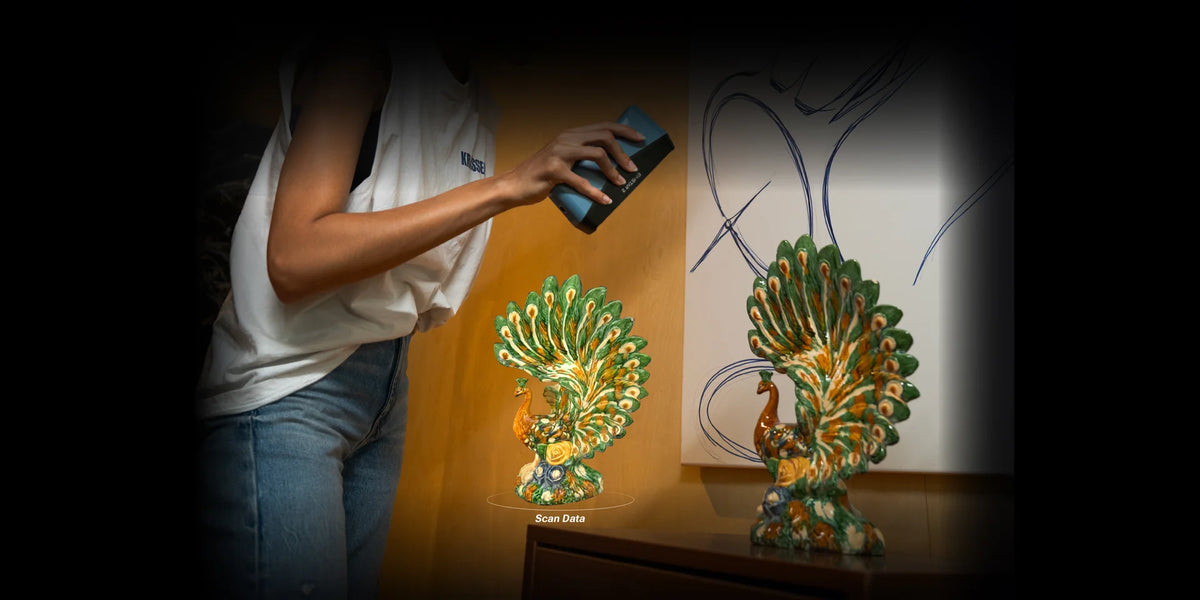

Capture vivid full-color texture with the integrated 2.3 MP camera
08

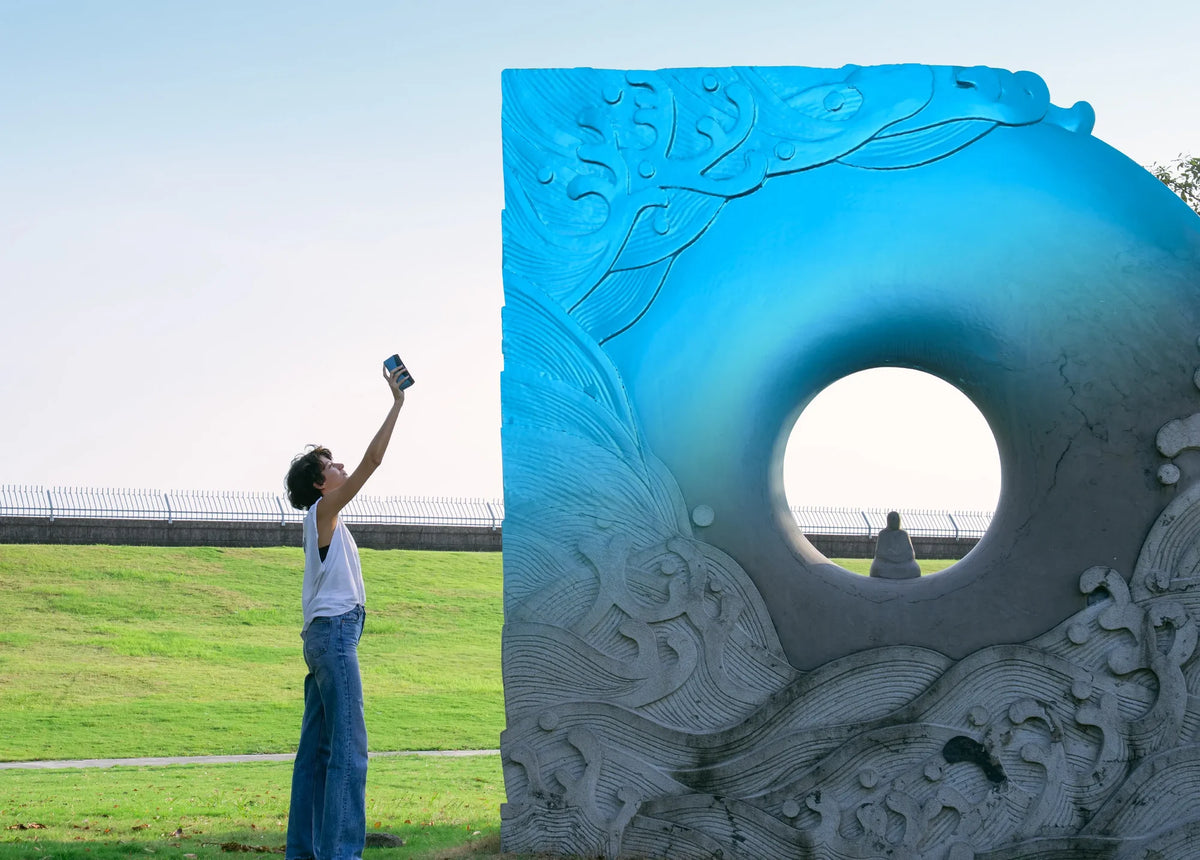

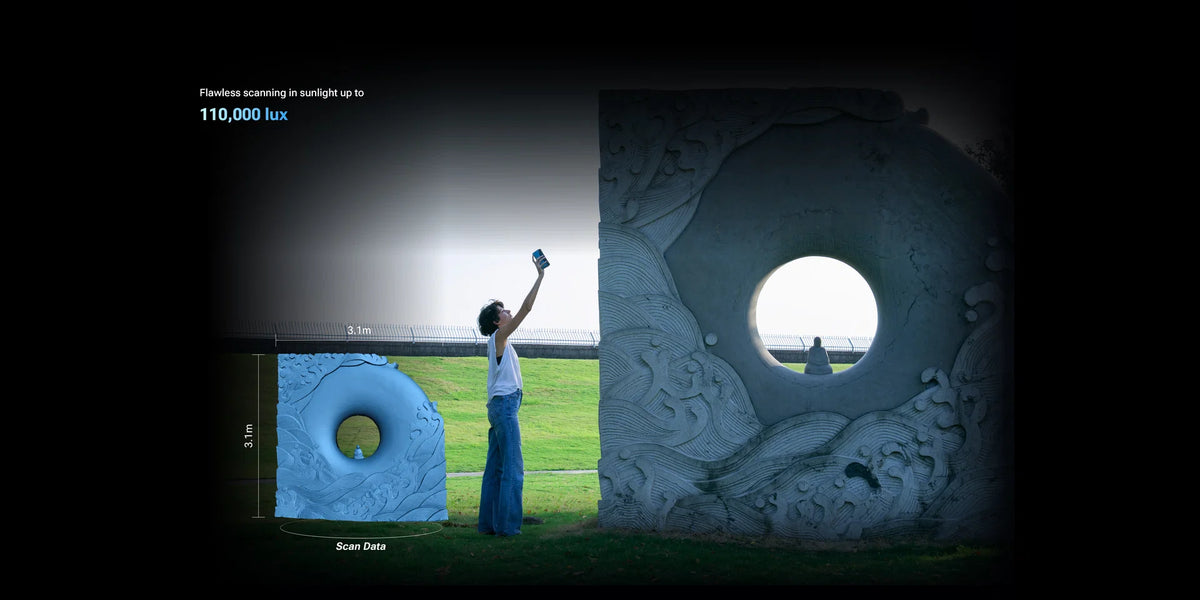

Work outdoors with Laser HD below 110,000 lux and IR Rapid below 70,000 lux
Complete measurement workflow
From automated capture to inspection-ready data.
Follow the workflow from repeatable capture through processing, inspection, and reporting.
Review technical specifications →Application fit
Where this system fits best.
Review the application environments where automation, accuracy, and repeatability create the clearest advantage.
01

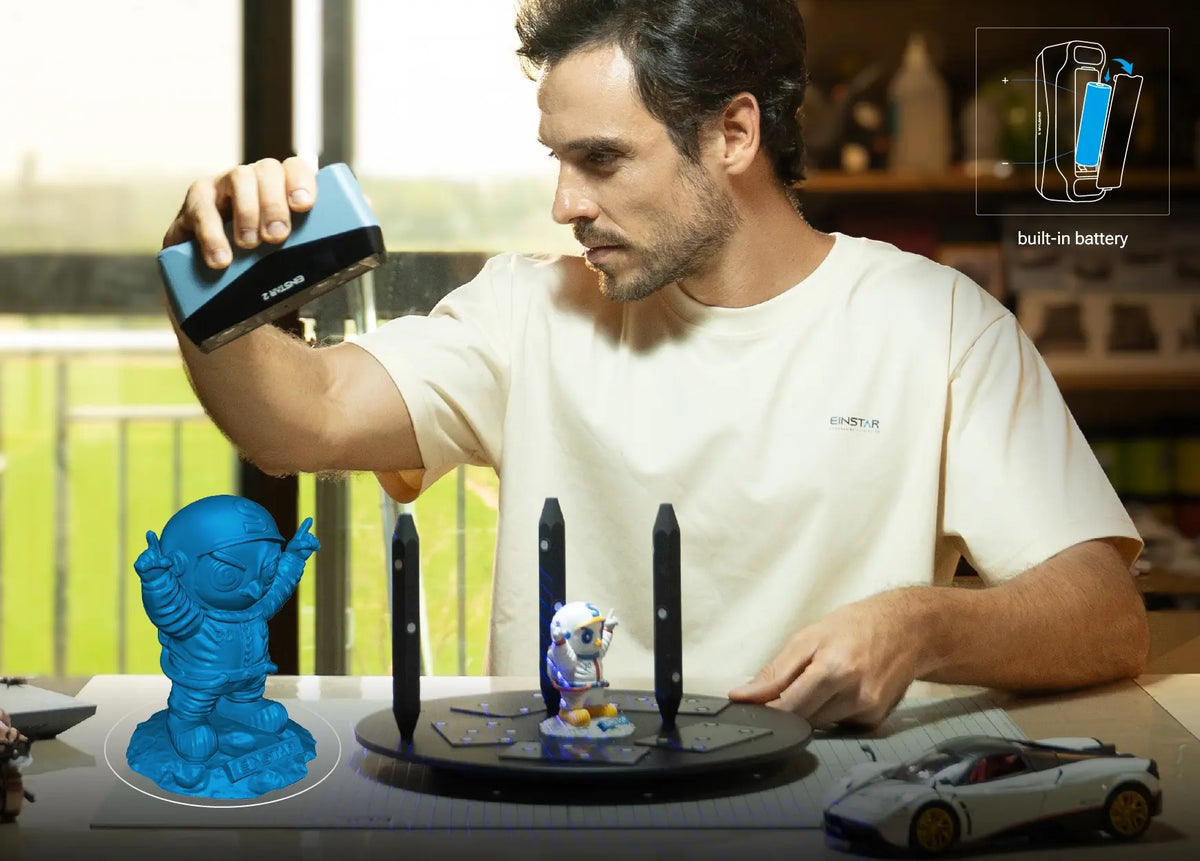

Reverse engineering and product design
02

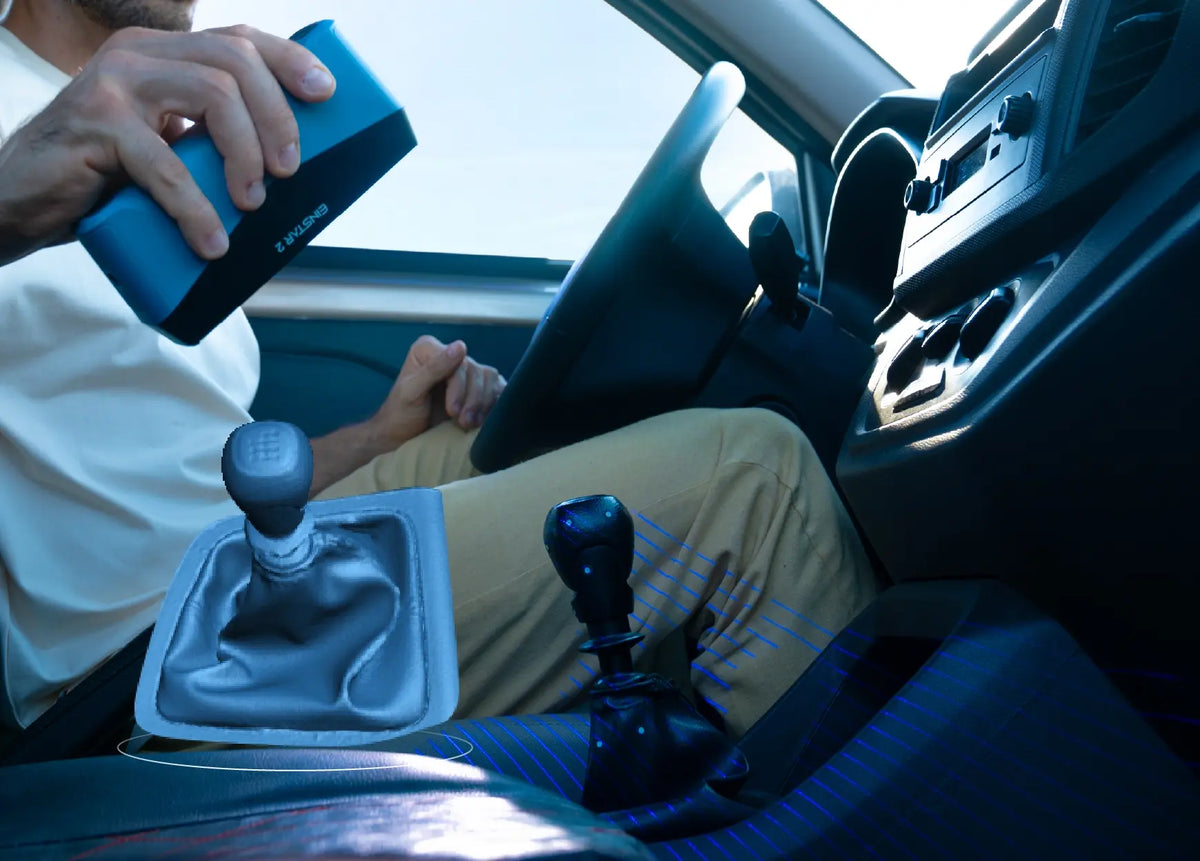

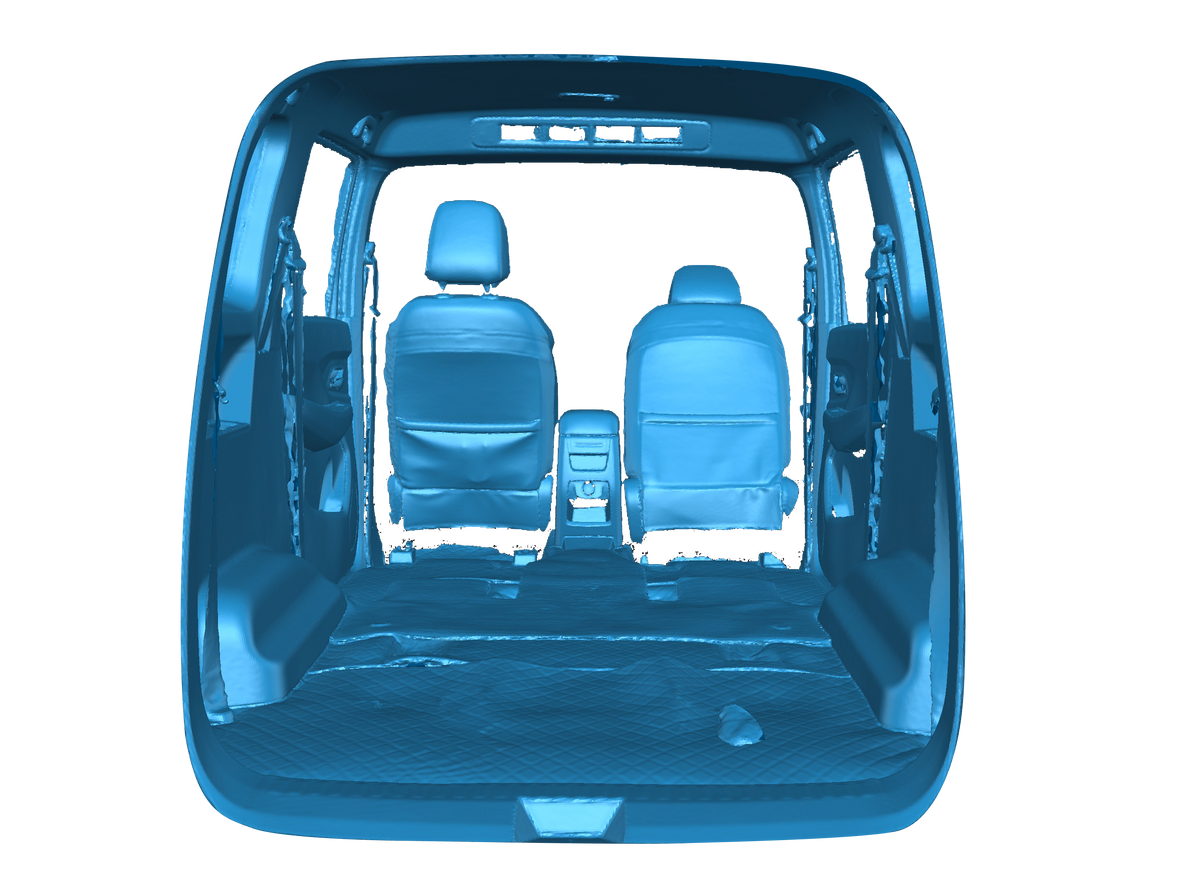

Automotive aftermarket parts and vehicle interiors
03

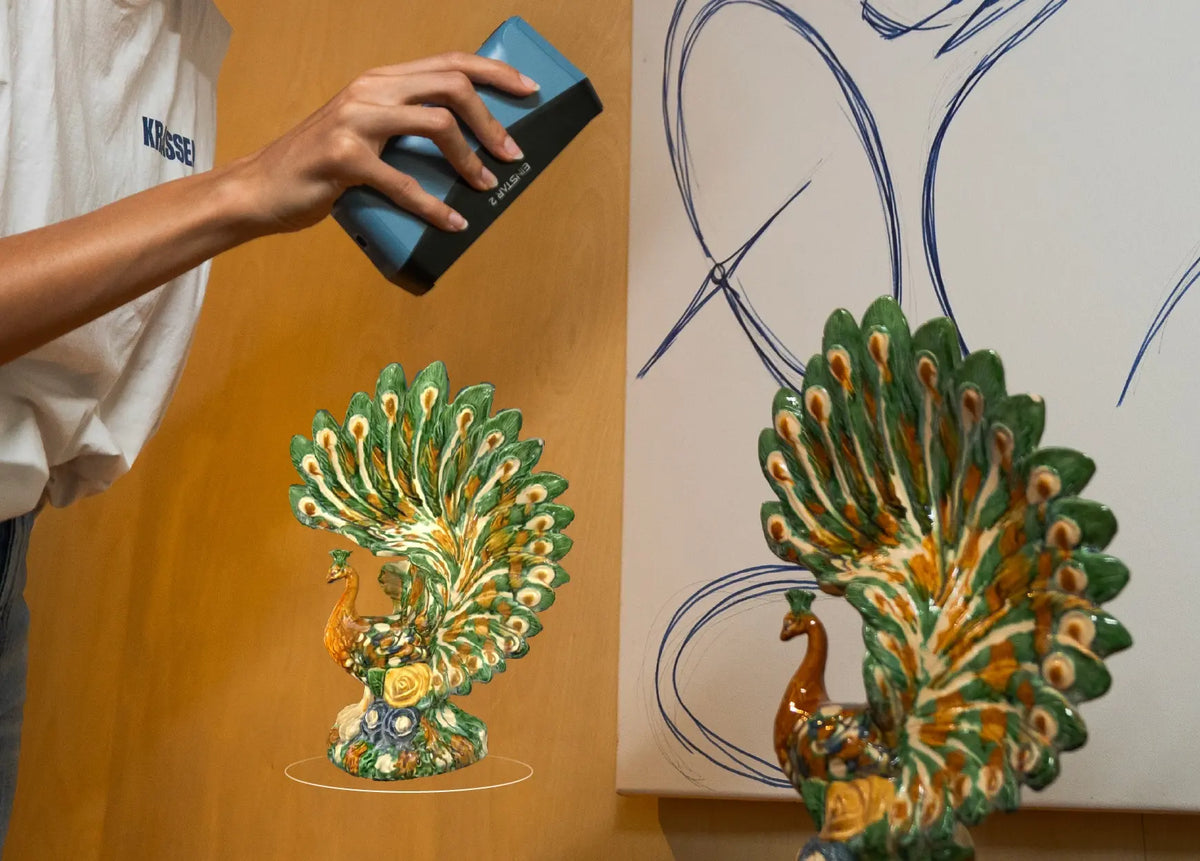

3D printing and personal manufacturing
04
Digital art, sculpture, and cultural heritage
Product media
Inspect the equipment and included system visually.
Product detail
Examine the system from every angle.
Review the scanner, turntable, accessories, interfaces, and physical setup before selecting a configuration.
Video library
Watch real scanning and inspection workflows.
Use the case studies, demonstrations, and tutorials to review the workflow from capture through final output.
Video library
Select a video to begin
Watch demonstrations, tutorials, and real application workflows without leaving the product page.
Technical specifications
Check the specifications before purchase.
Confirm accuracy, field of view, point distance, capture system, outputs, standards, and workstation requirements.
Scan modesLaser HD and IR Rapid
Laser HD light source17 parallel blue laser lines
IR Rapid light sourceInfrared VCSEL
Laser HD resolution0.05–10 mm
IR Rapid resolution0.2–10 mm
Laser HD scanning speedUp to 2,500,000 points/s
IR Rapid scanning speedUp to 4,800,000 points/s
Laser HD working distance100–600 mm
IR Rapid working distance160–1400 mm
Laser HD maximum field of view490 × 580 mm
IR Rapid maximum field of view1170 × 1385 mm
Laser HD alignmentGlobal marker and markers
IR Rapid alignmentGlobal marker, markers, features, texture, and hybrid
Minimum scan volumeLaser HD: 10 × 10 × 10 mm; IR Rapid: 50 × 50 × 50 mm
3D cameras2 MP × 2
Texture camera2.3 MP
Output formatsSTL, OBJ, PLY, 3MF, and ASC
Laser classClass 2
Outdoor illuminanceLaser HD: below 110,000 lux; IR Rapid: below 70,000 lux
Operating temperature-10–40 °C
InterfaceUSB Type-C
Wireless connectionBuilt-in Wi-Fi connection to a PC
BatterySwappable 5500 mAh rechargeable battery; up to 3 hours runtime
ChargingSupports 60 W USB-C PD 3.0 charger

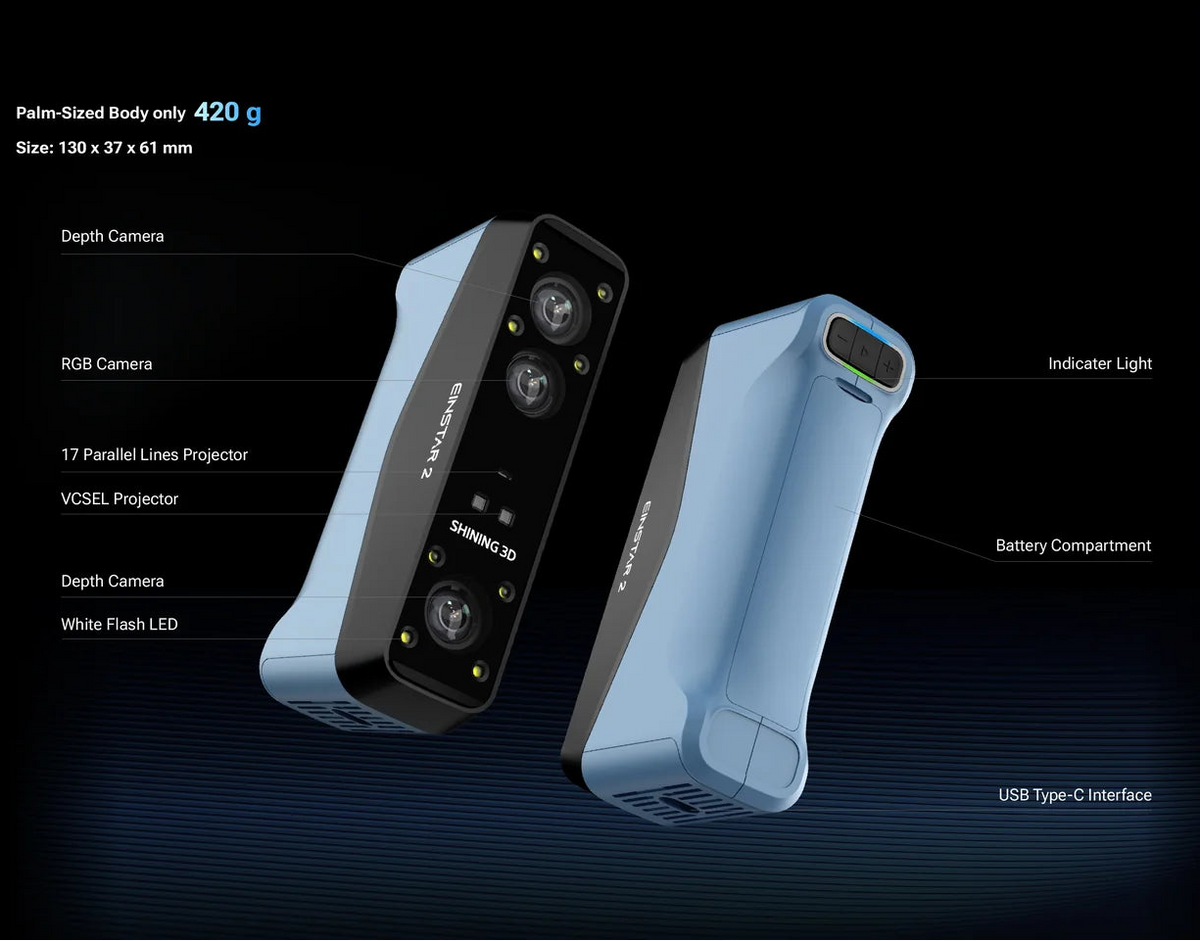

Dimensions130 × 37 × 61 mm
Net weight420 g with battery; 348 g without battery
CertificationsCE, FCC, RoHS, WEEE, FDA, SRRC, and IP50
Included scanning softwareEXStar Hub
| Component | Minimum | Recommended |
|---|---|---|
| Windows operating system | Windows 11 Professional 22H2, 64-bit | Windows 11 Professional 22H2, 64-bit |
| Processor | 13th Gen Intel Core i7-13700H or above | 13th Gen Intel Core i7-13700H or above |
| Graphics | NVIDIA GeForce RTX 3060 Laptop GPU or above | NVIDIA GeForce RTX 3060 Laptop GPU or above |
| Video memory | 6 GB | 6 GB or more |
| System memory | 32 GB DDR5 dual-channel | 64 GB or more DDR5 dual-channel |
| Computer interface | USB 3.0 | USB 3.0 or built-in Wi-Fi connection |
| macOS | macOS Tahoe 26.2; MacBook Pro M1 or Mac M3 and above; 16 GB RAM | macOS Tahoe 26.2; MacBook Pro M3 Max or Ultra and above; 24 GB RAM or more |
The manufacturer specifies a high-performance workstation for EINSTAR 2. Confirm EXStar Hub compatibility with the exact computer and operating-system version before purchase.
Interactive results
Review scanned models.
Select a model to load the interactive viewer, or open it directly on Sketchfab.
Optional interactive preview
Motorcycle tool
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Optional interactive preview
Ceramic peacock
The viewer loads only when requested, reducing memory use on mobile and lower-powered devices.
Models published by Shining 3D on Sketchfab. Use the direct link if the embedded viewer exceeds the device's graphics capacity.
Next step
Buy your selected configuration or request a quote.
Choose the core system and compatible software, training, add-ons, and protection, then either check out with the full selection or send it for technical review.
